Home >> Jeep >> 2000 >> Cherokee 2WD L4-2.5L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views

Connector Views

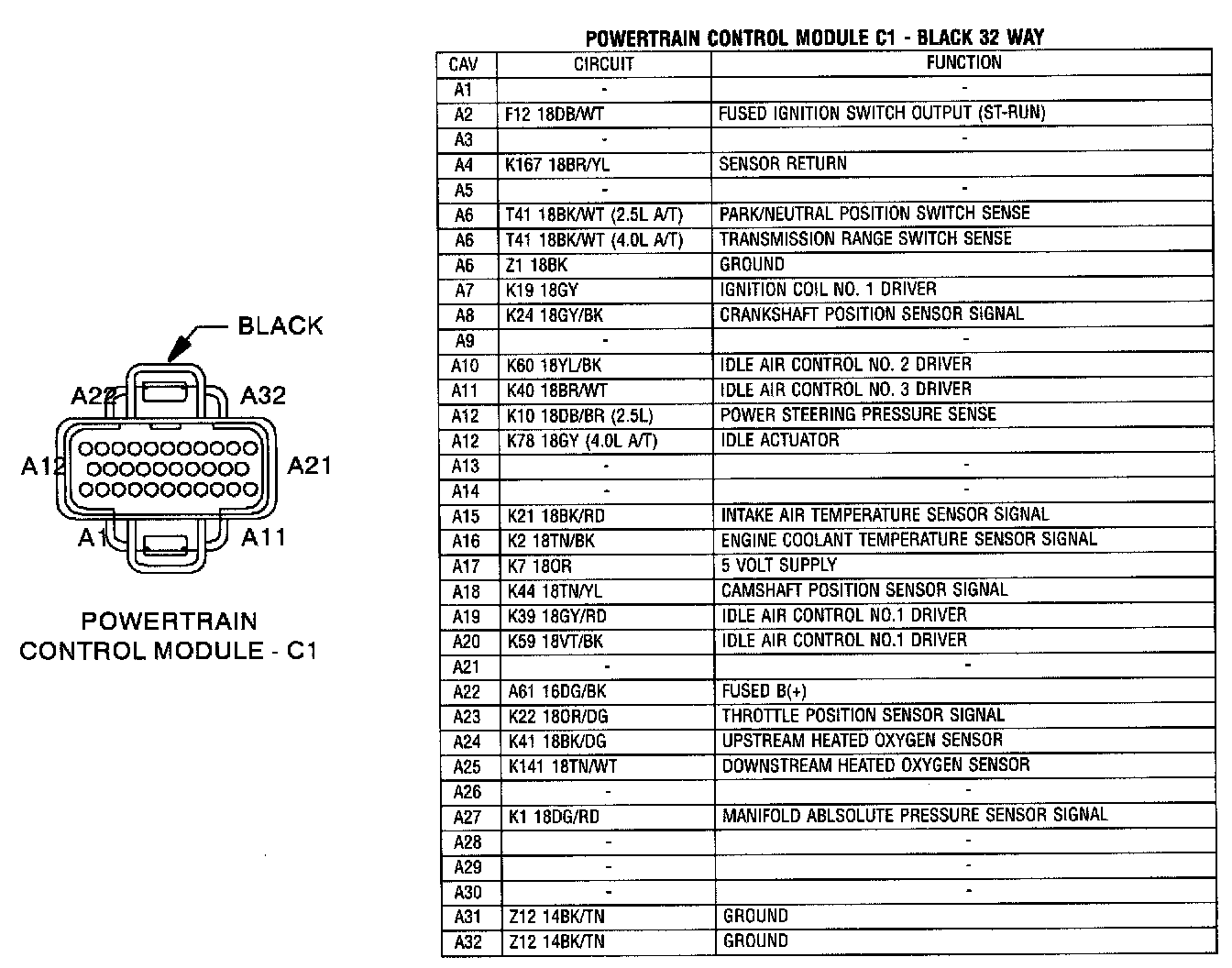

Powertrain Control Module - C1:

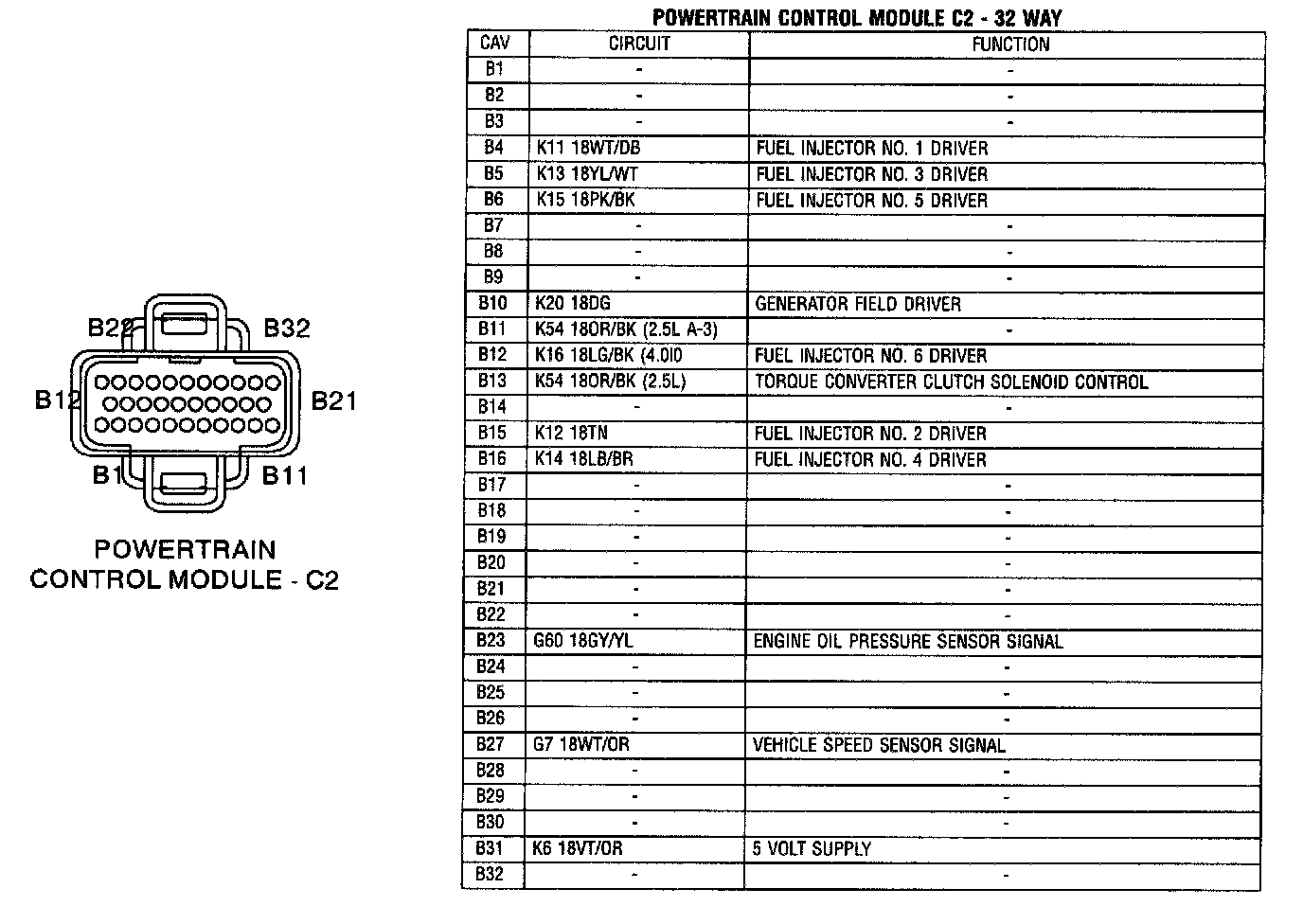

Powertrain Control Module - C2:

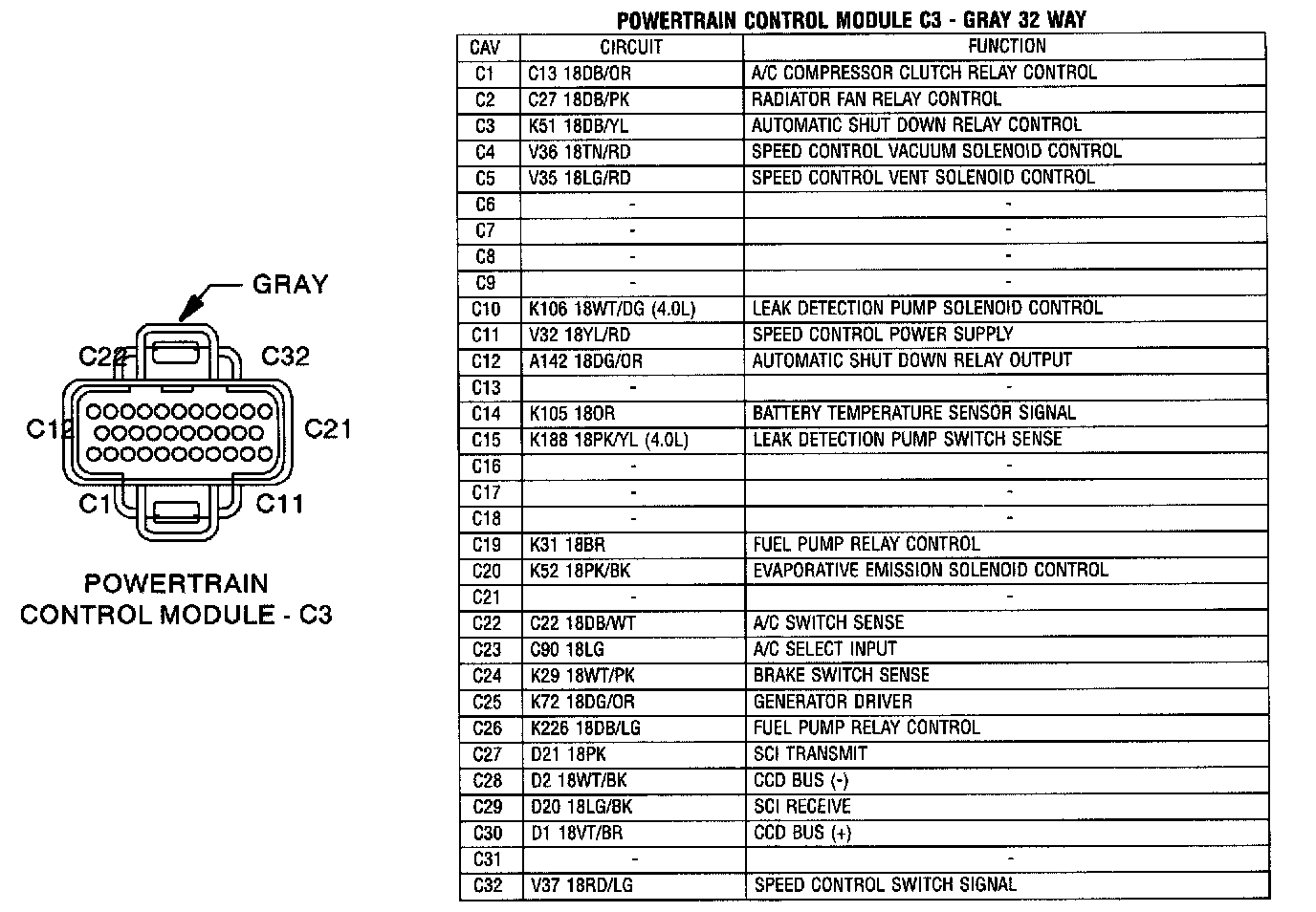

Powertrain Control Module - C3:
