Home
>>
Jeep
>>
2000
>>
Cherokee 2WD L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

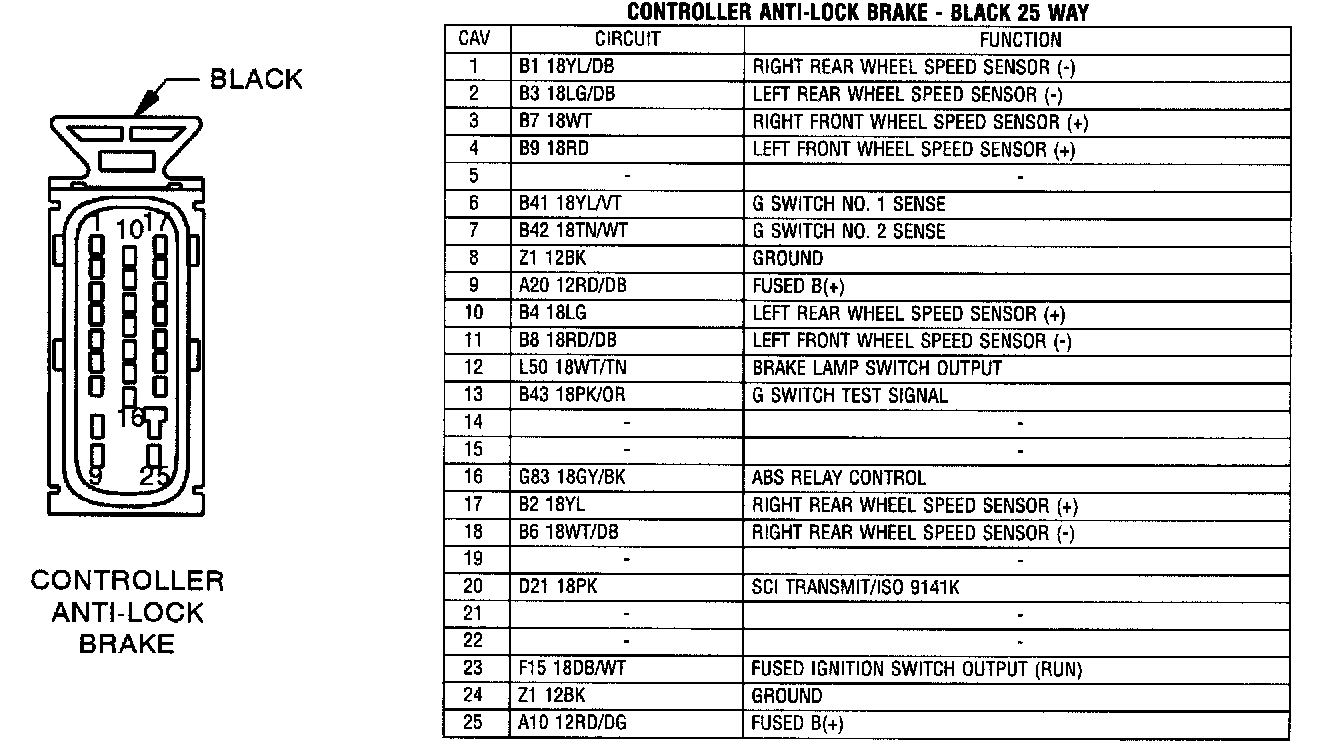

Electronic Brake Control Module
Electronic Brake Control Module
Connector Pin Locations:
