Ignition ECU

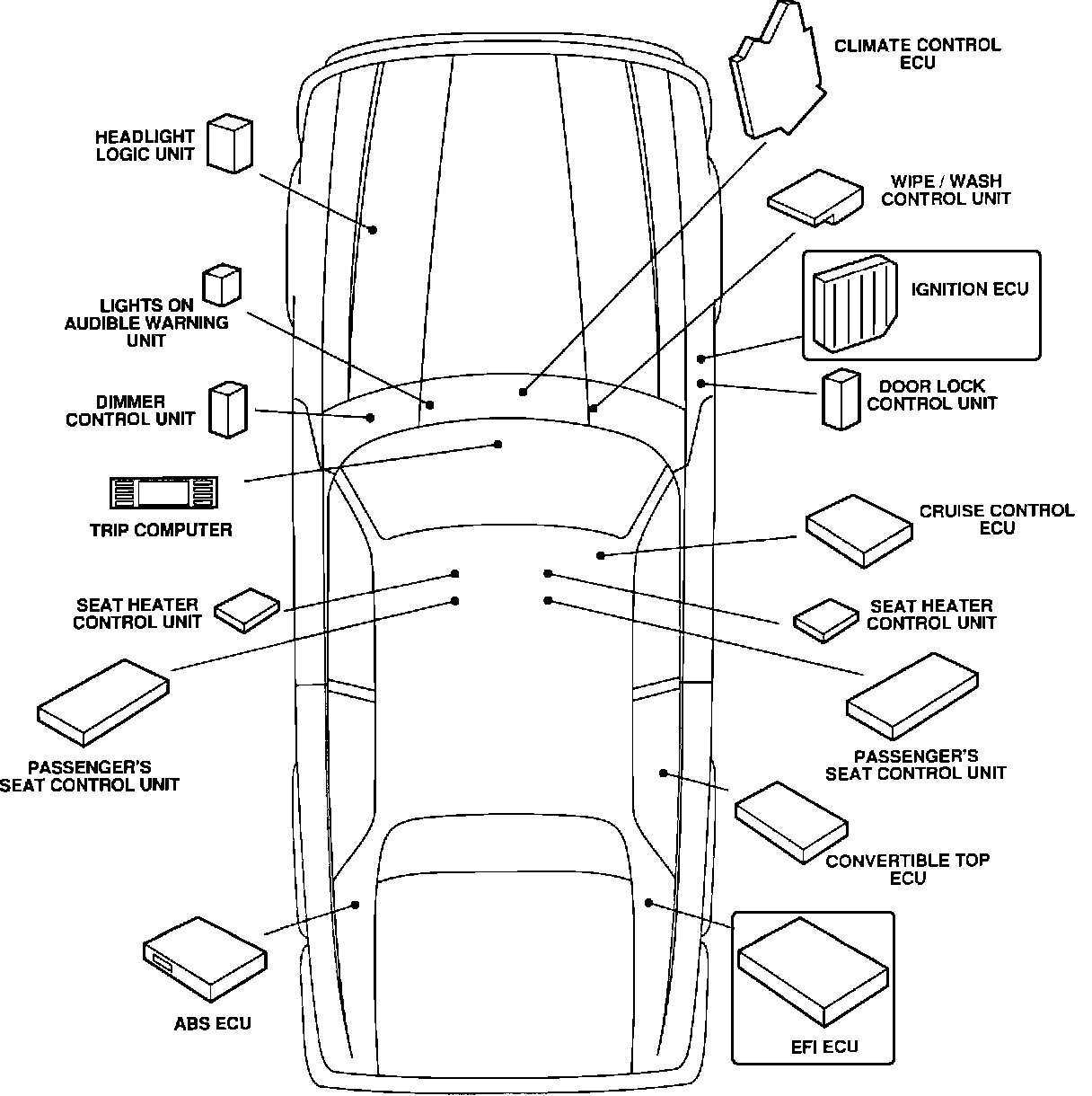

Control Unit Locations:






Ignition module is behind carpeting and a bolt-on cover beneath passenger side dash.

Fuel Injection module is located in trunk.
