Spark Plug: Adjustments

1. Remove spark plugs. Refer to Powertrain Management/Ignition System/Spark Plug/Service and Repair.
2. Clean or replace plugs as needed.

Checking Spark Plug For Wear, Damage, Or Deposits:

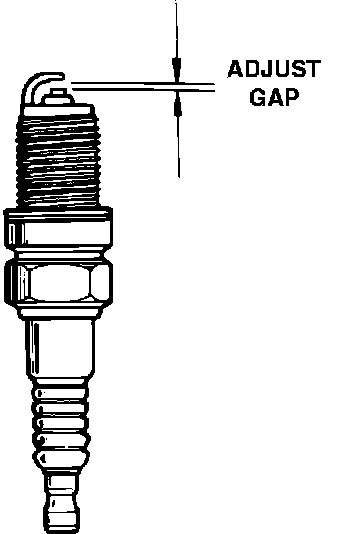

3. Set plug gap to:

0.035 in (0.9 MM)

4. Refit plugs and torque to:

17-20 lbft (23-28 Nm)
