Oscilloscope Patterns and Waveforms

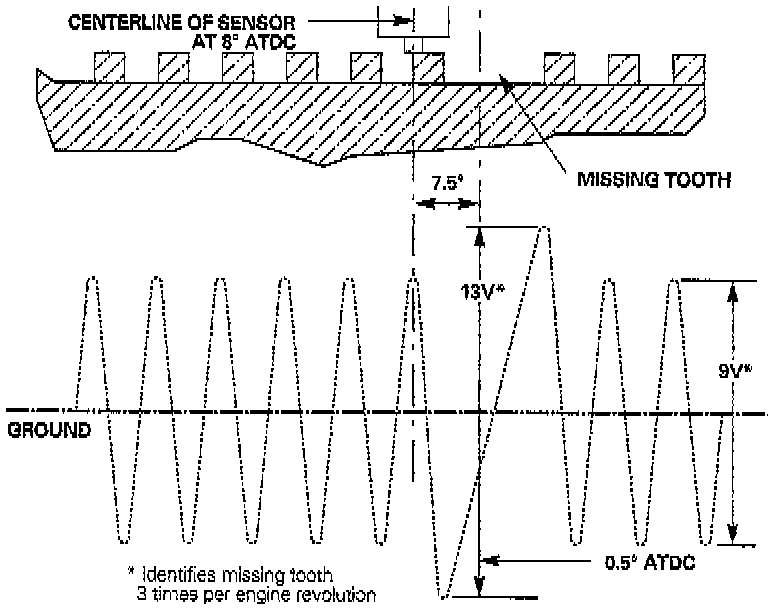

Crankshaft Sensor Signal:

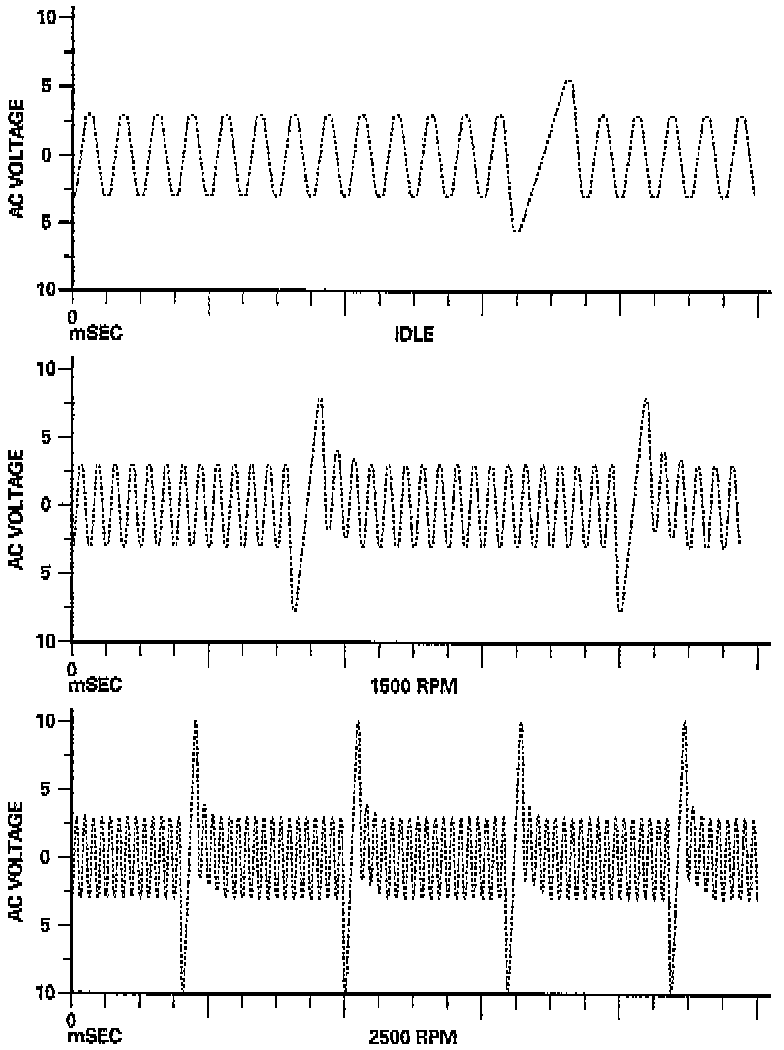

Crankshaft Sensor Signal At Various Engine Speeds:
