Coolant Temperature Sensor/Switch (For Computer): Service and Repair

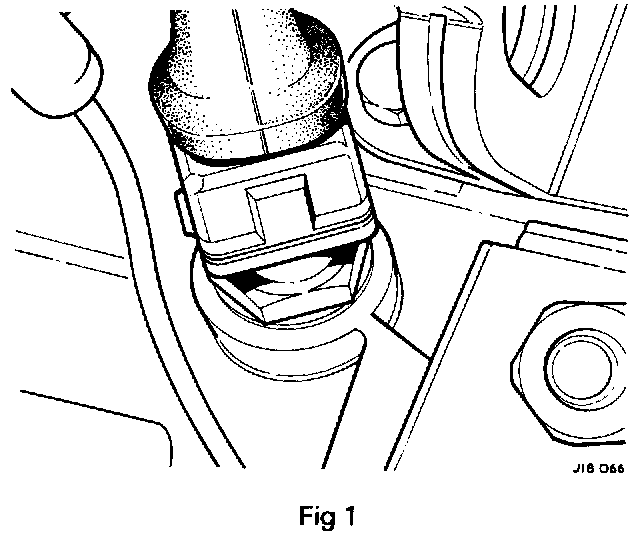

COOLANT TEMPERATURE SENSOR

RENEW





Open the bonnet. Depressurize the coolant system by SLOWLY AND CAREFULLY opening and closing the coolant filler cap.

Disconnect the sensor multi-plug connector.

Remove the sensor.

Ensure that the sensor location is clean and grease free.

Fit and tighten the new sensor.

Refit the multi-plug.
