Mode Control Vacuum Switch

Mode Control Vacuum Switch

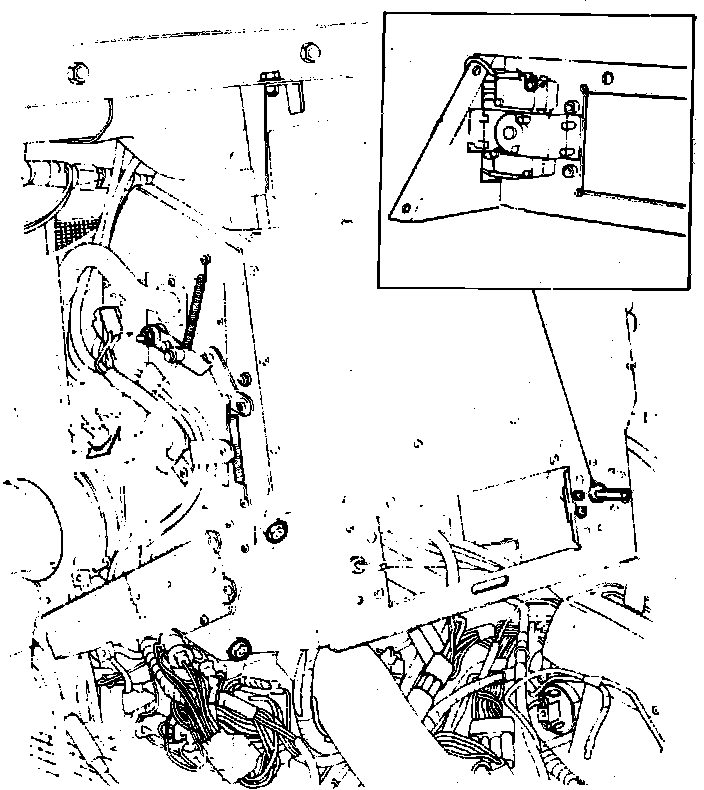

Mode Control Switch:

Testing: Check for vacuum supply from vacuum source. If available, bypass switch and observe operation of screen outlet flaps.

These should open - lower heater flap should close. Supply pipe color code = White - Green to screen flaps.
