Timing Component Alignment Marks: Locations
-

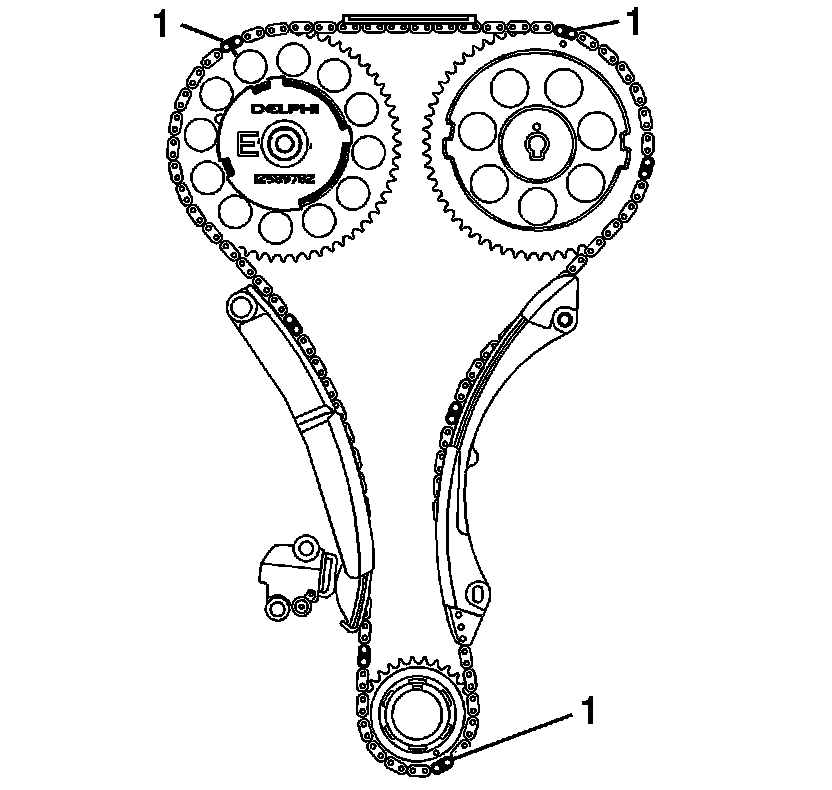

The dark links (1) on the chain should be aligned with marks on sprockets as shown.
