Air Bag Control Module

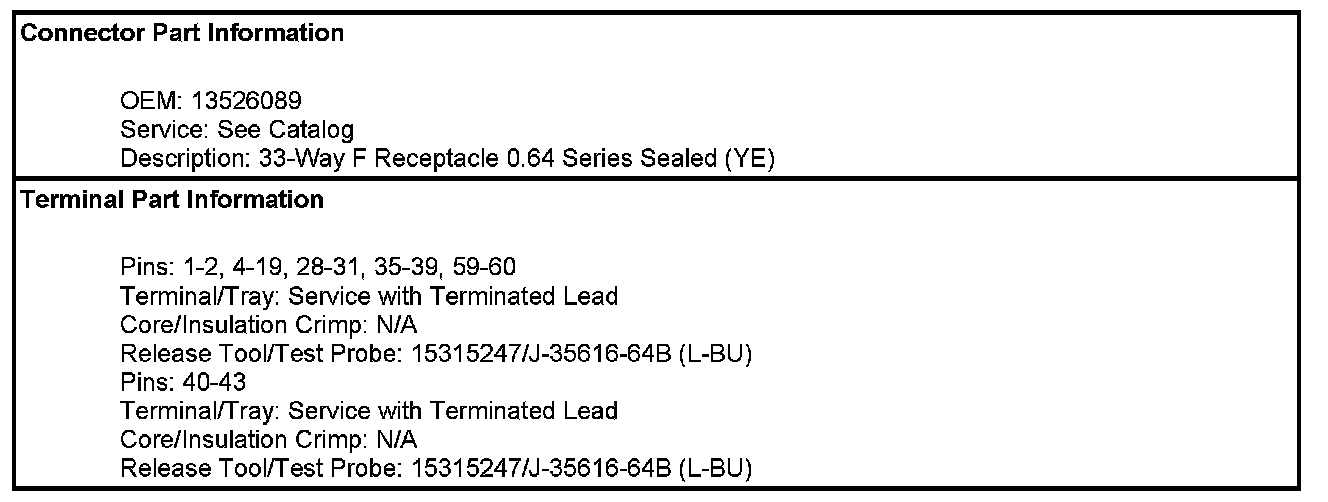

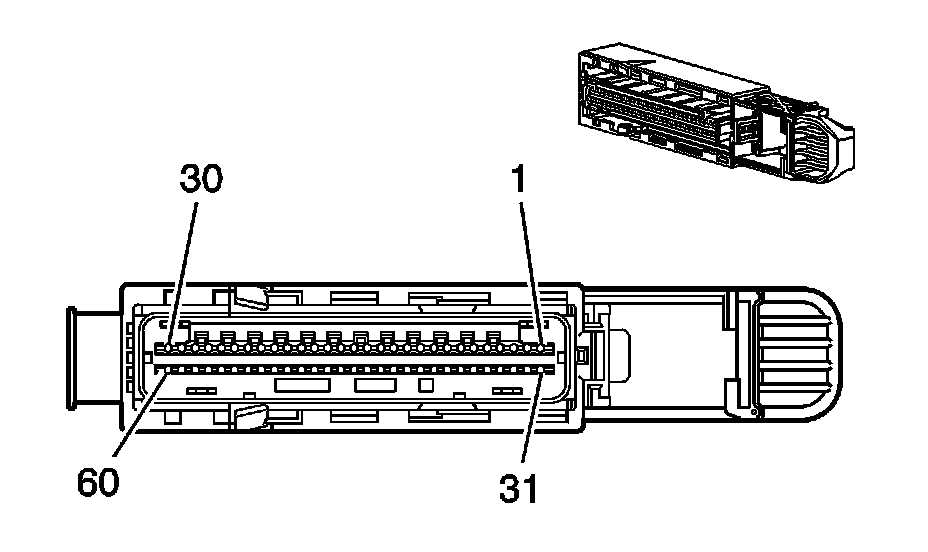

Component Connector End Views - Continued

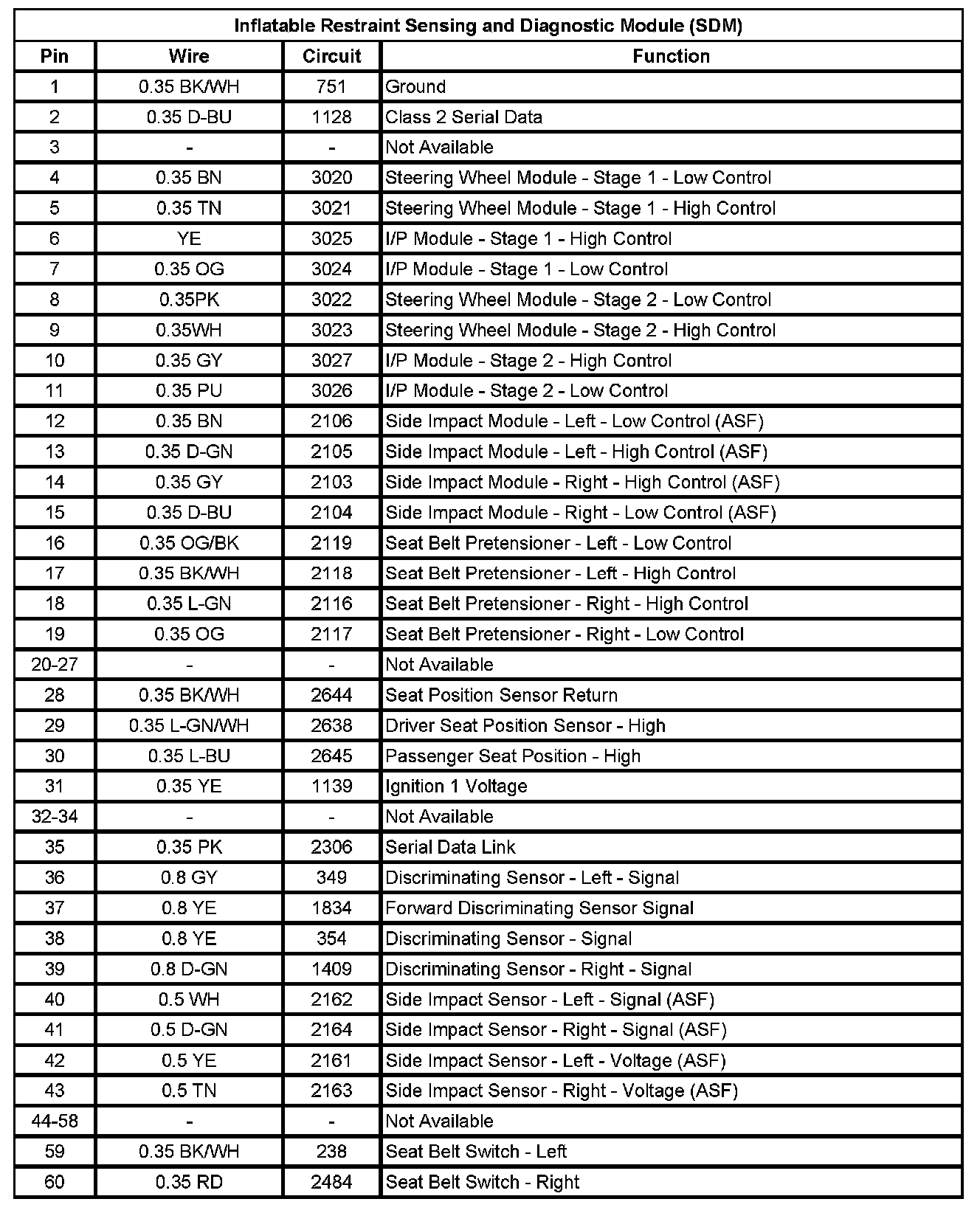

Inflatable Restraint Sensing and Diagnostic Module (SDM)
