Master Electrical Component List

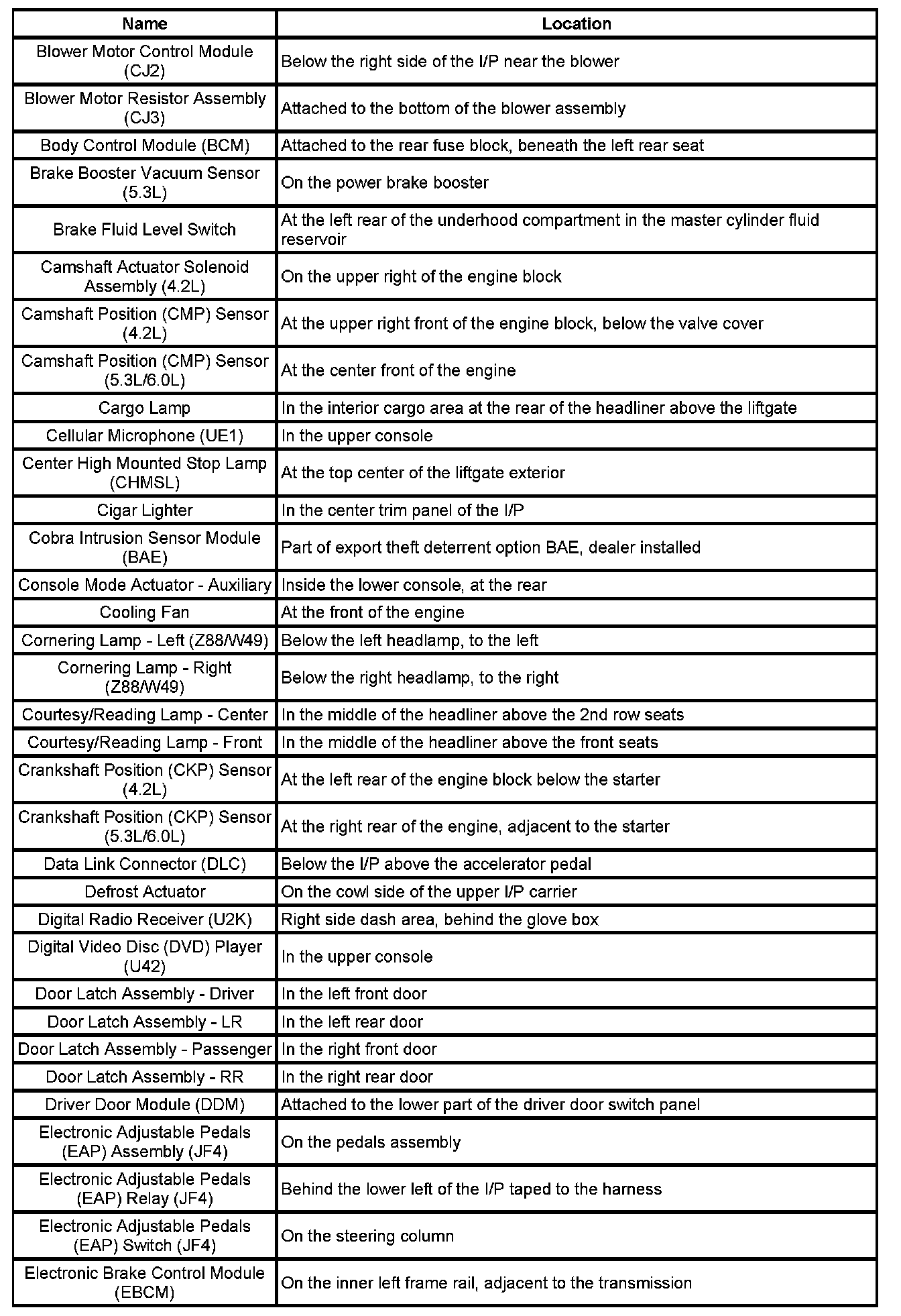

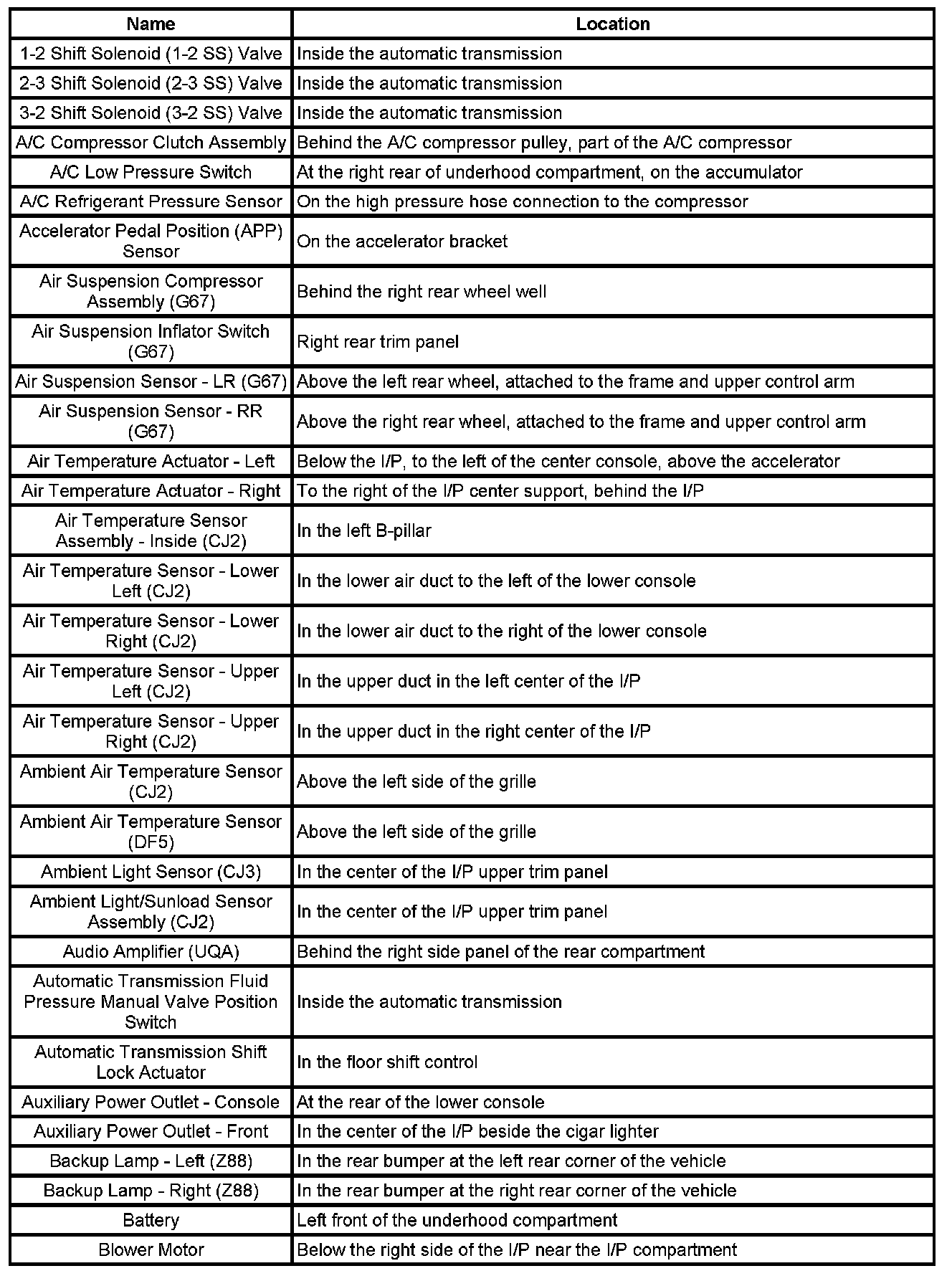

1-2 Sh - Bl:

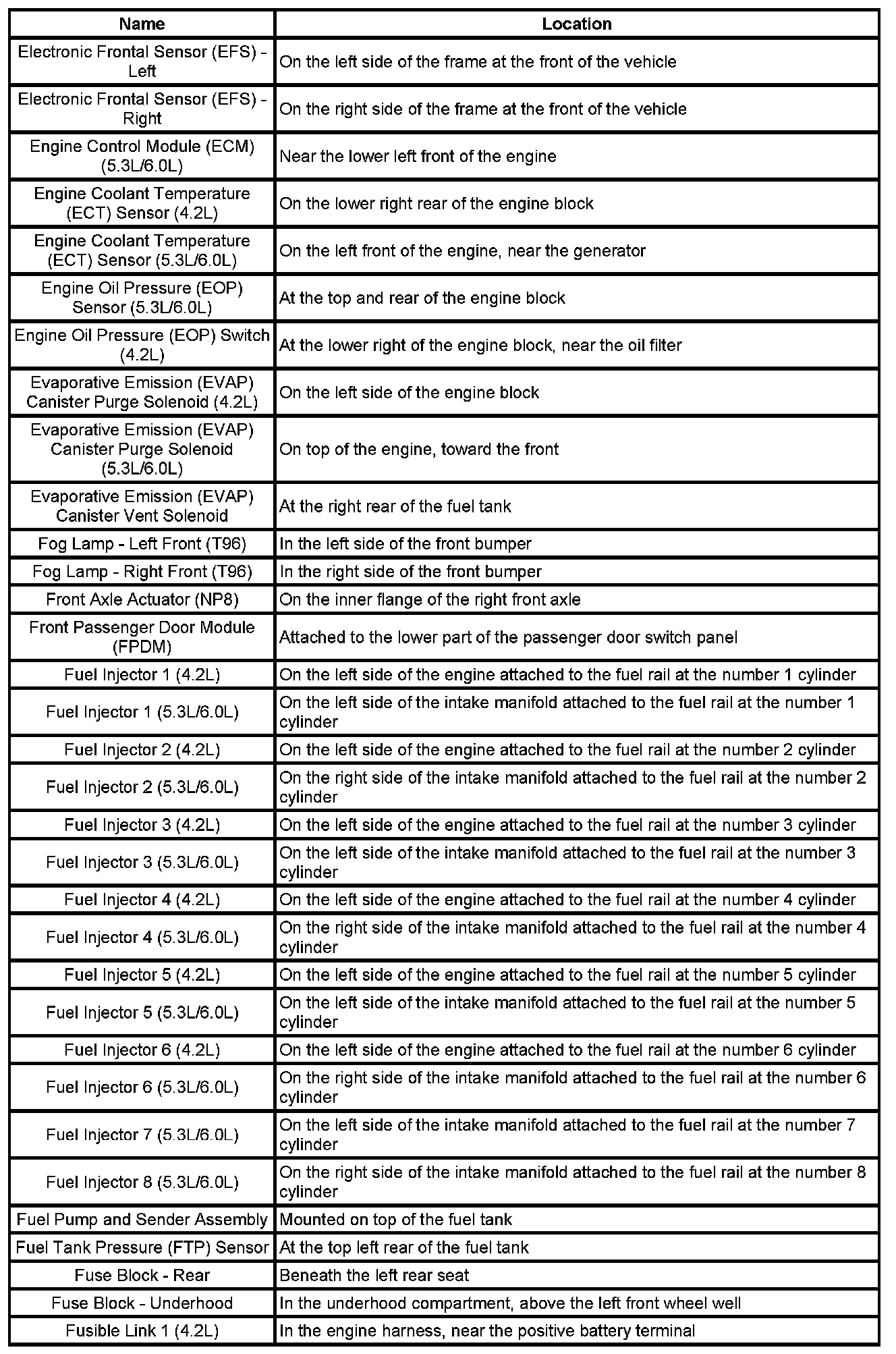

Bl - El:
El - Fu:

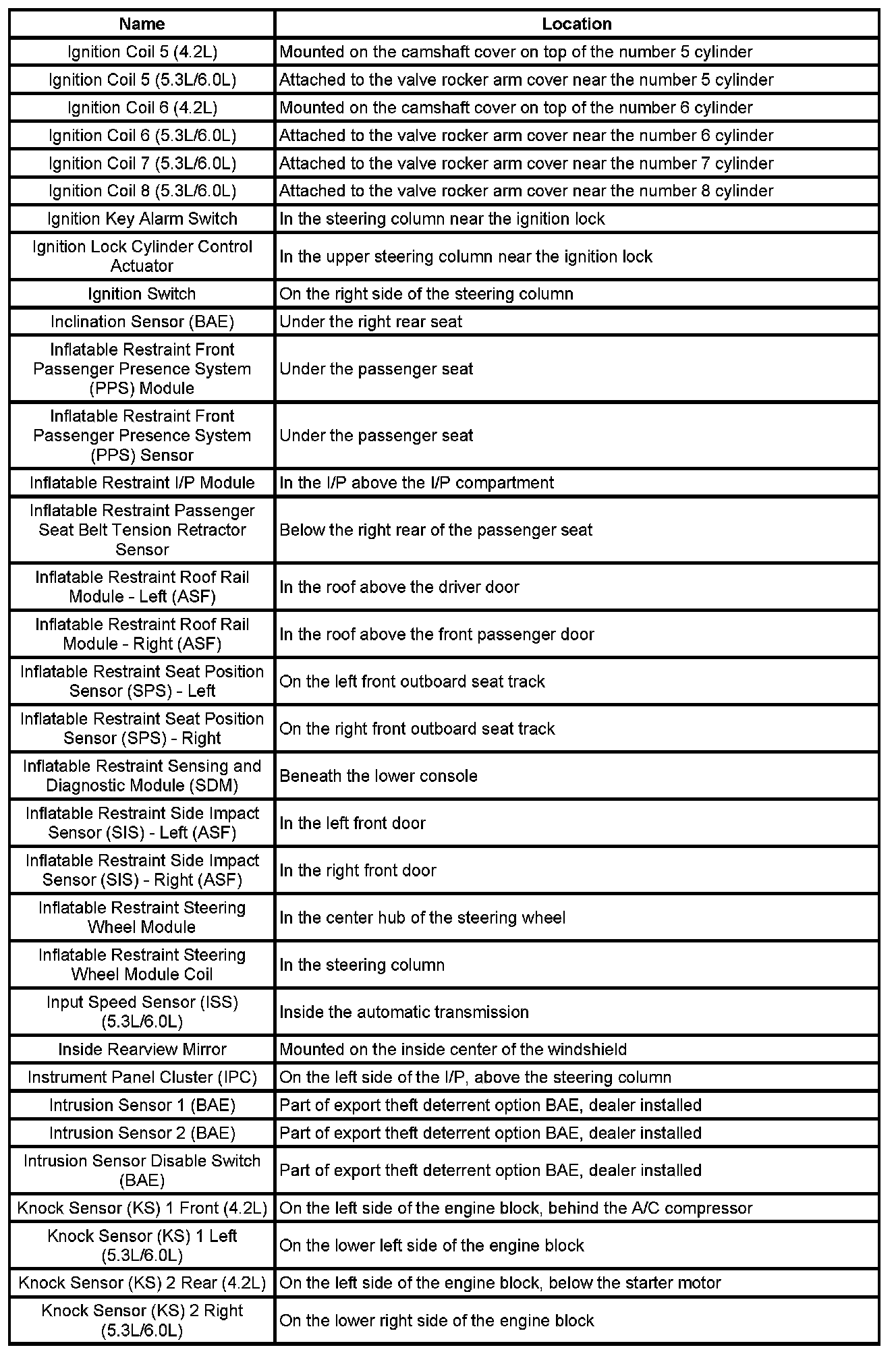

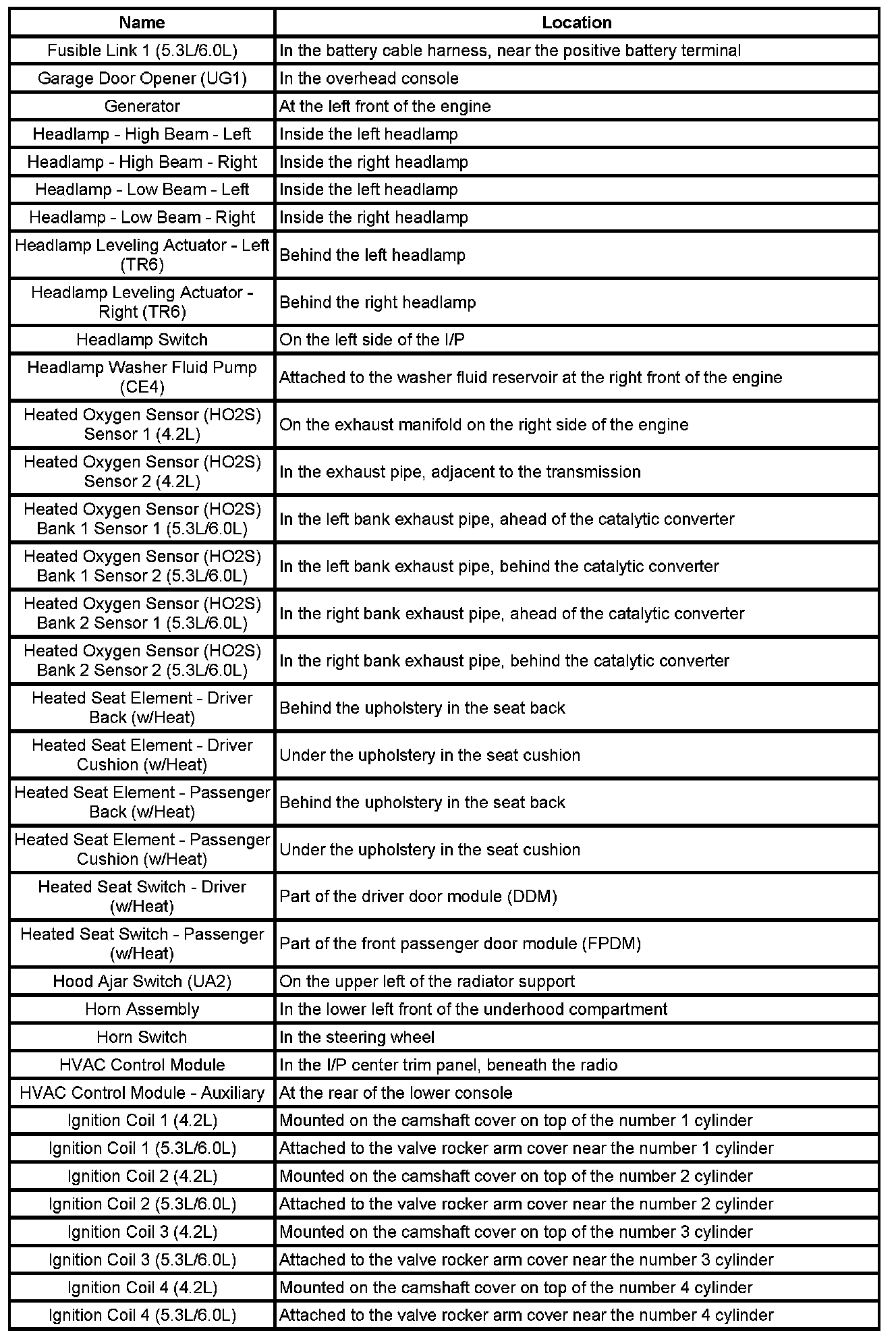

Fu - Ig:
Ig - Kn:

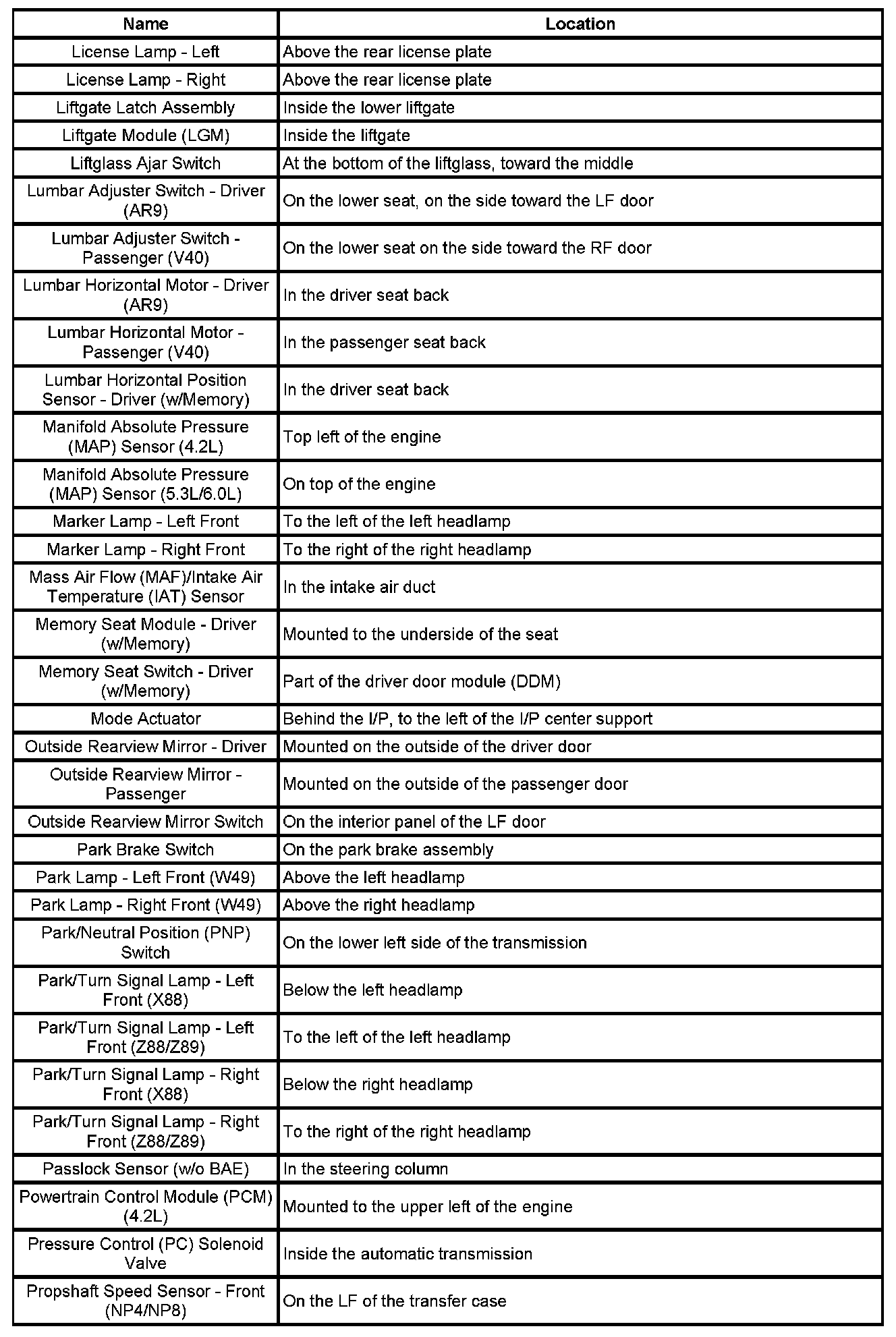

Li - Pr:

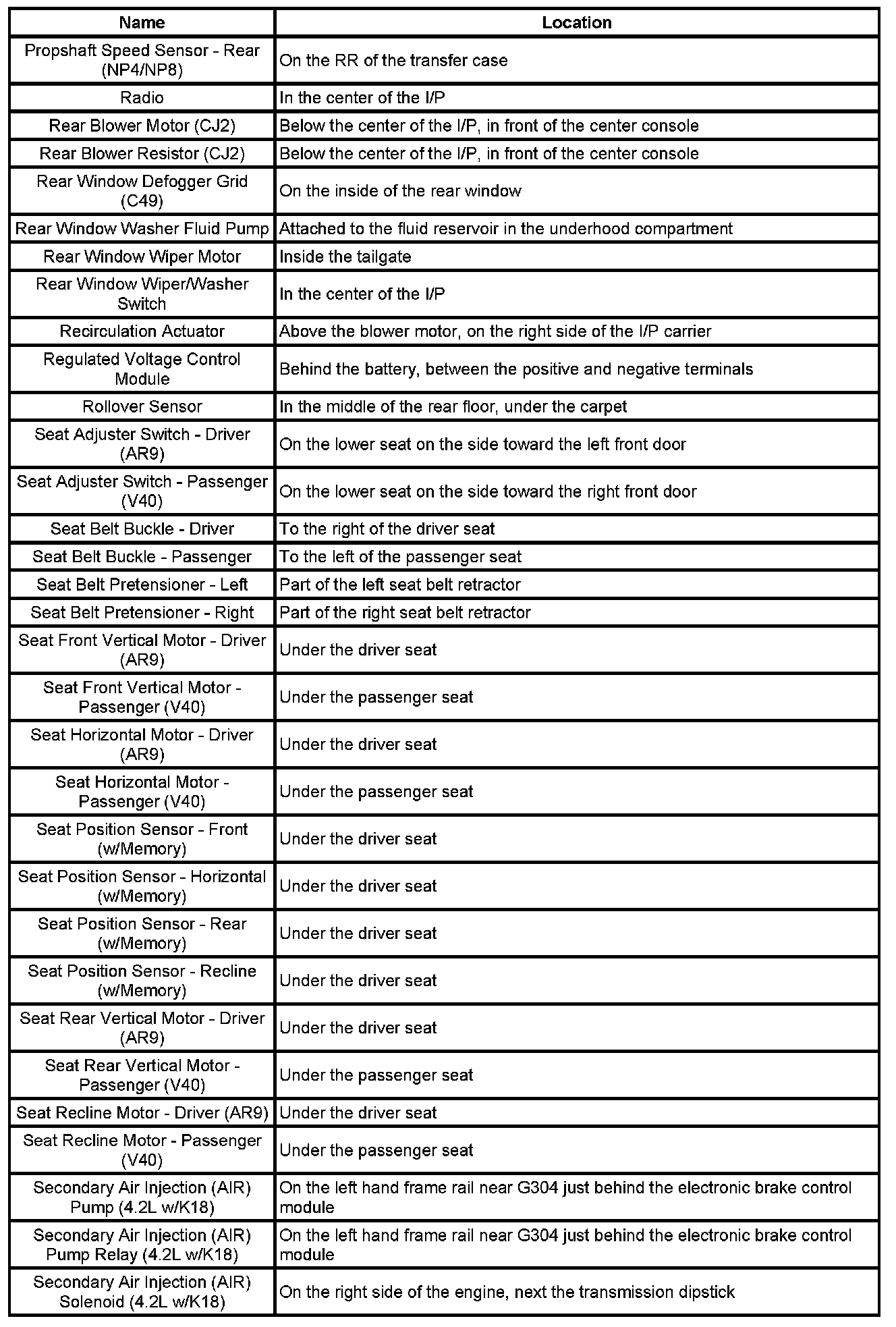

Pr - Se:

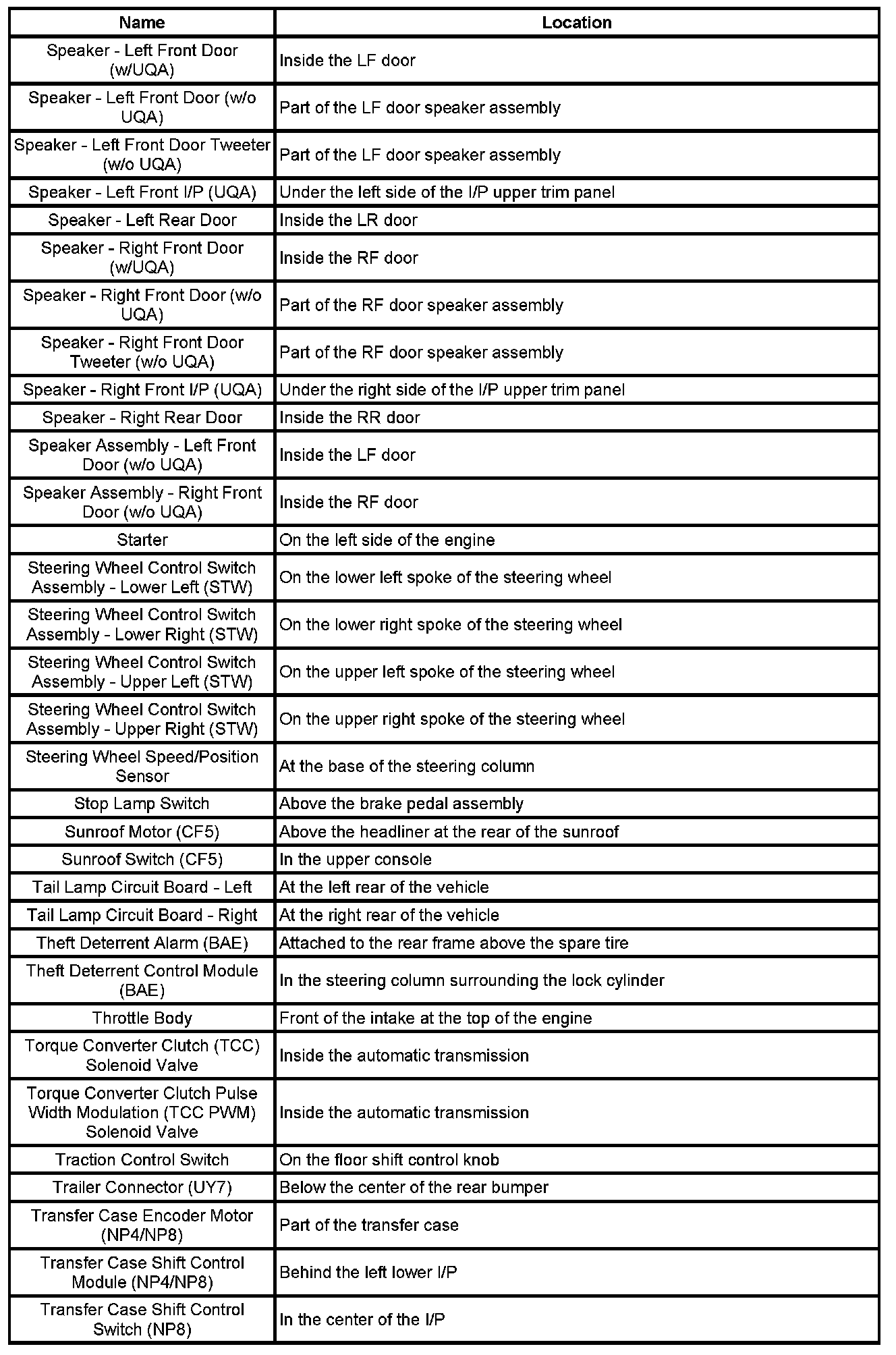

Sp - Tr:

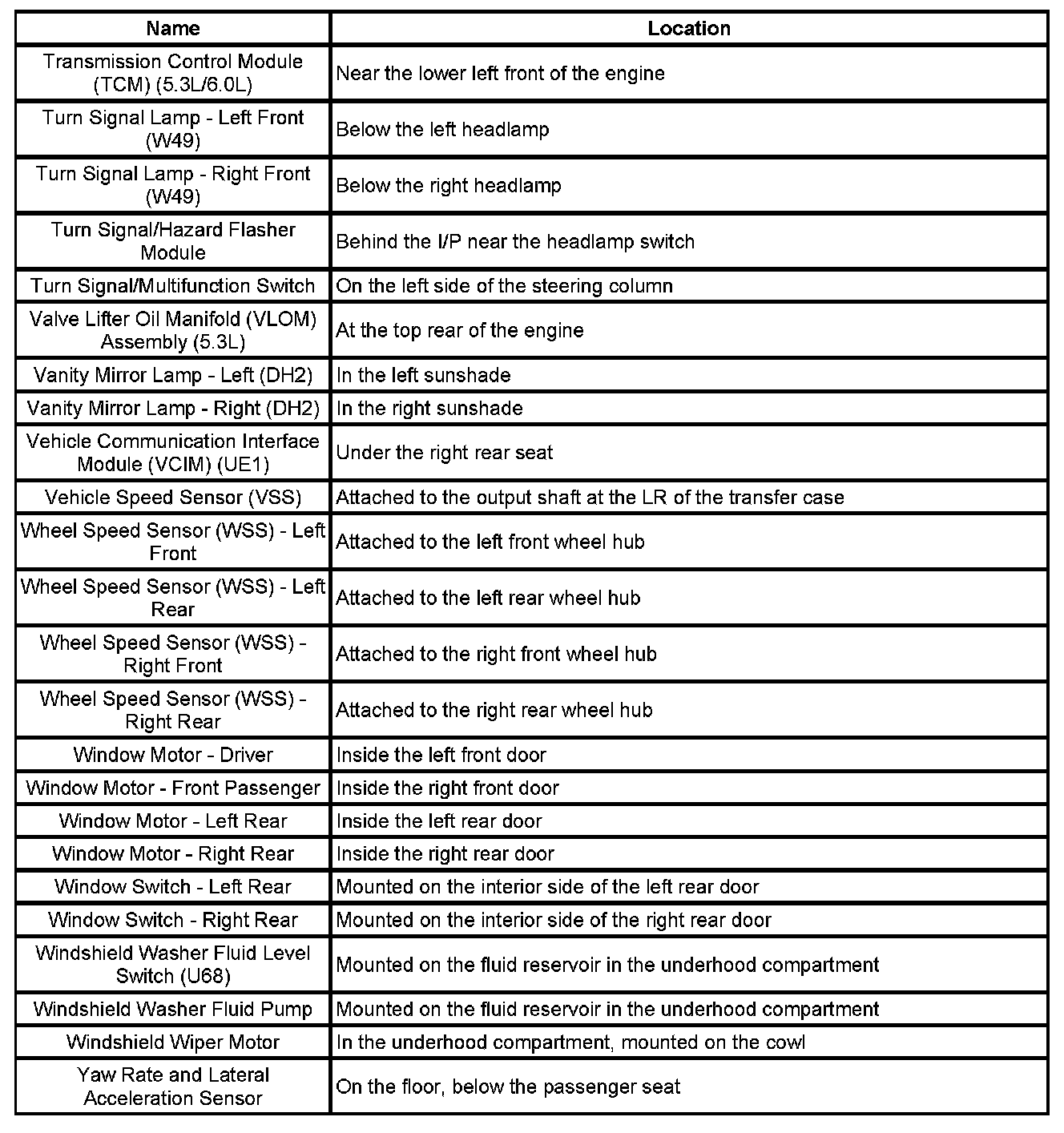

Tr - Ya:
