Home >> Isuzu >> 2007 >> i-290 2WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

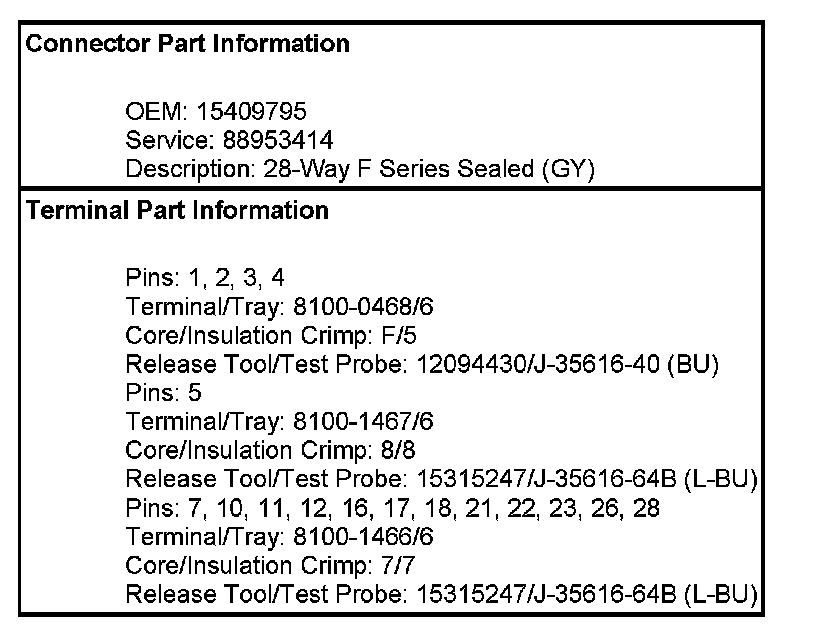

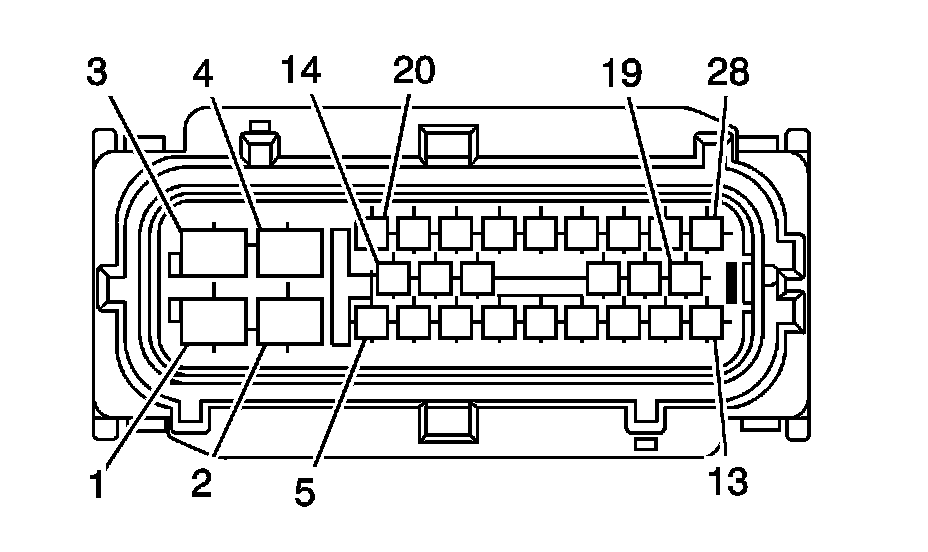

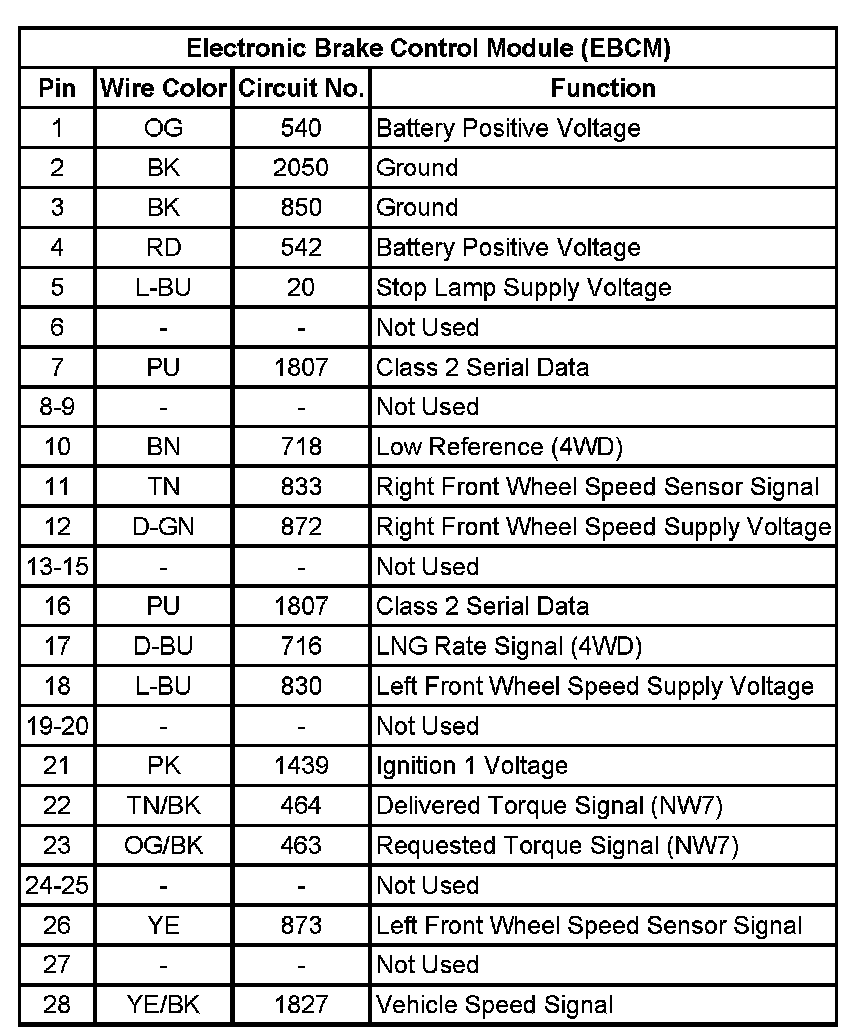

Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM):
