Home >> Isuzu >> 2007 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case >> NVG 226-NP8 - Transfer Case >> Transfer Case Shift Control Module C3

Transfer Case Shift Control Module C3



Transfer Case Shift Control Module C3

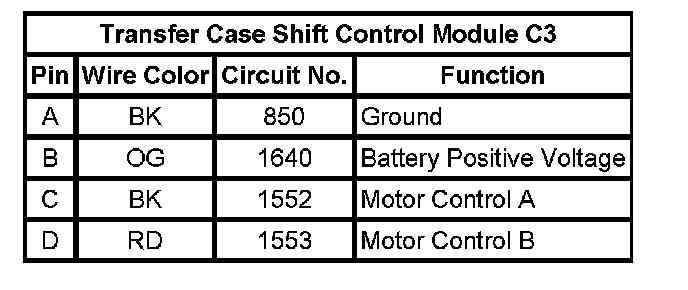

Transfer Case Shift Control Module - C3:

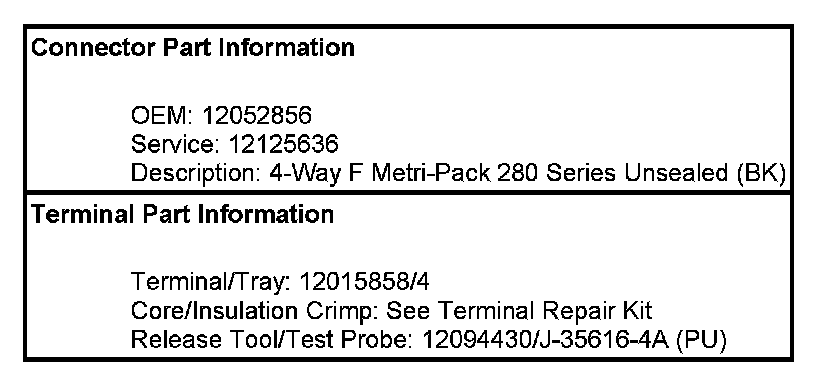

Transfer Case Shift Control Module C3:
