Home >> Isuzu >> 2007 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations

Information Bus: Locations

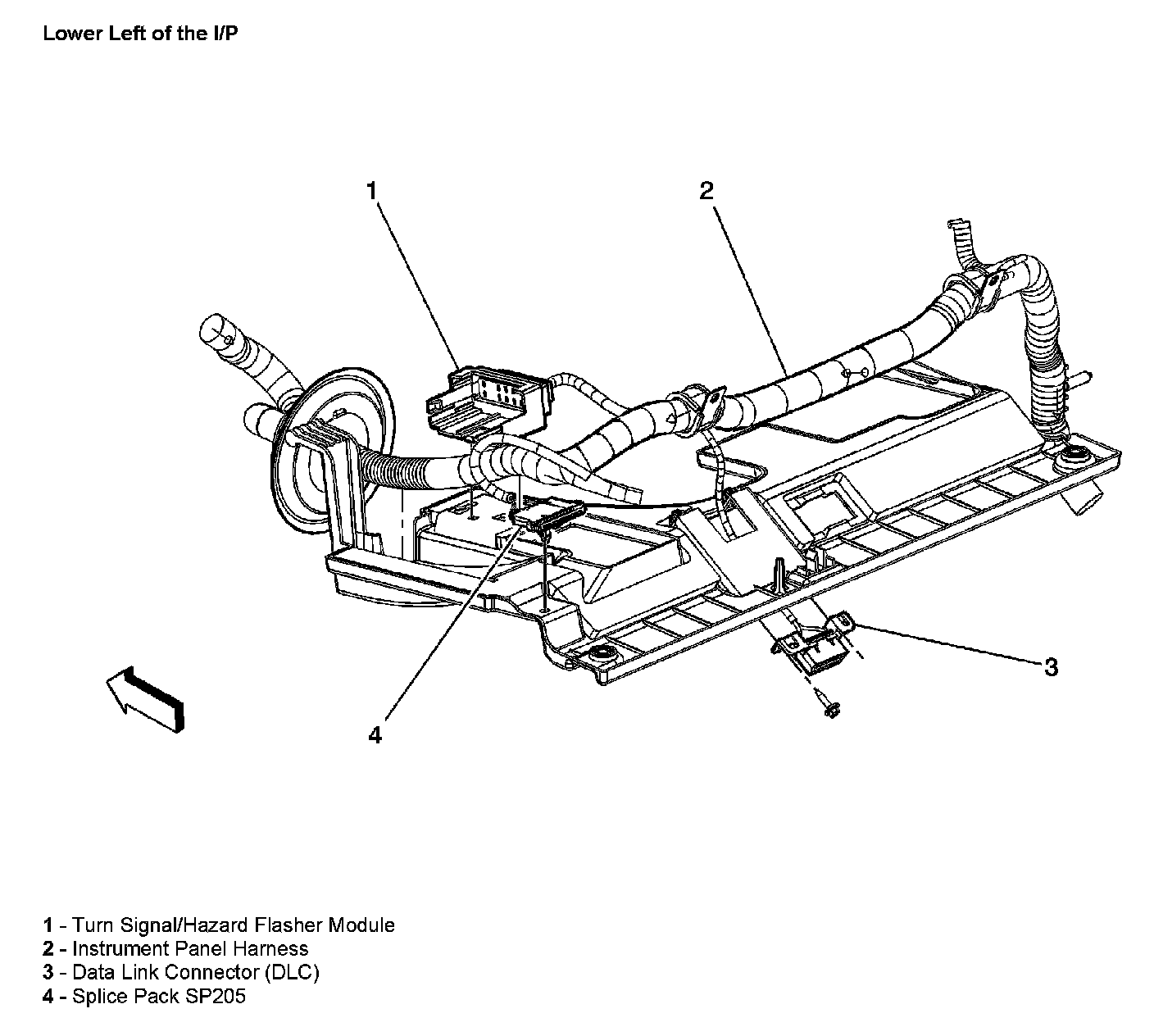

Lower Left Of The I/P:

Body Control Module (BCM):

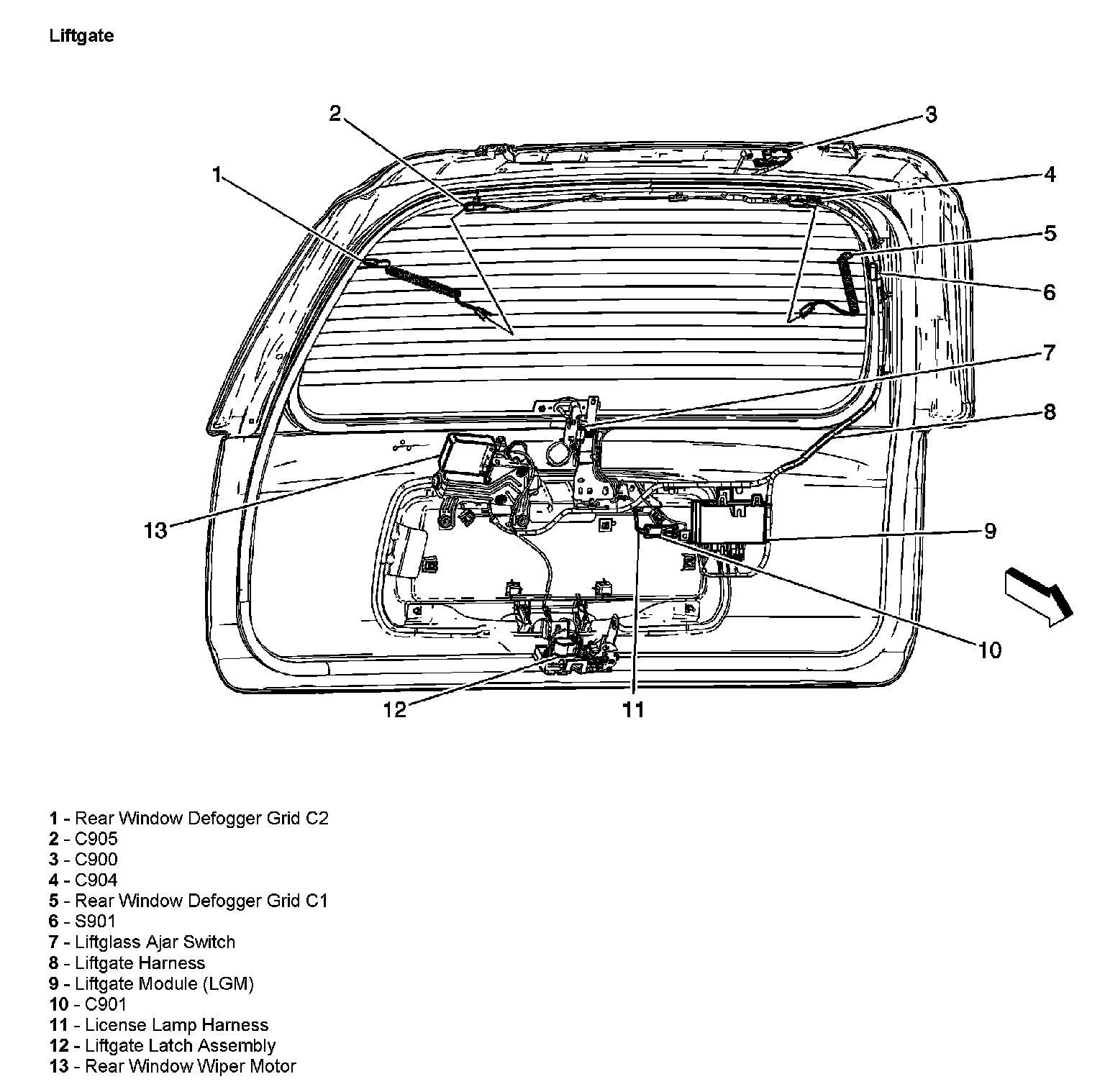

Liftgate:
