Home >> Isuzu >> 2007 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C2

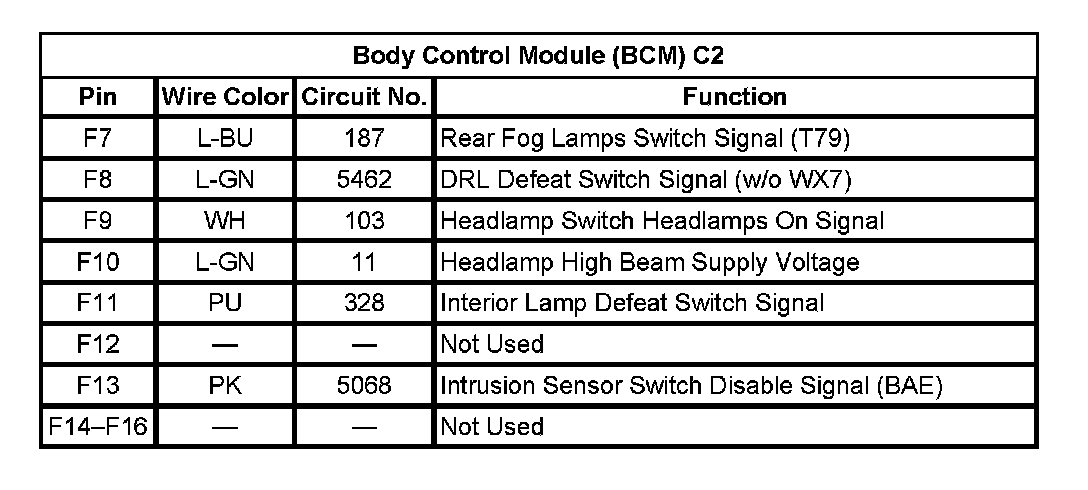

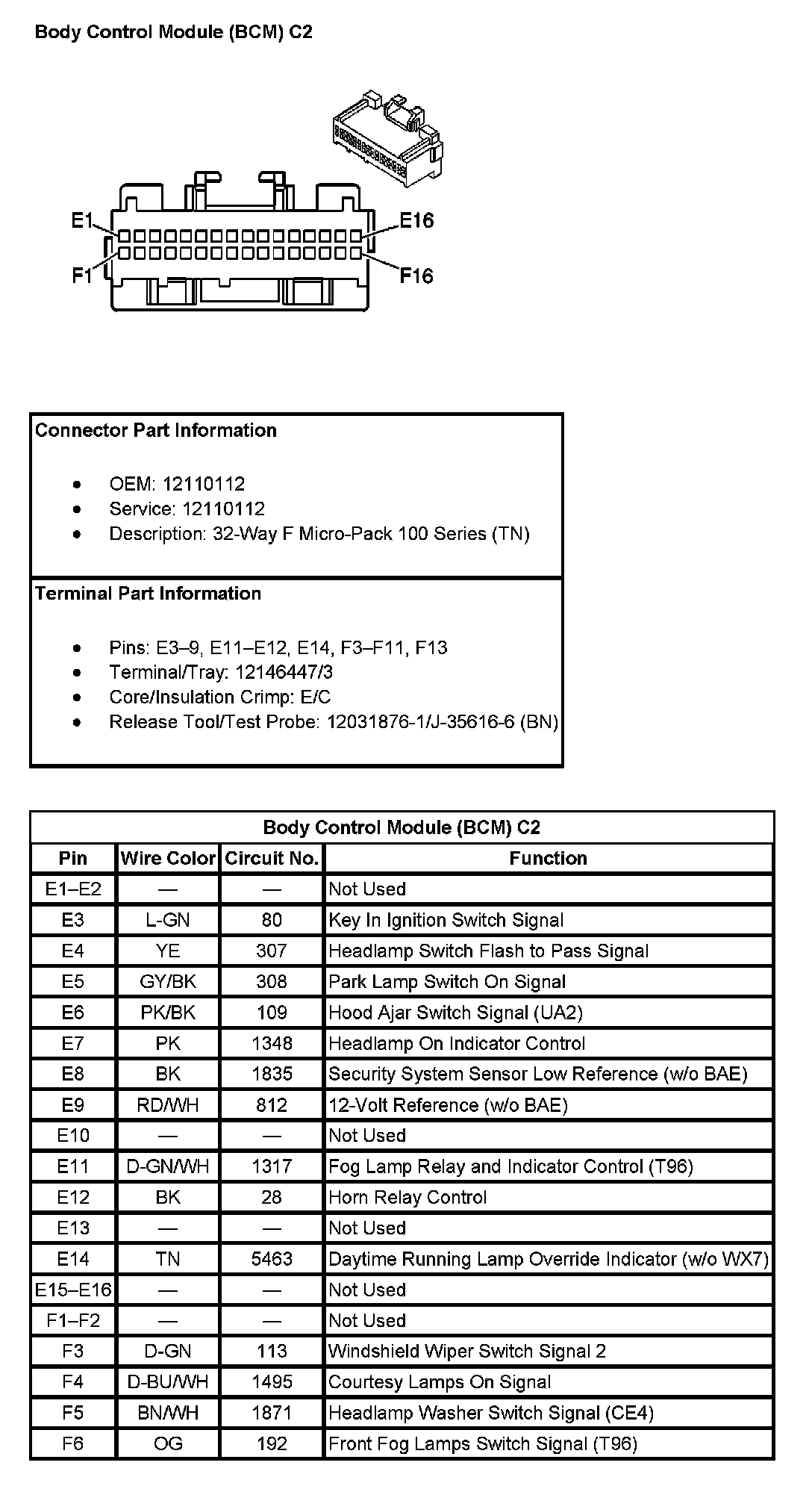

Body Control Module (BCM) C2

Body Control Module (BCM) C2:

Body Control Module (BCM) C2:
