Home >> Isuzu >> 2007 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C1

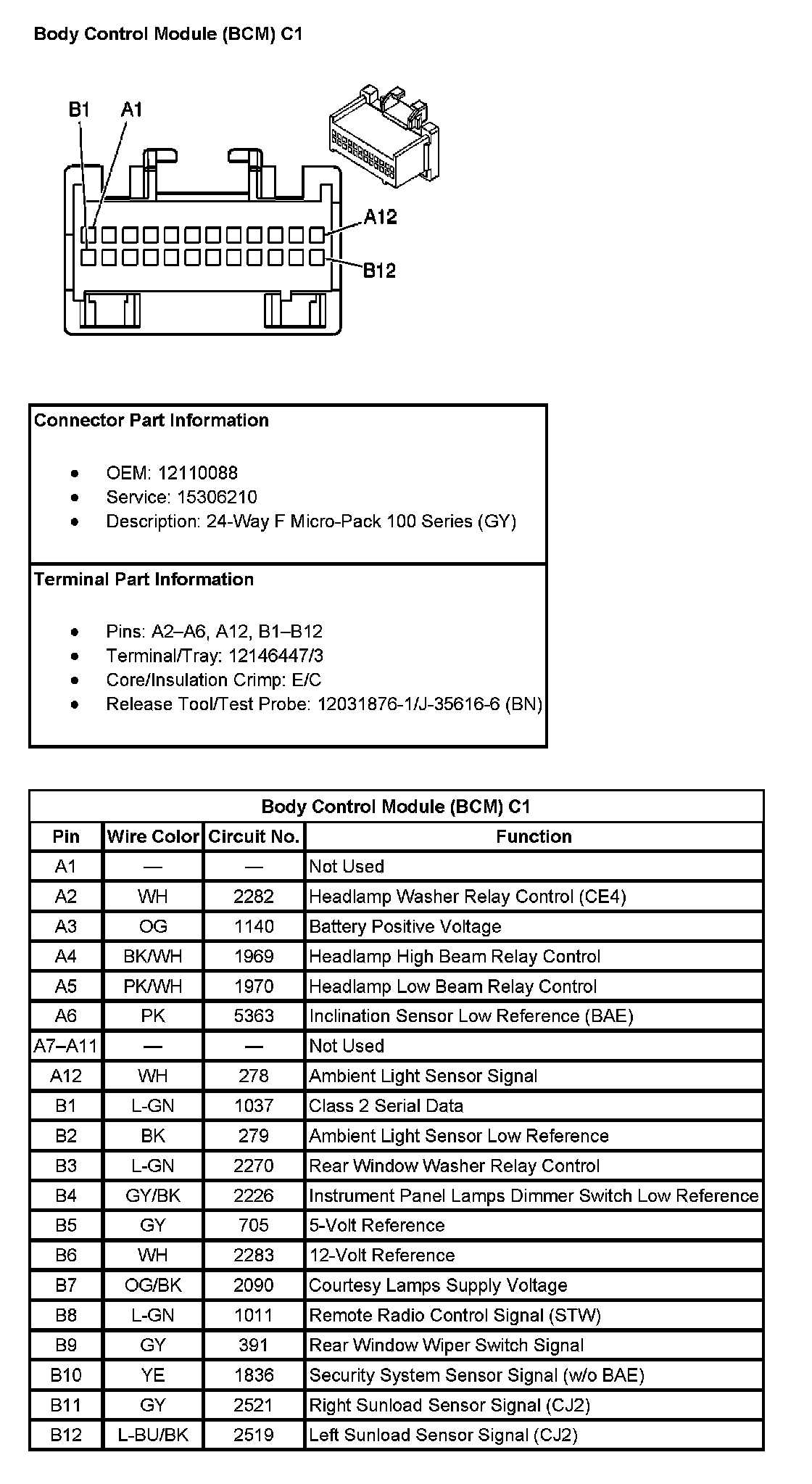

Body Control Module (BCM) C1

Body Control Module (BCM) C1:
