Scan Tool Output Controls



Scan Tool Output Controls

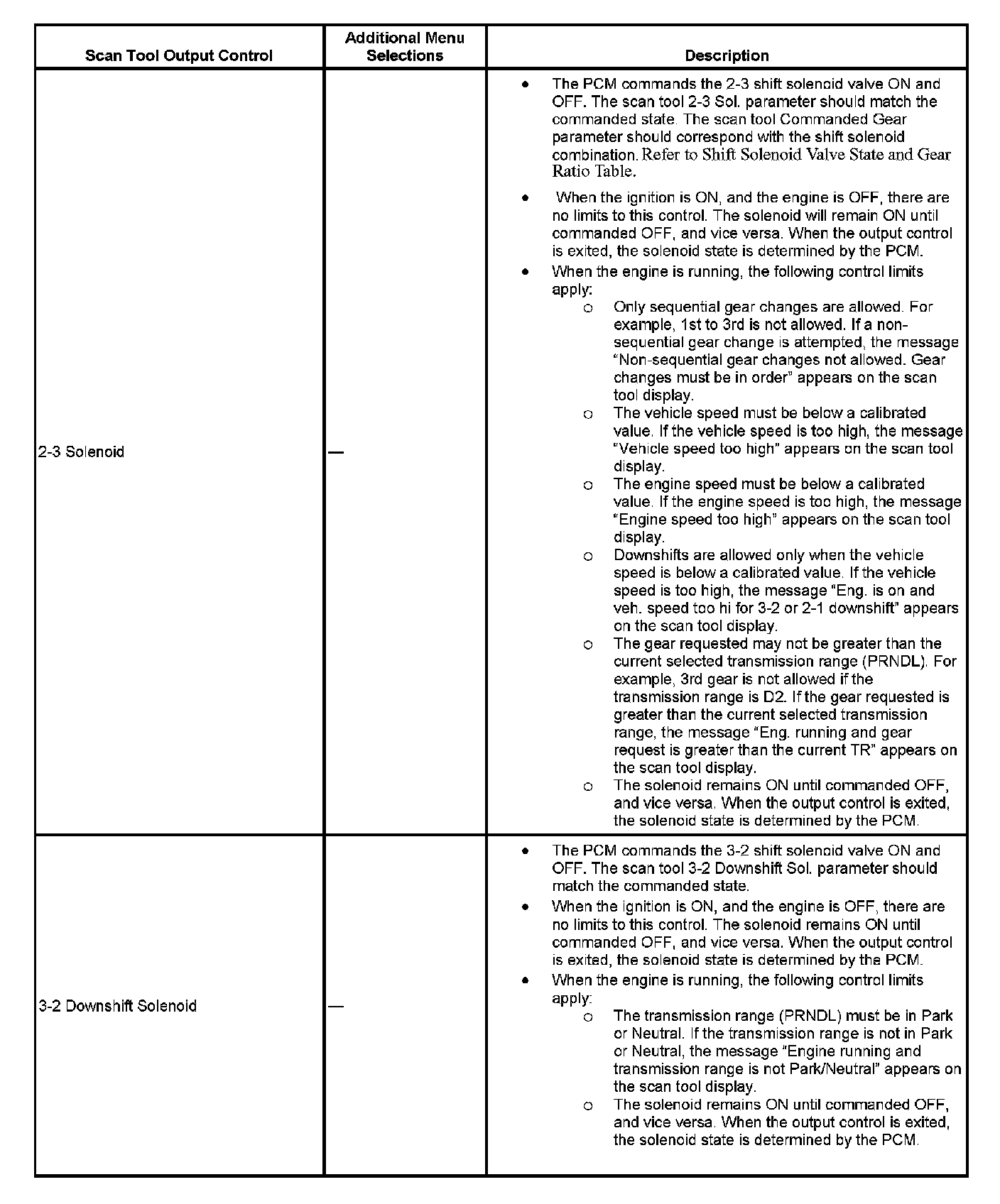

Scan Tool Output Controls:

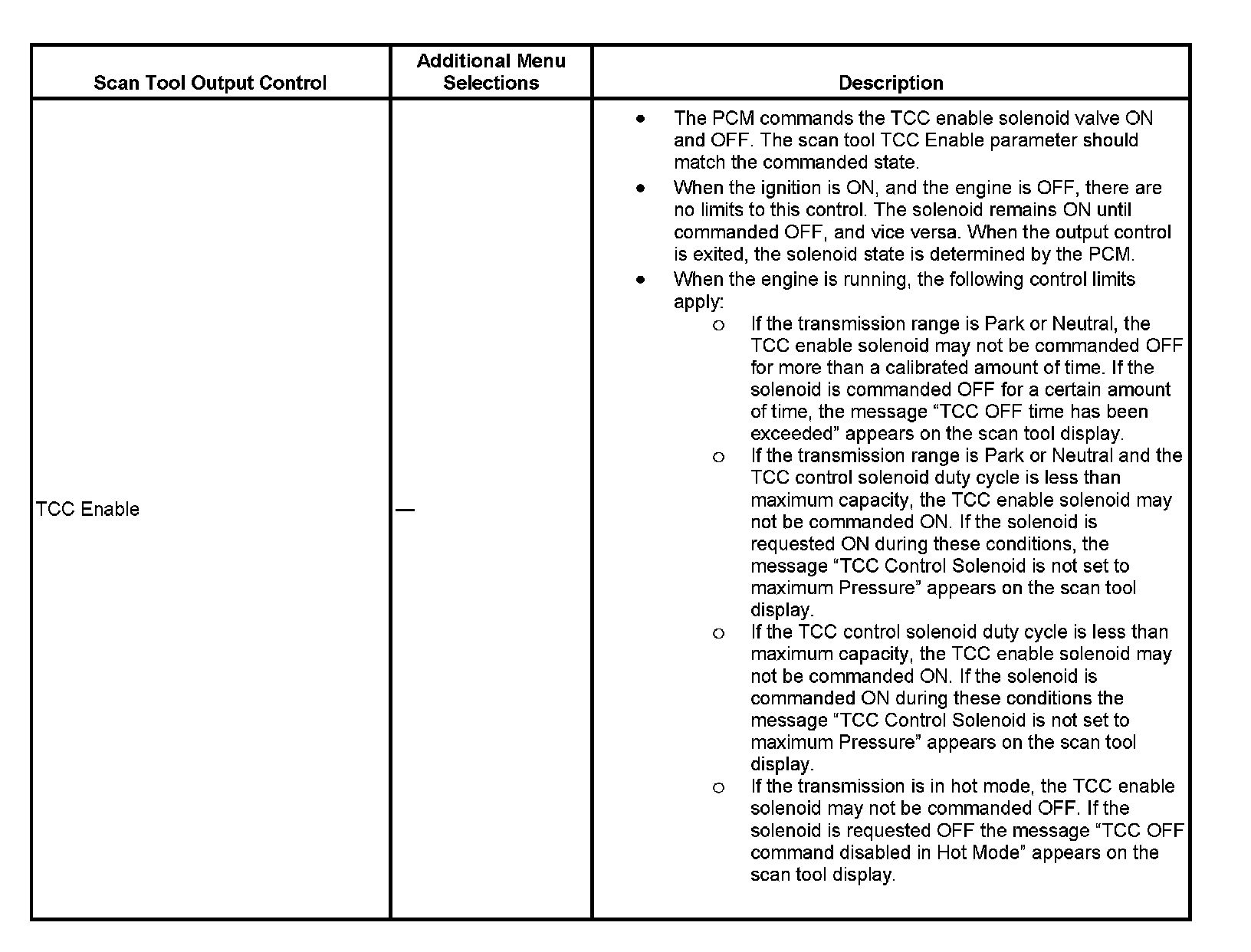

Scan Tool Output Controls:

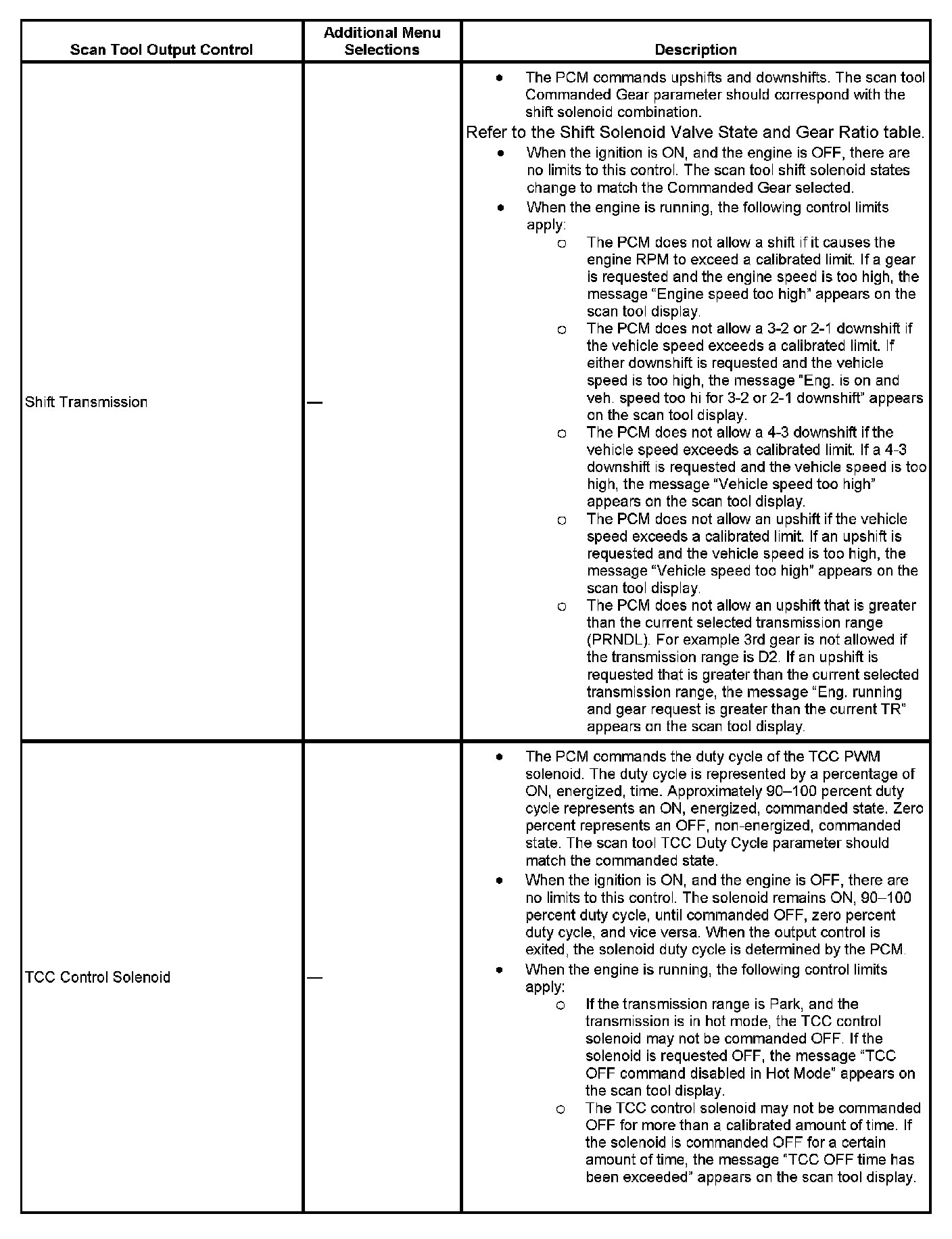

Scan Tool Output Controls:

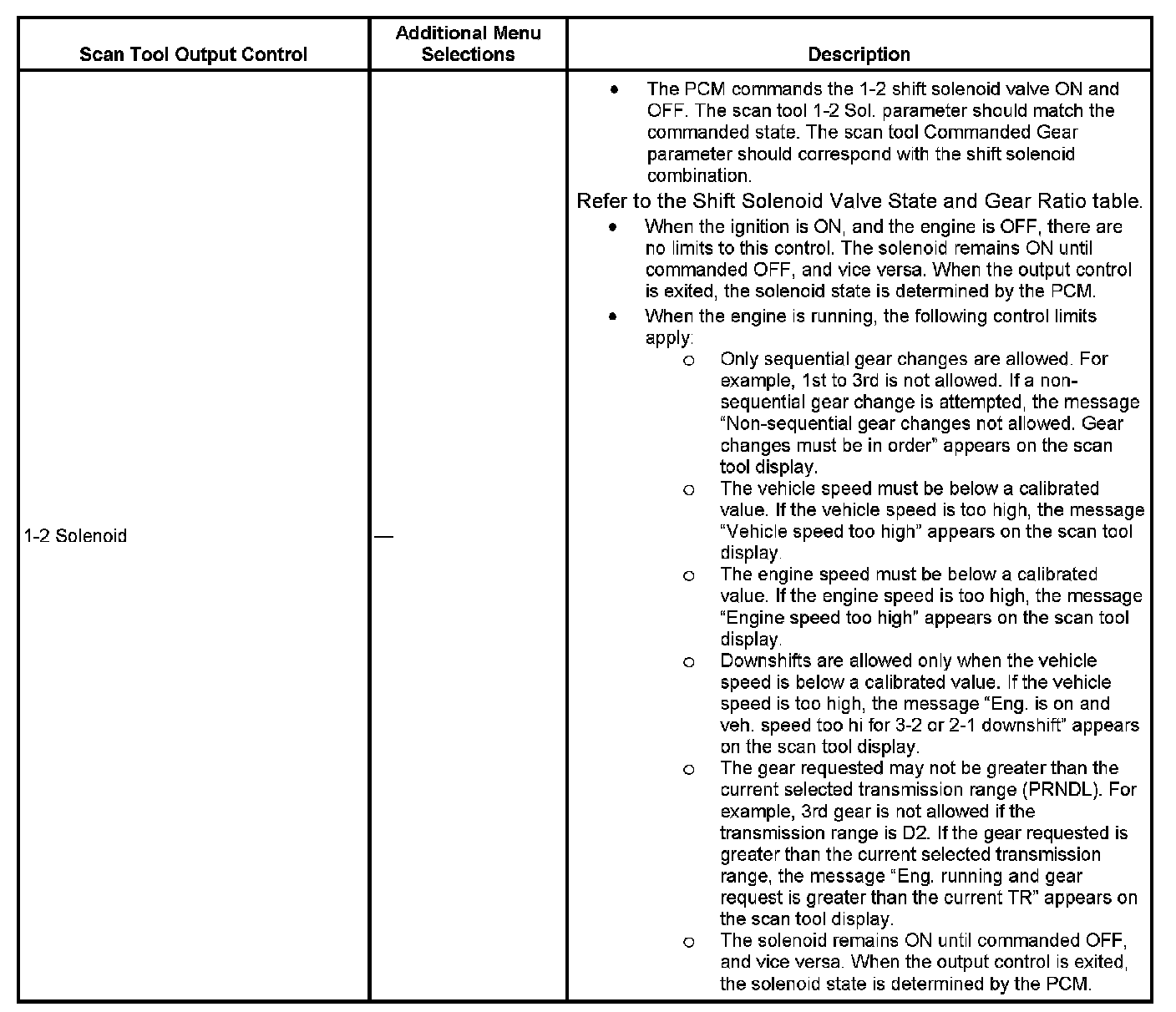

Scan Tool Output Controls:




Scan Tool Output Controls:
