Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Level Sensor >> Diagrams

Fuel Level Sensor: Diagrams

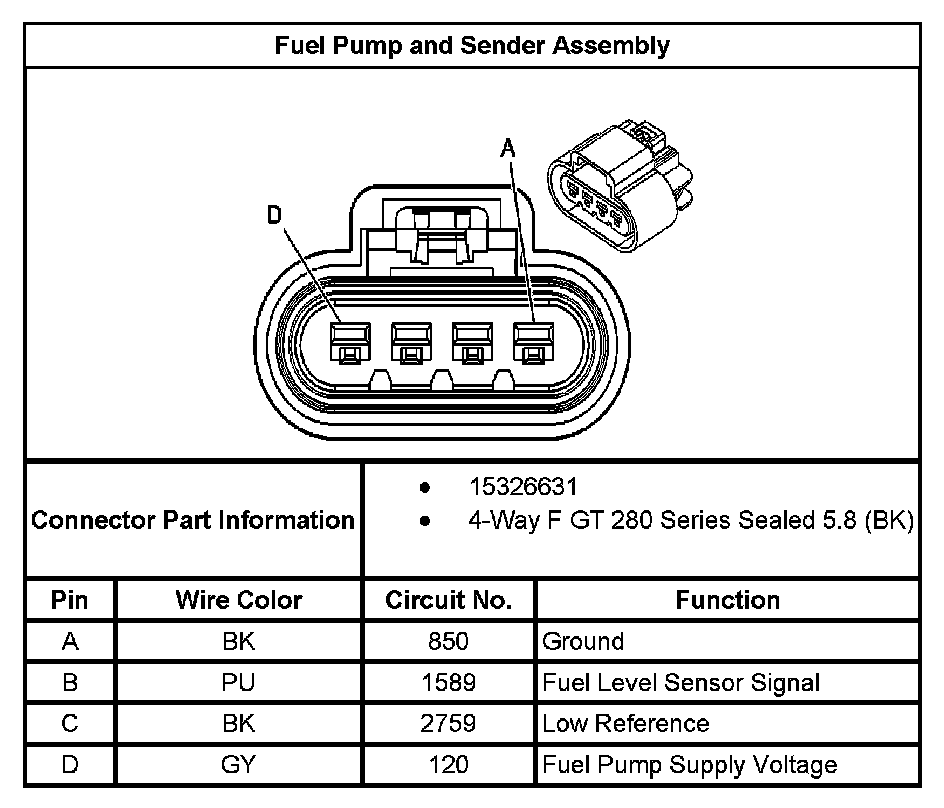

Fuel Pump And Sender Assembly:
