Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Compartment View >> Engine Compartment

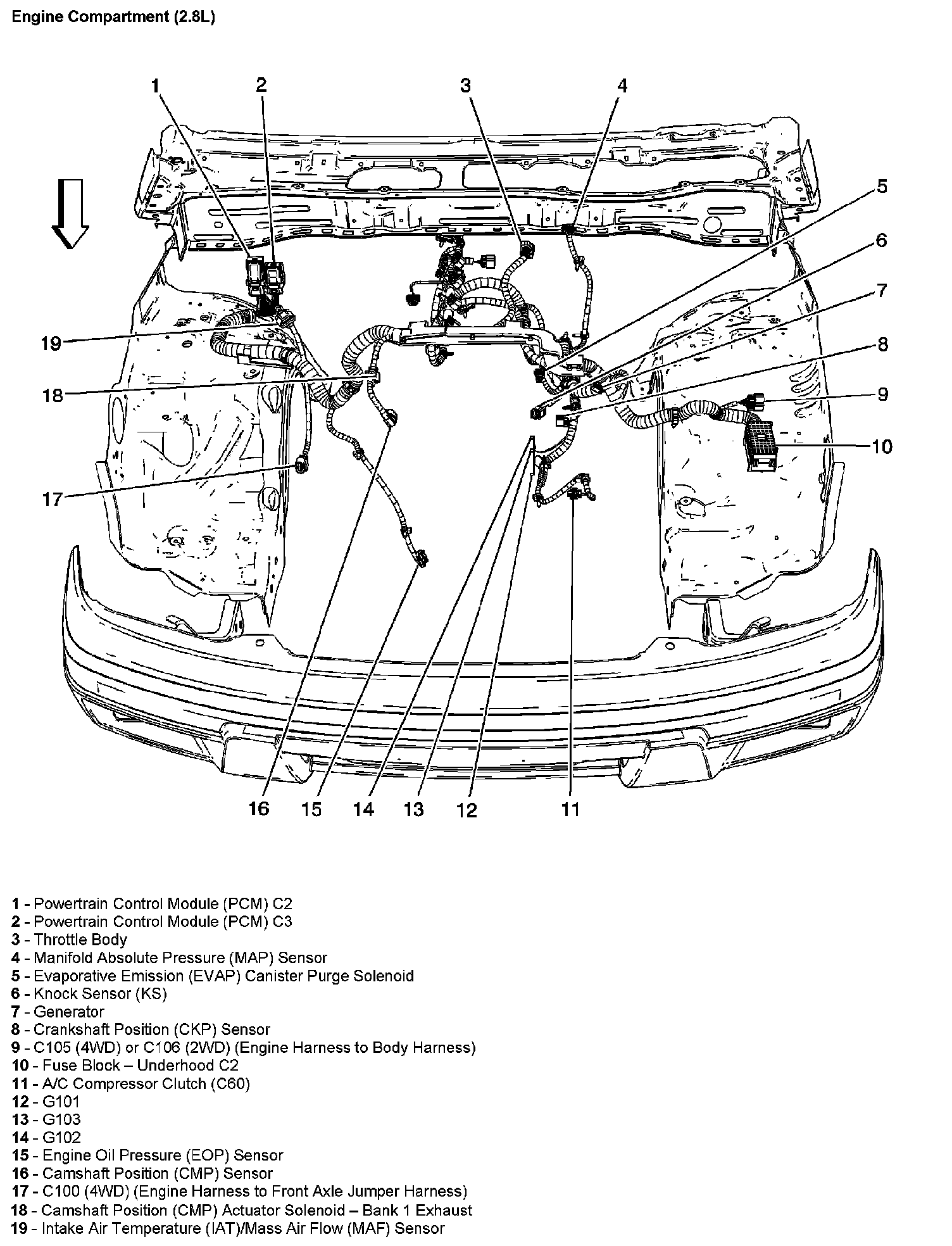

Engine Compartment

Engine Compartment:
