Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Maintenance >> Timing Component Alignment Marks >> Locations

Timing Component Alignment Marks: Locations

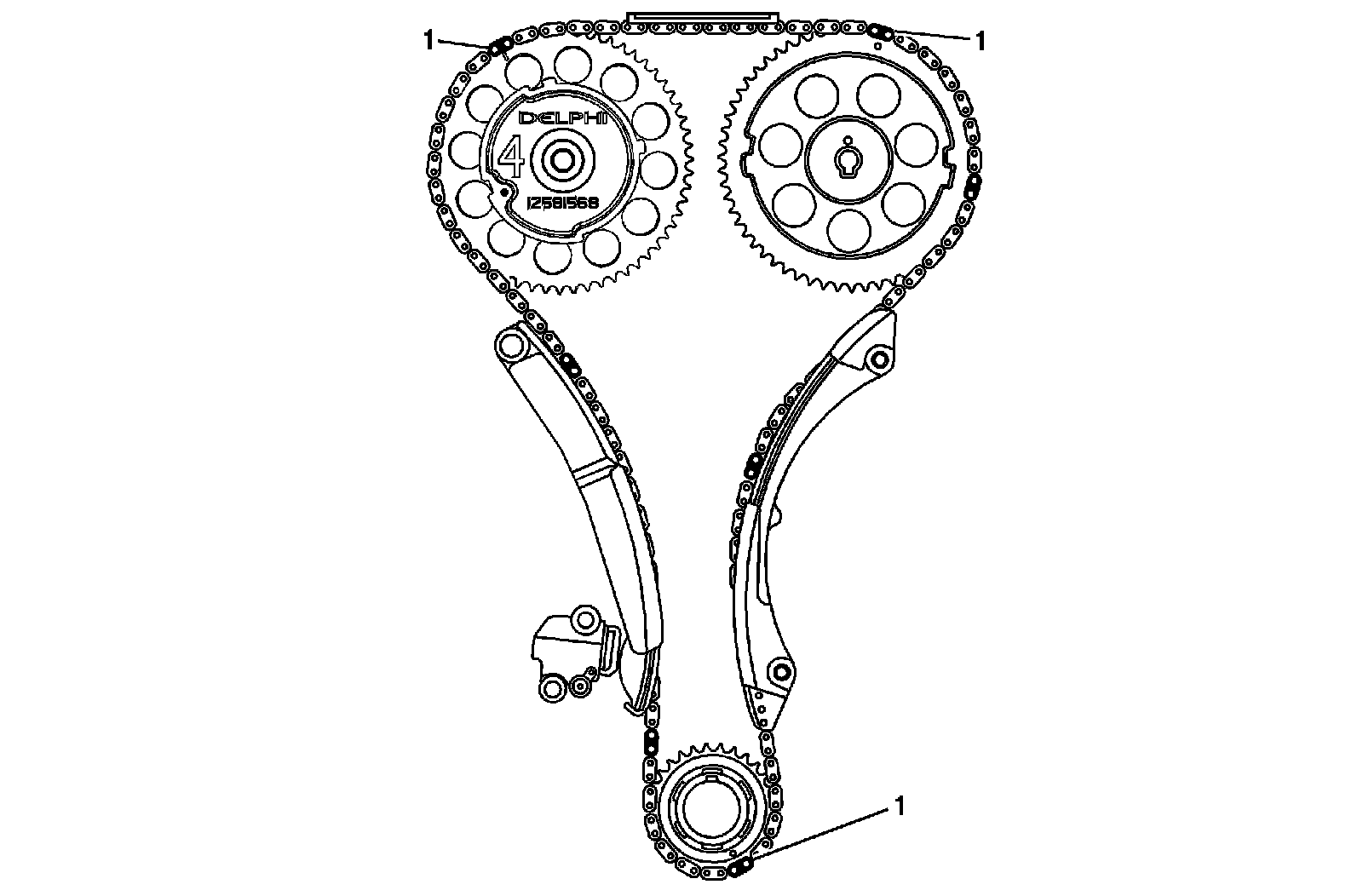

Timing Chain Alignment Diagram:





1 - Timing Marks
1 - Timing Marks
1 - Timing Marks
