Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

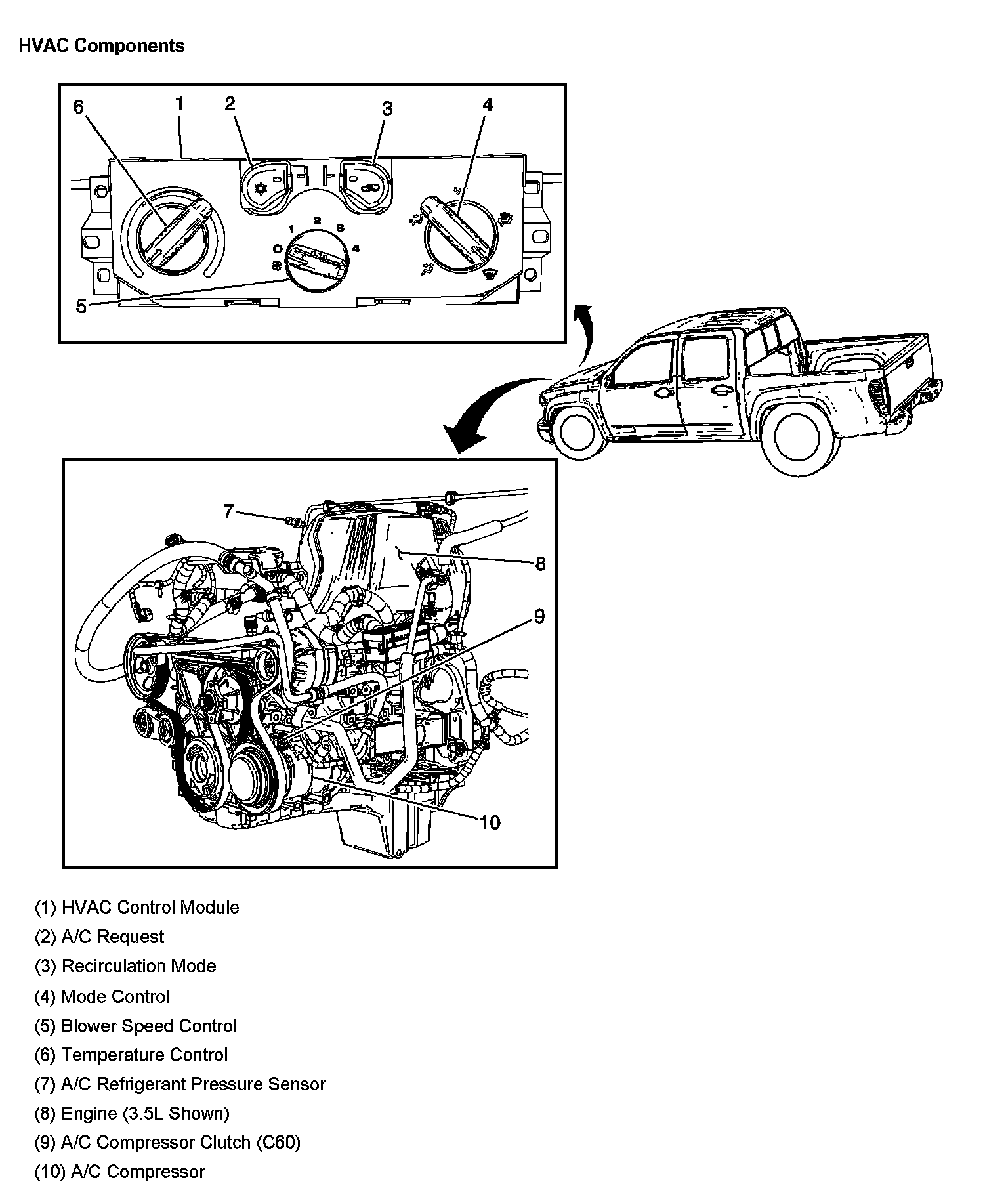

HVAC Components:

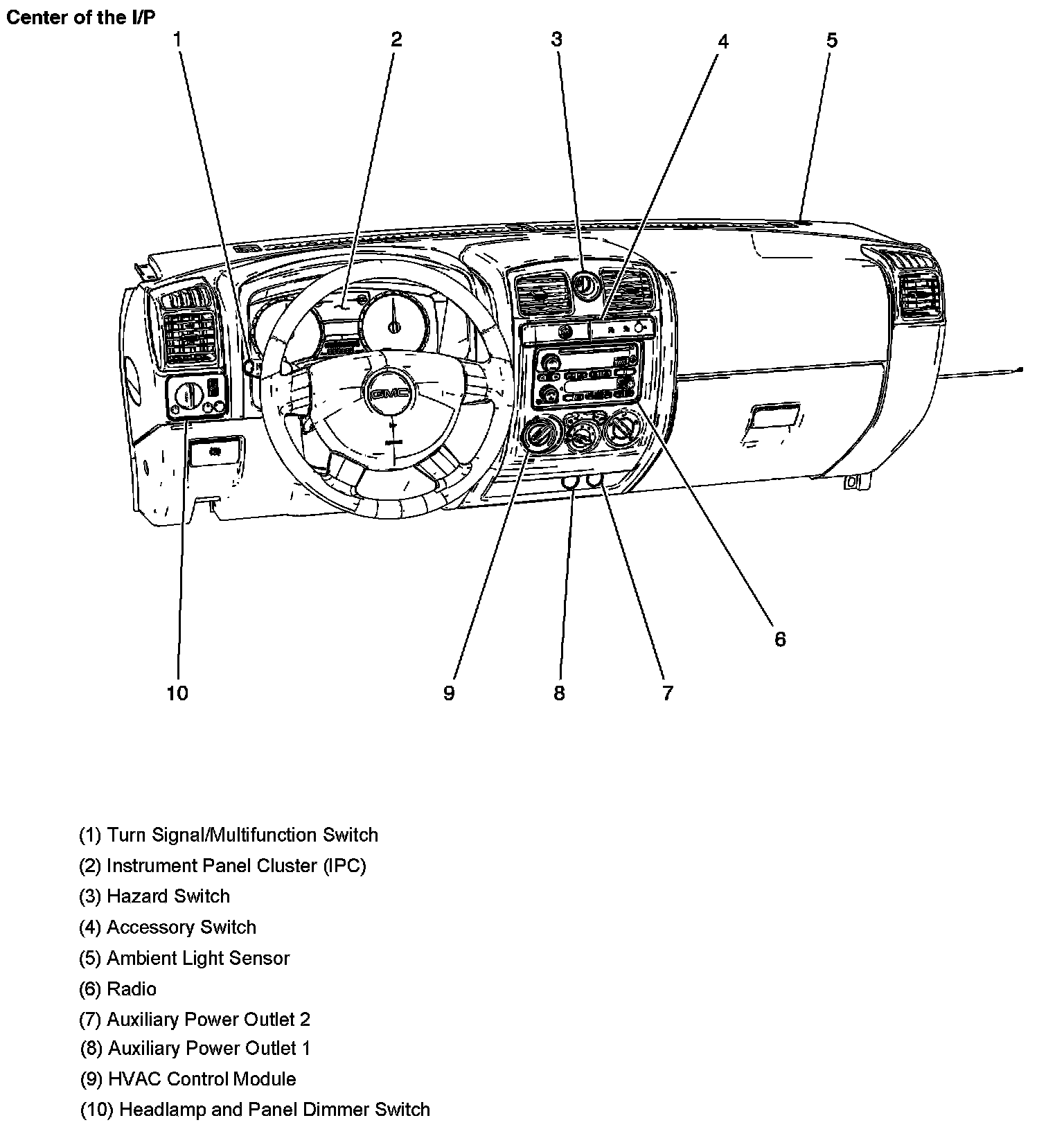

Center Of The I/P:

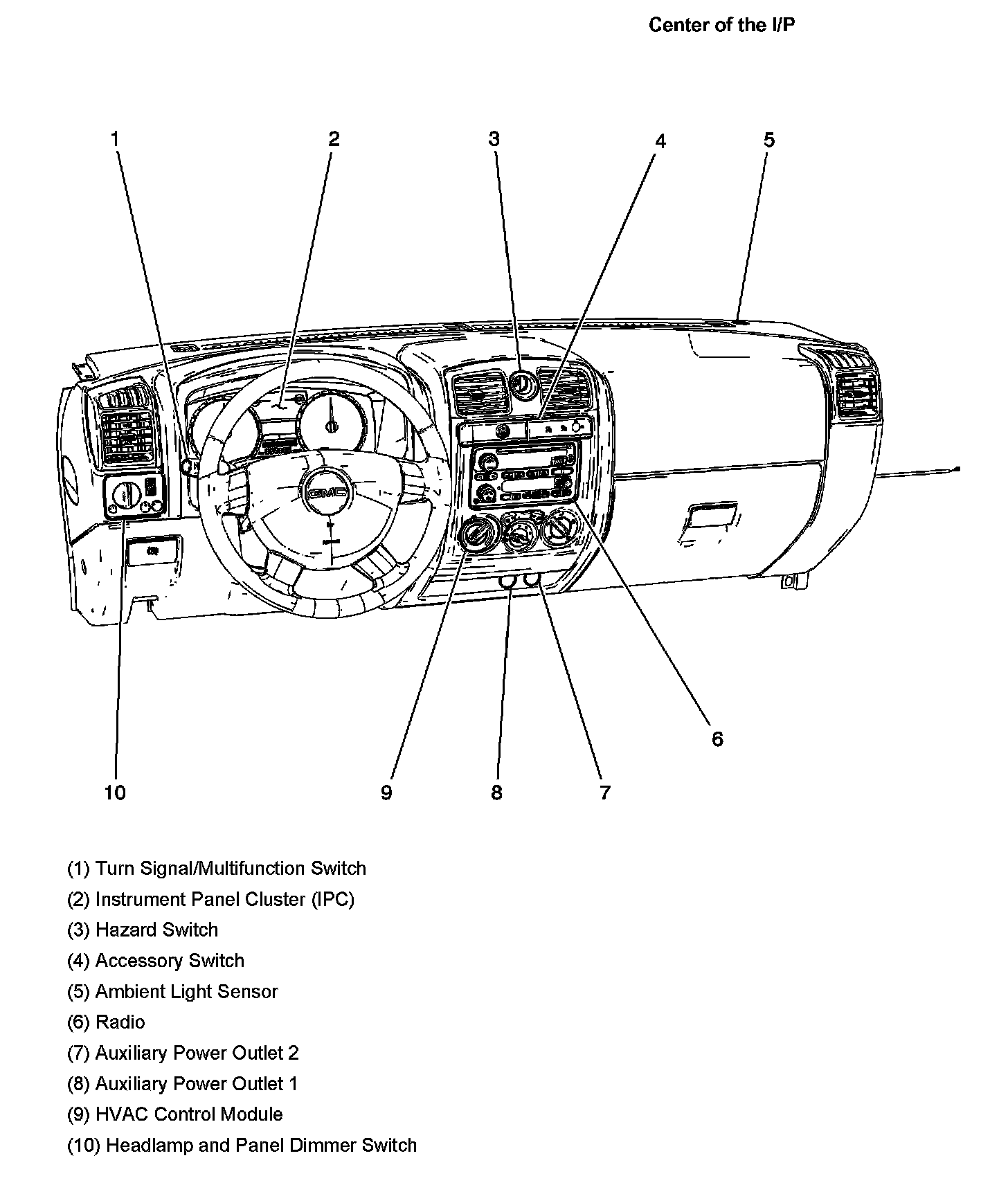

Center Of The I/P:
