Global Positioning System Module
Global Positioning System Module

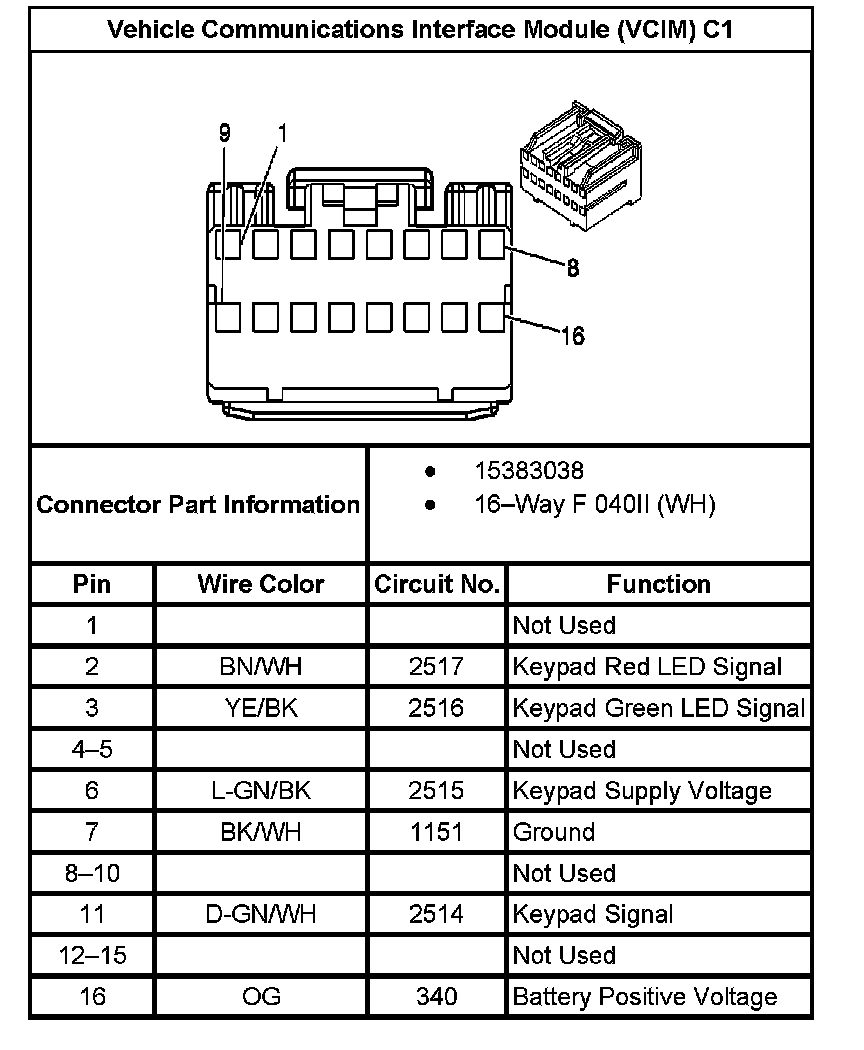

Vehicle Communications Interface Module (VCIM) C1:

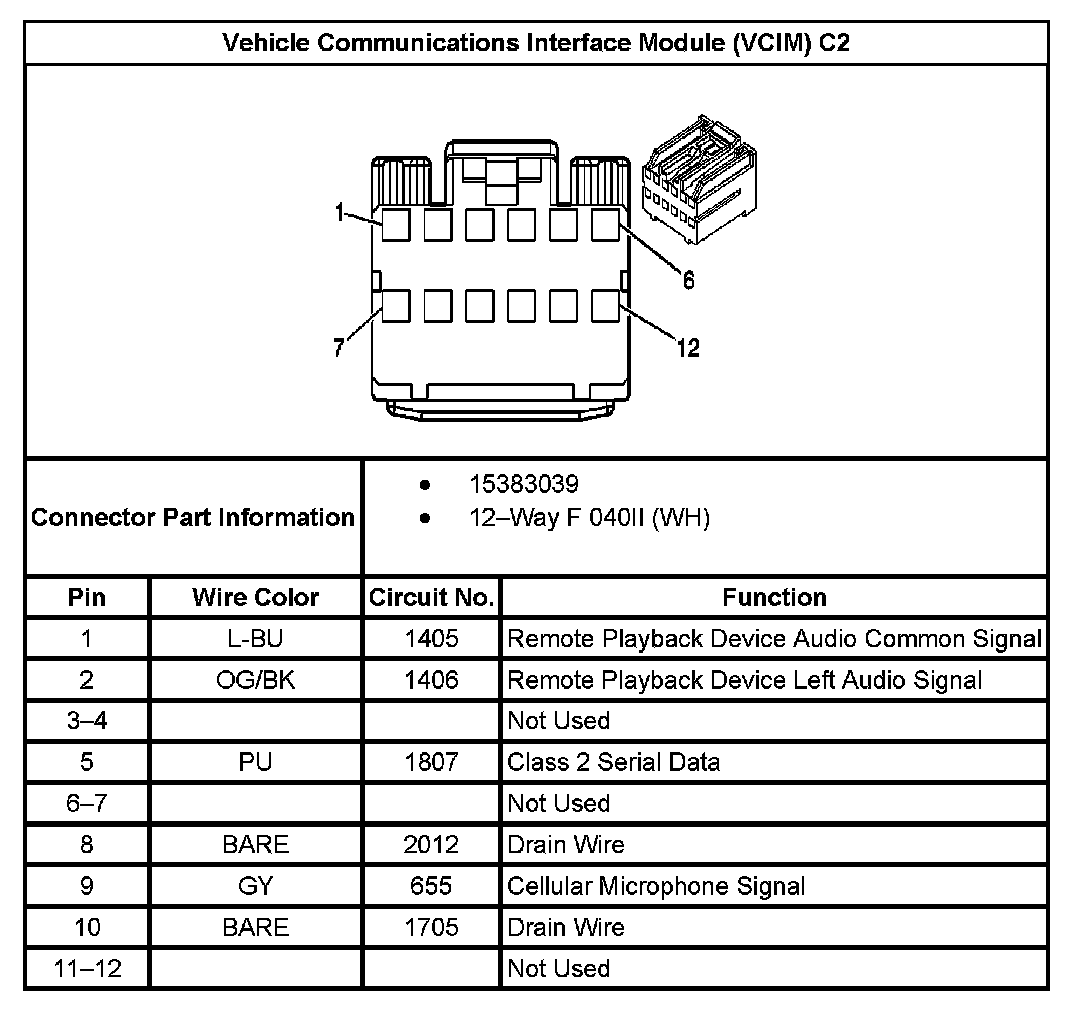

Vehicle Communications Interface Module (VCIM) C2:
