Home
>>
Isuzu
>>
2006
>>
i-280 L4-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Powertrain Control Module (PCM) C2
Powertrain Control Module (PCM) C2

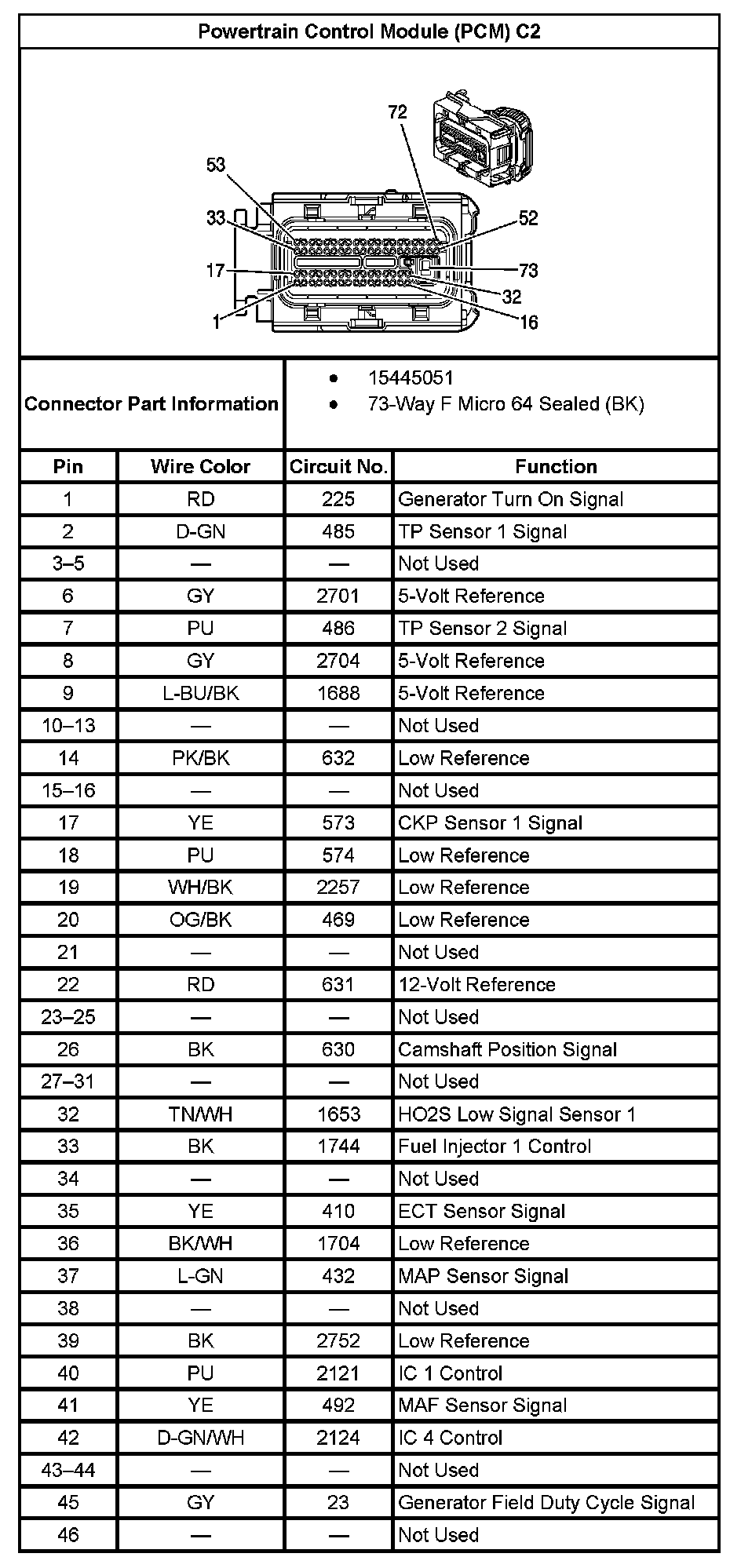

Powertrain Control Module (PCM) C2 (Part 1):

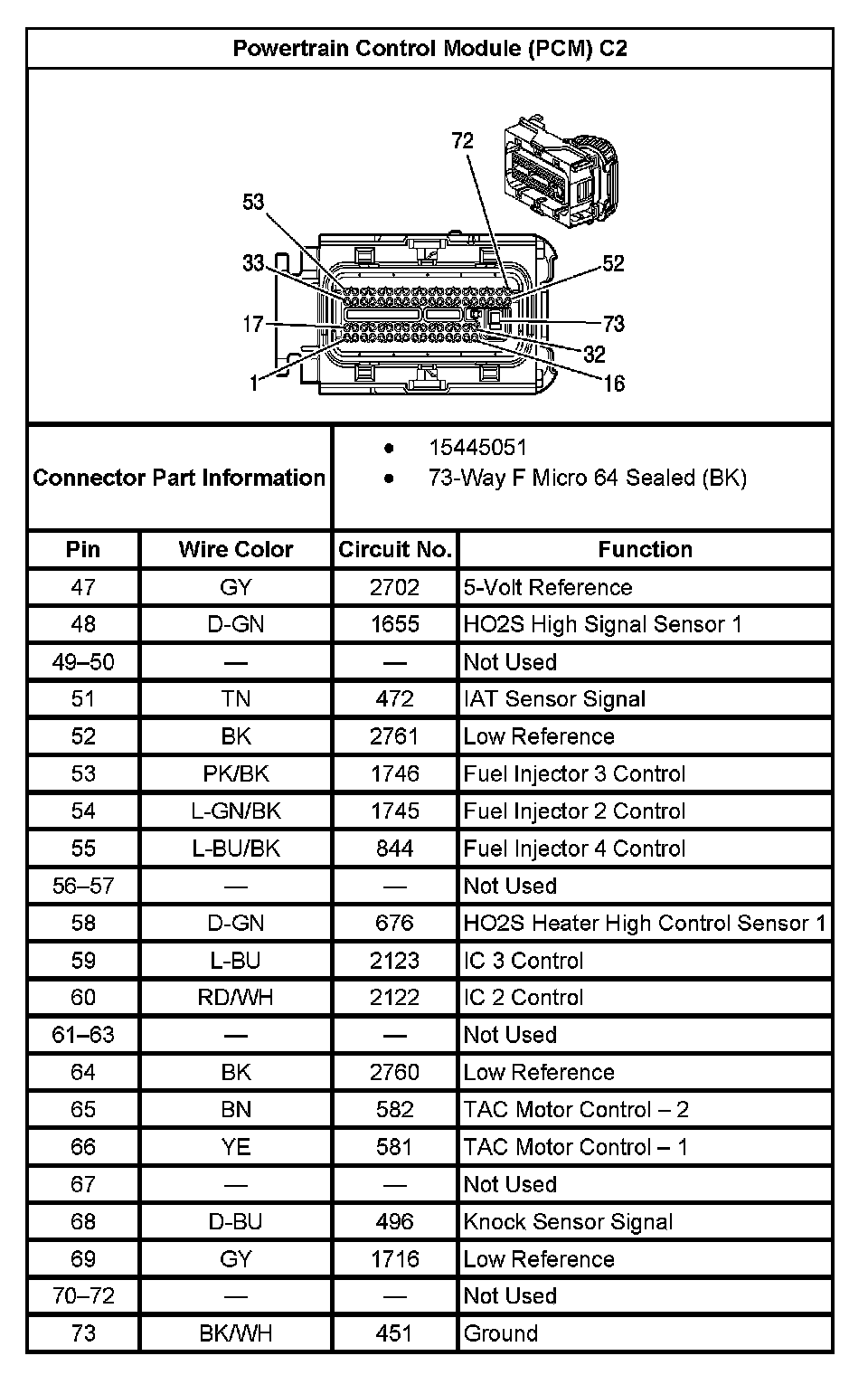

Powertrain Control Module (PCM) C2 (Part 2):
