Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

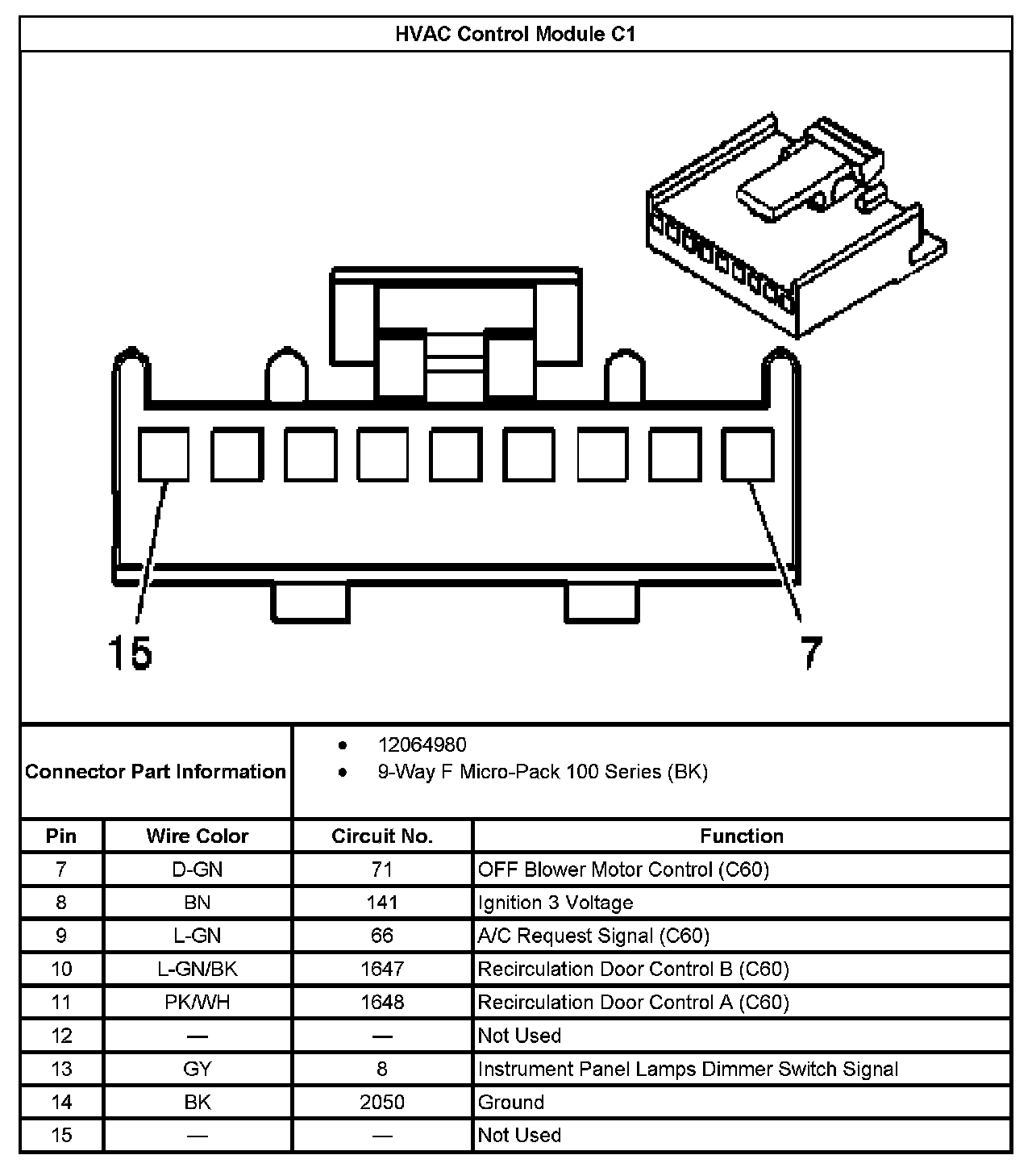

HVAC Control Module C1:

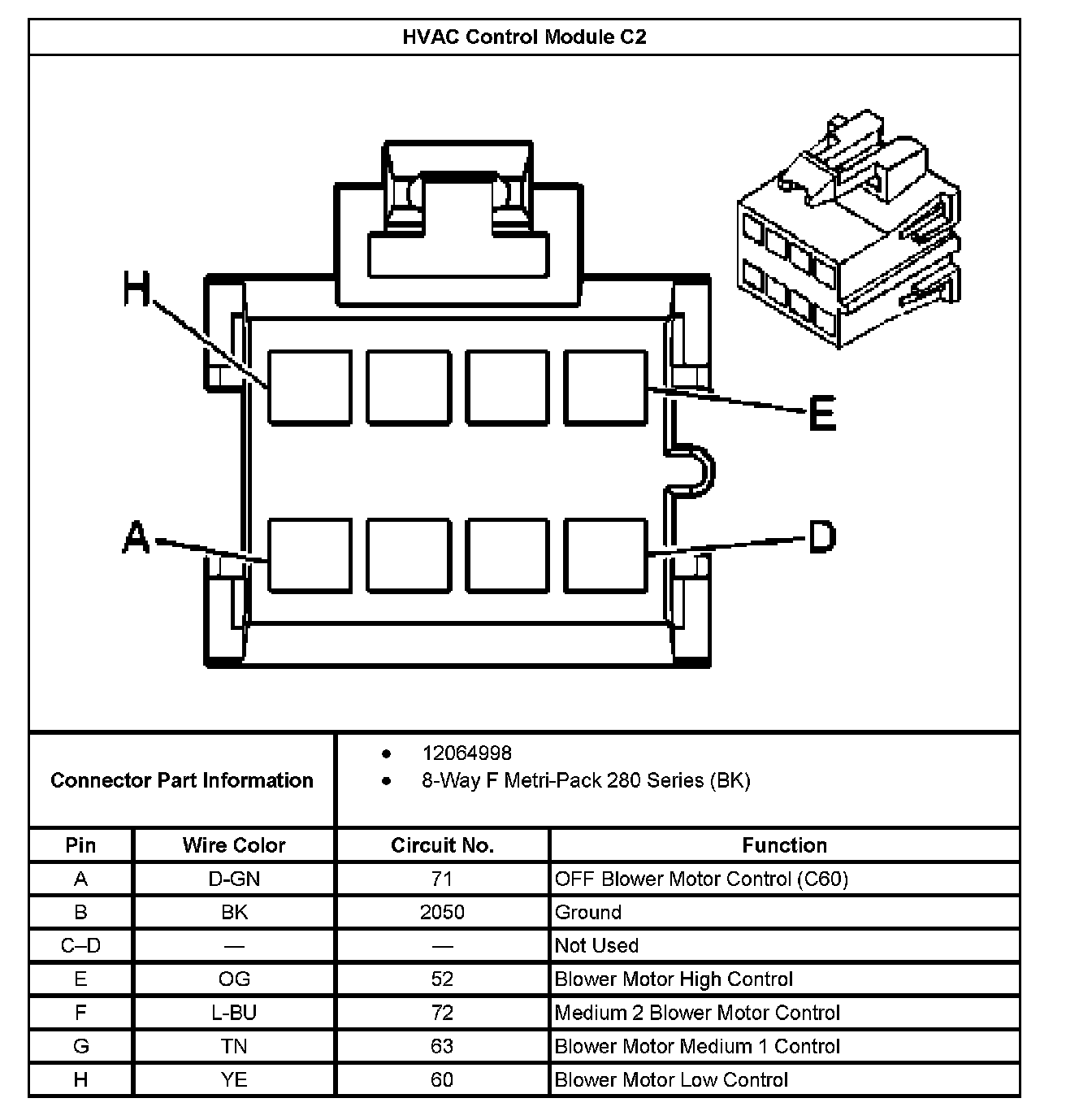

HVAC Control Module C2:
