Air Bag Control Module
Air Bag Control Module

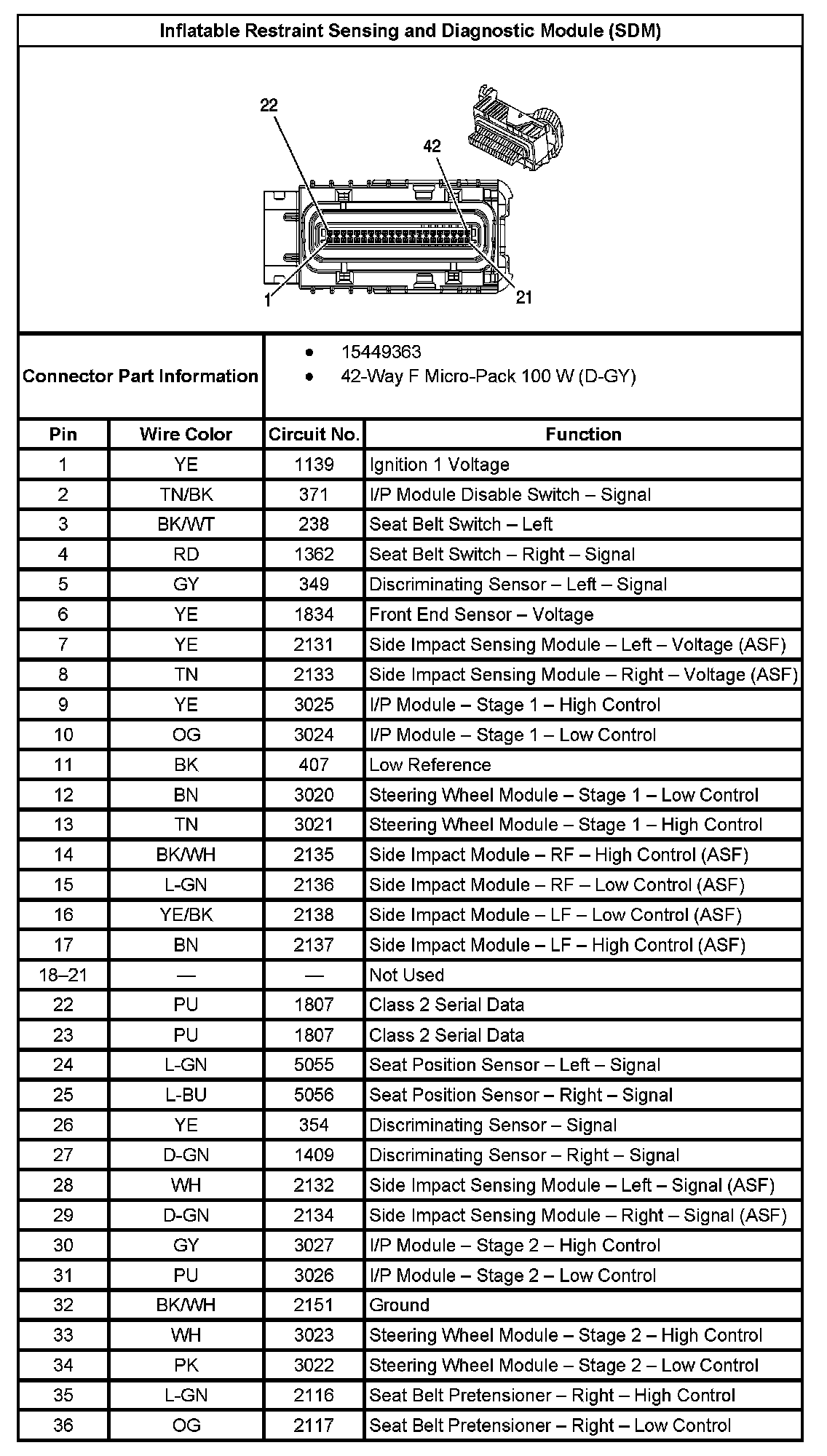

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 1):

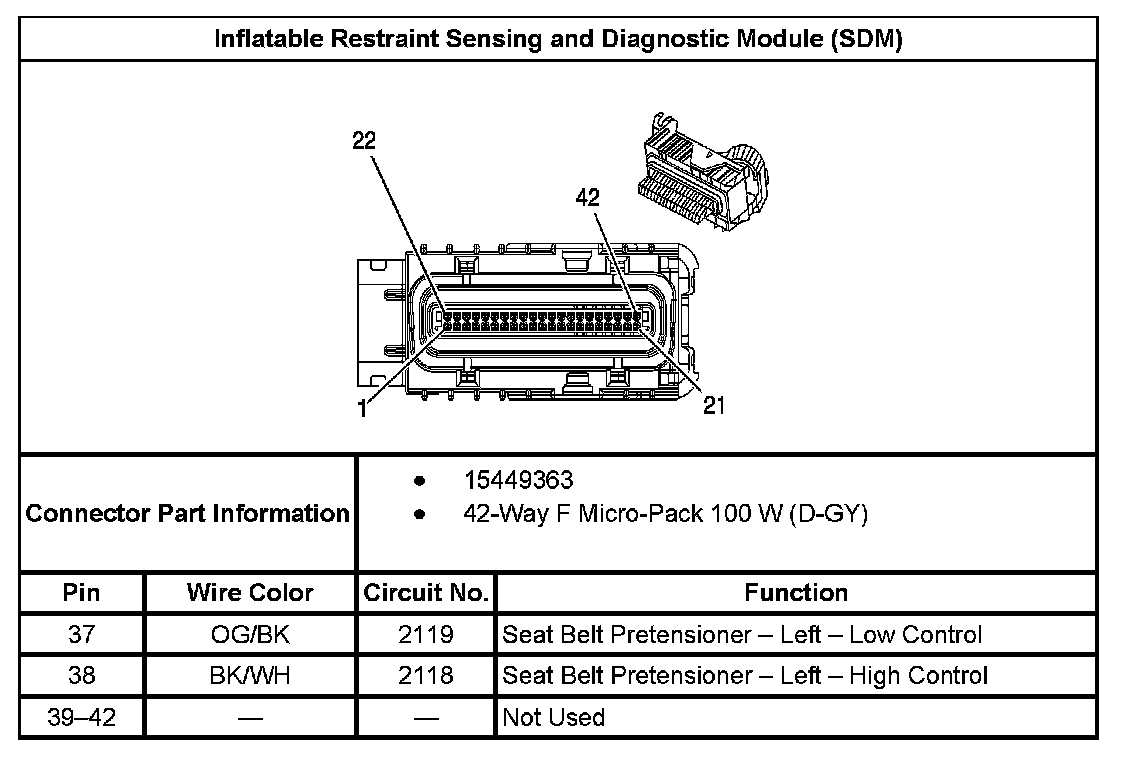

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 2):
