Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations

Knock Sensor: Locations

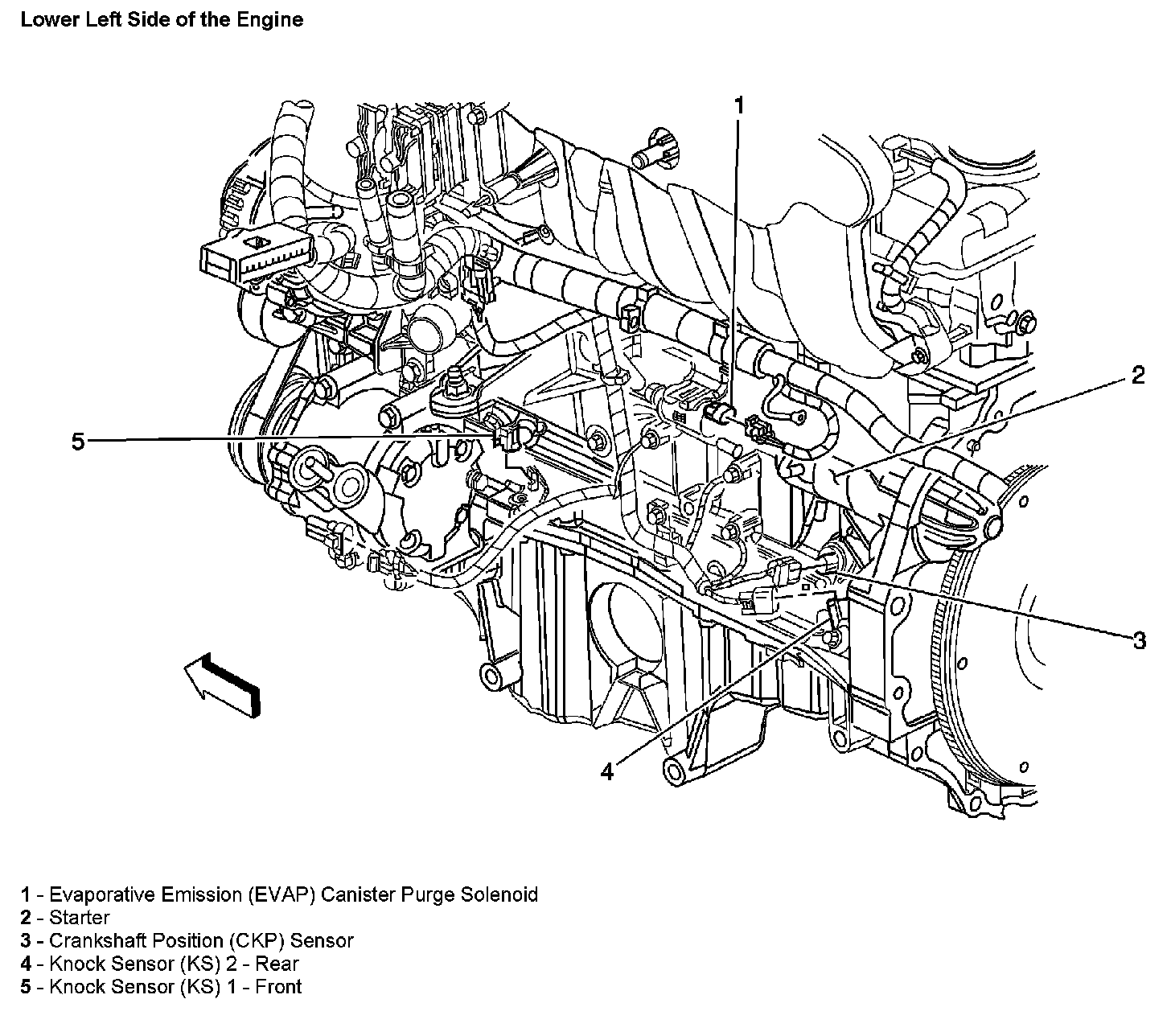

Lower Left Side Of The Engine:

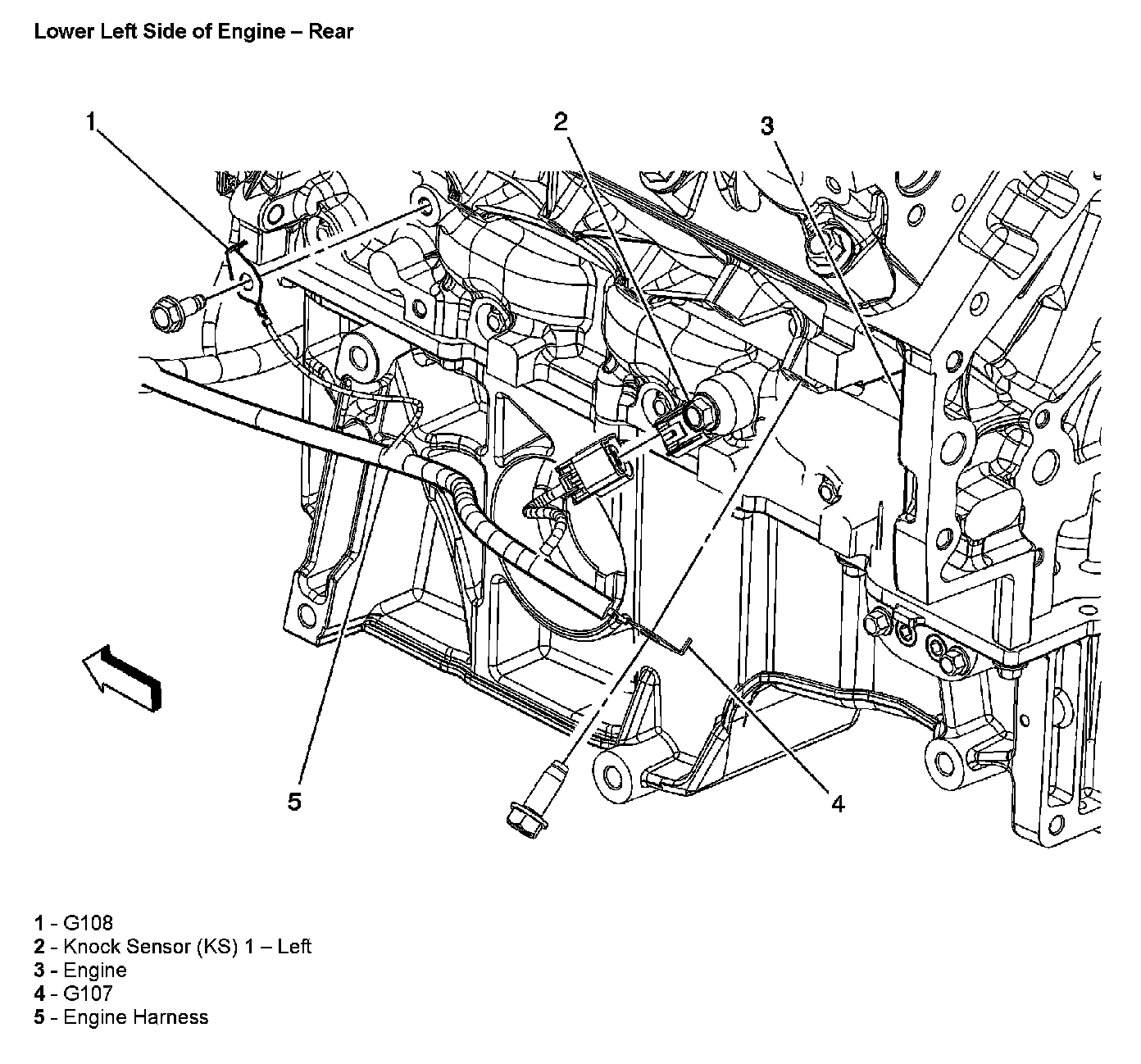

Lower Left Side Of Engine - Rear:

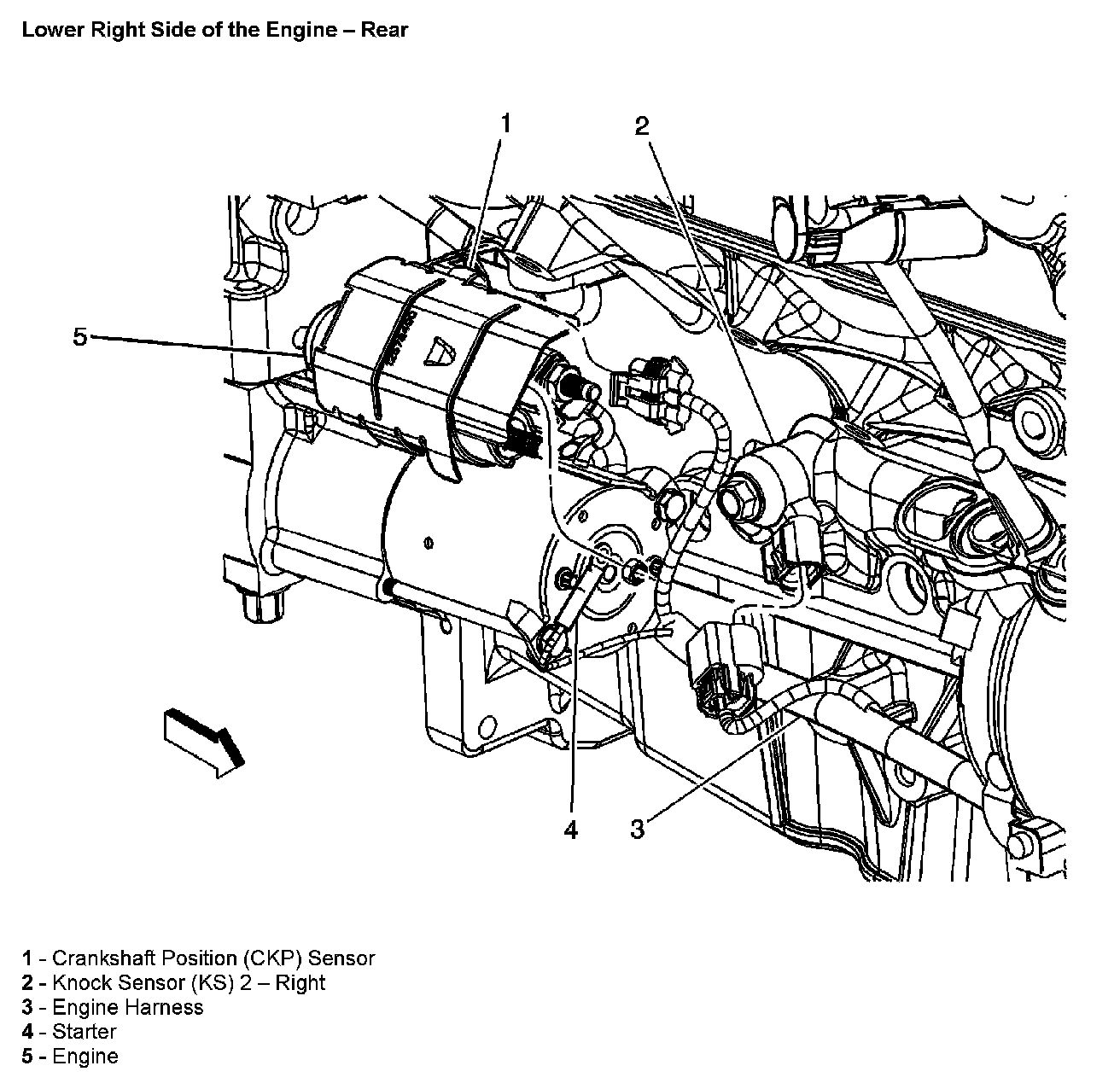

Lower Right Side Of The Engine - Rear:
