Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

Coolant Temperature Sensor/Switch (For Computer): Locations

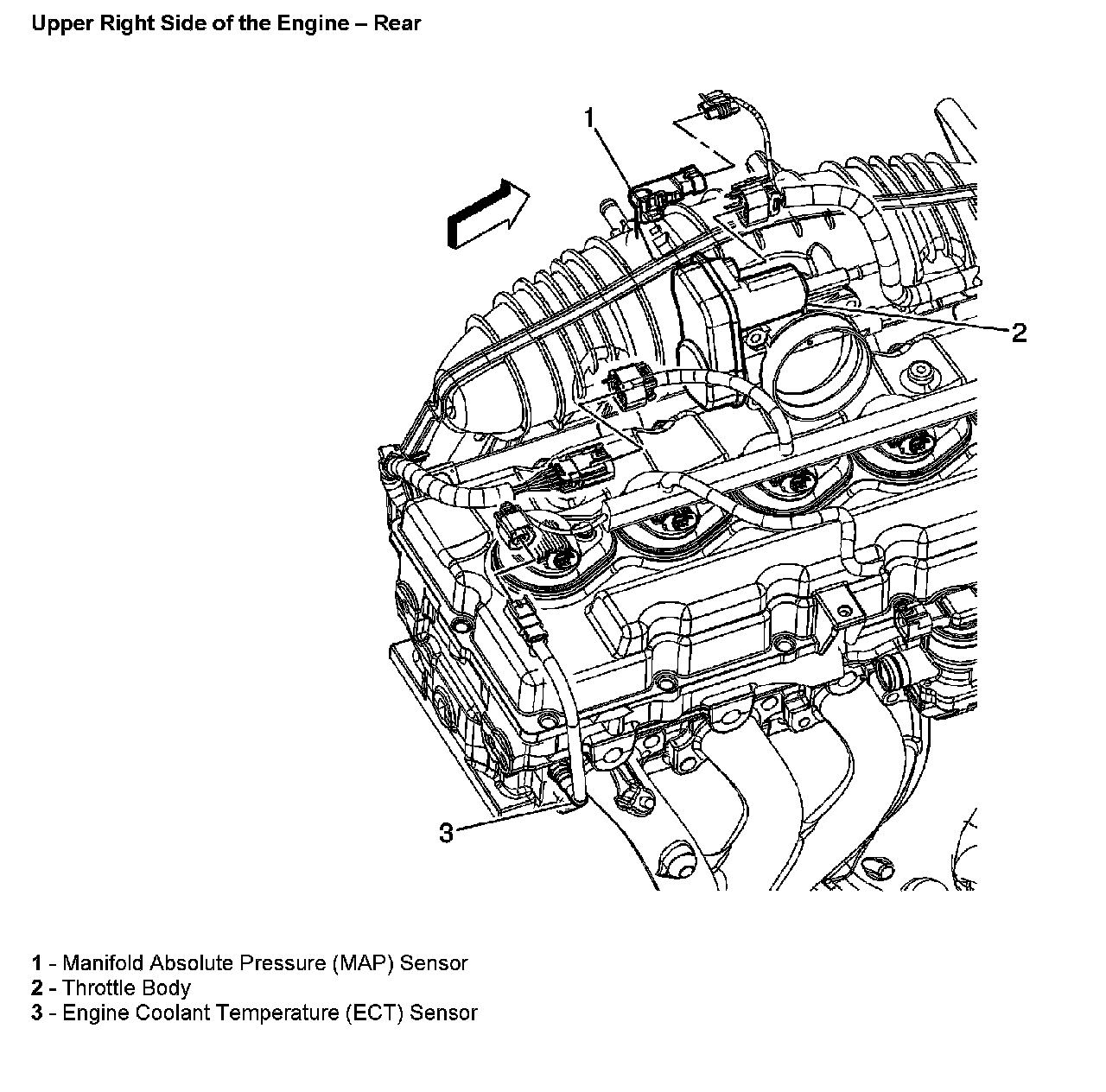

Upper Right Side Of The Engine - Rear:

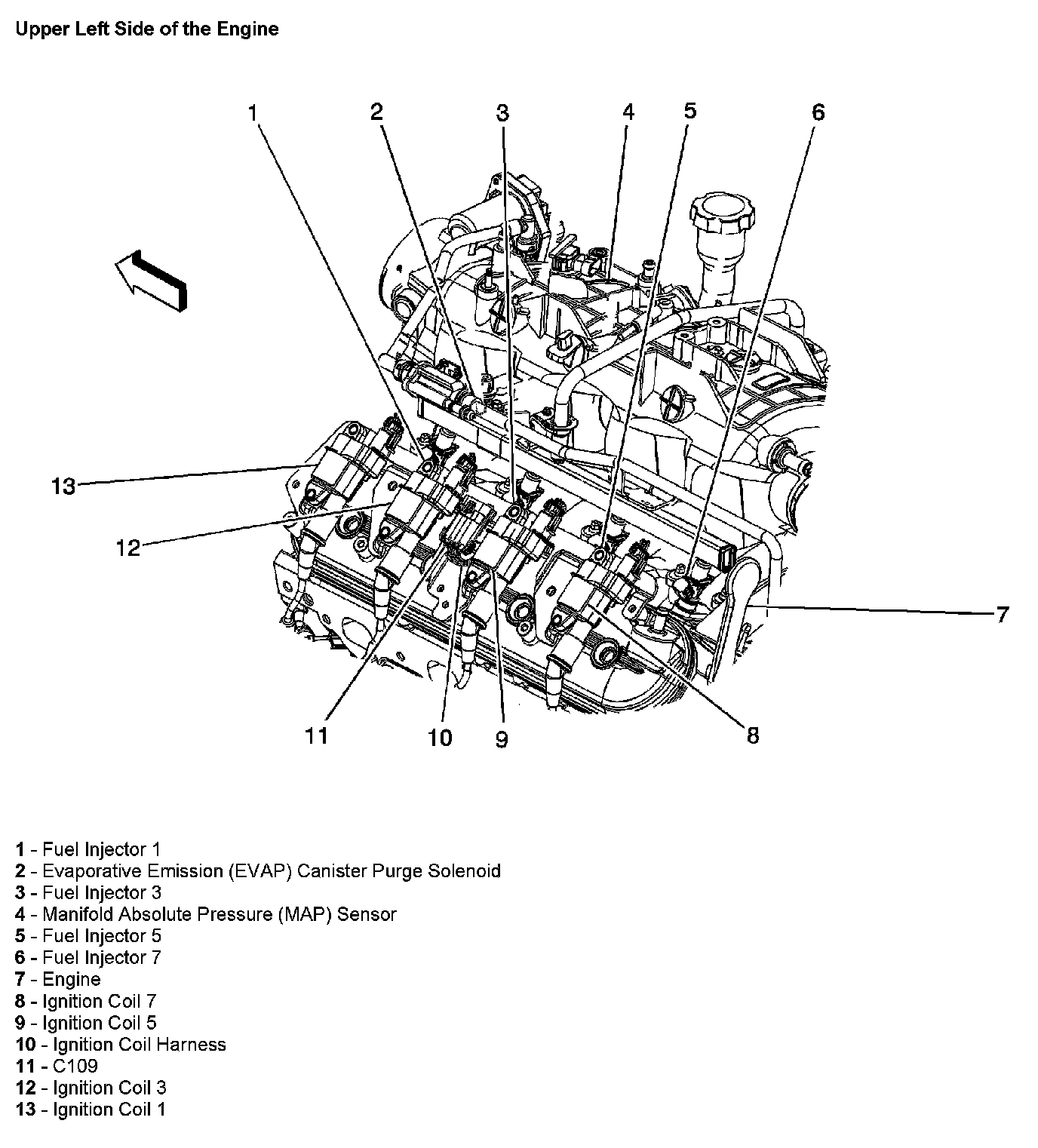

Upper Left Side Of The Engine:
