Connector Views
Connector Views

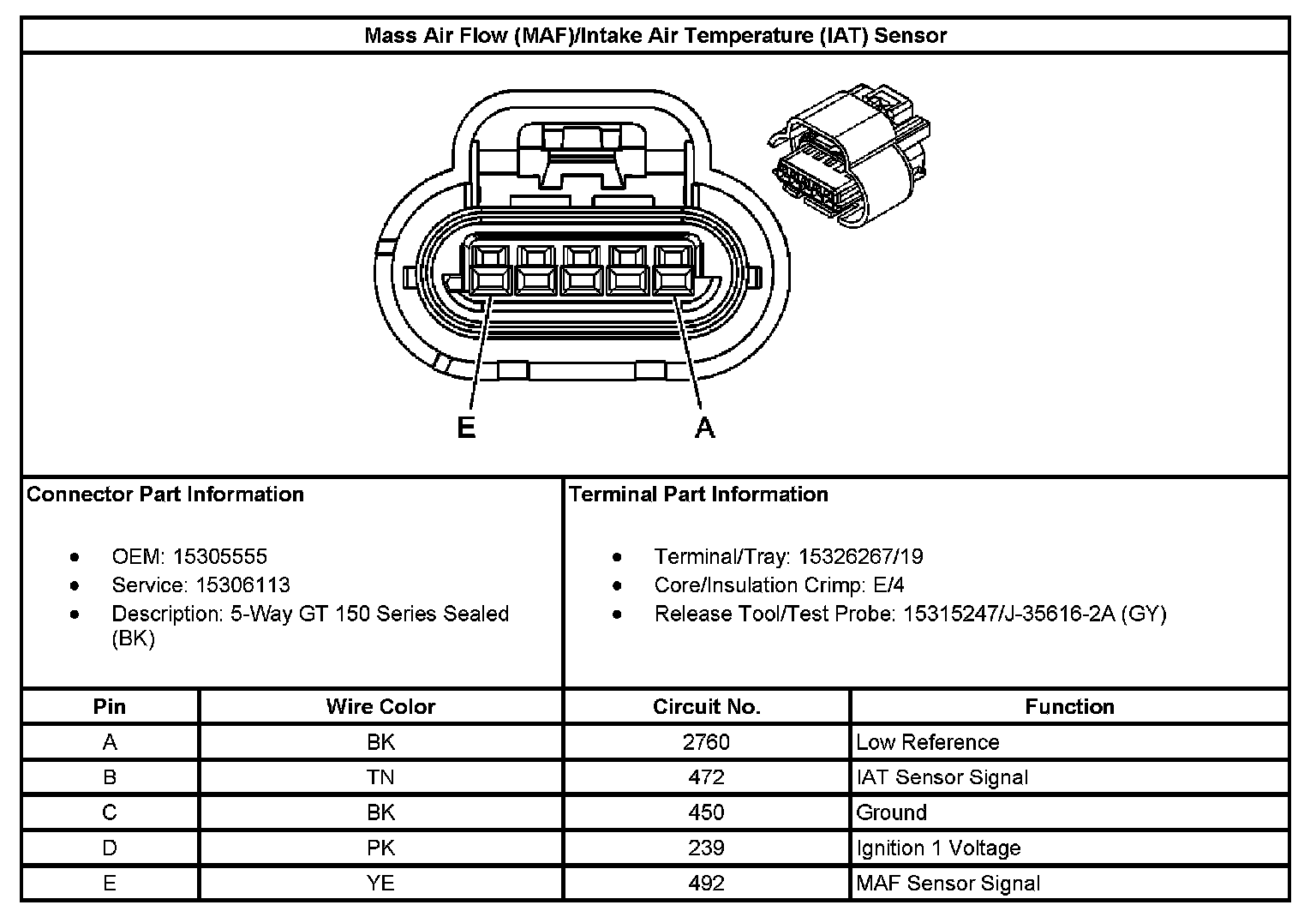

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor:

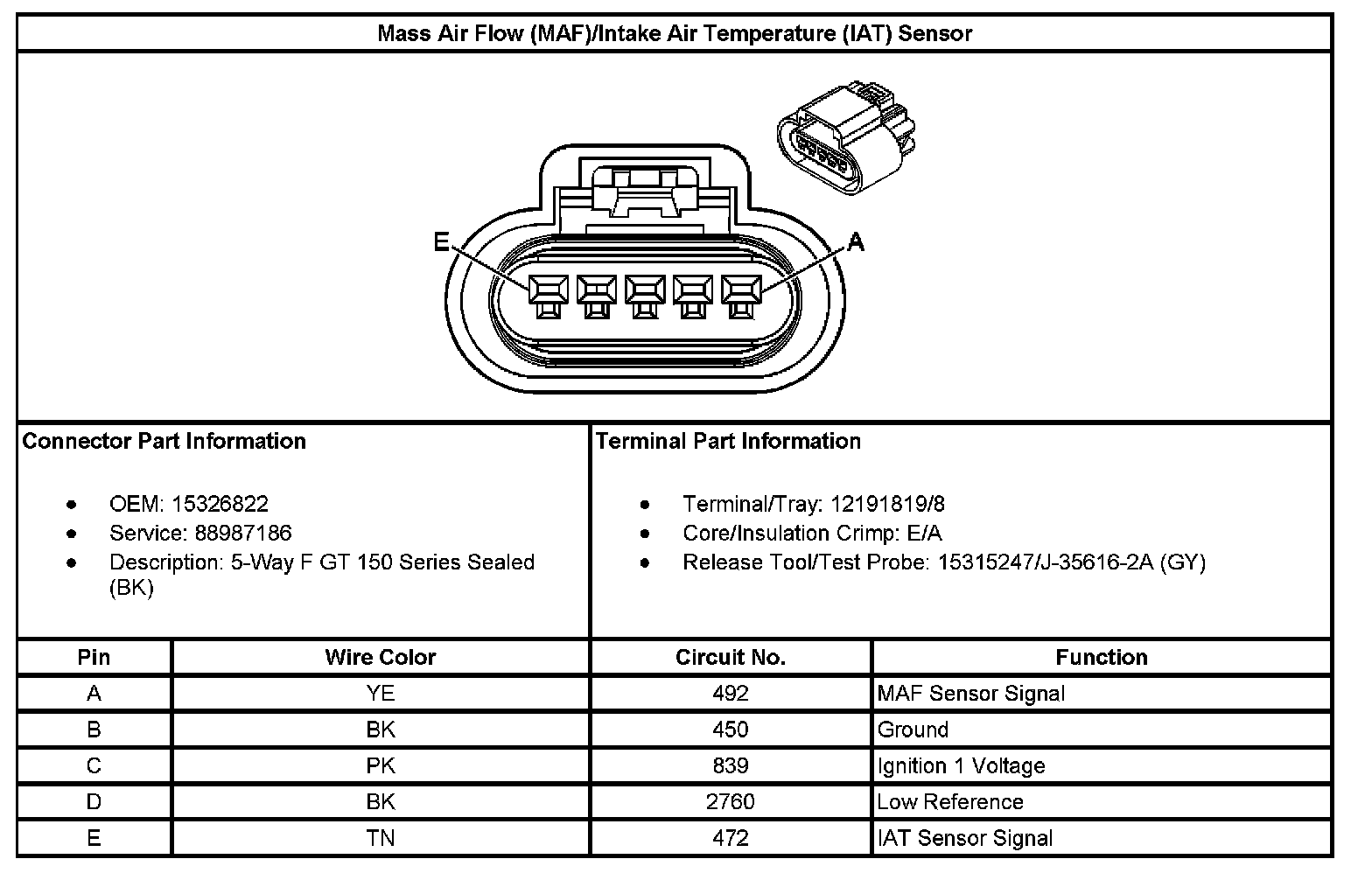

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor:
