Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) C3

Engine Control Module (ECM) C3

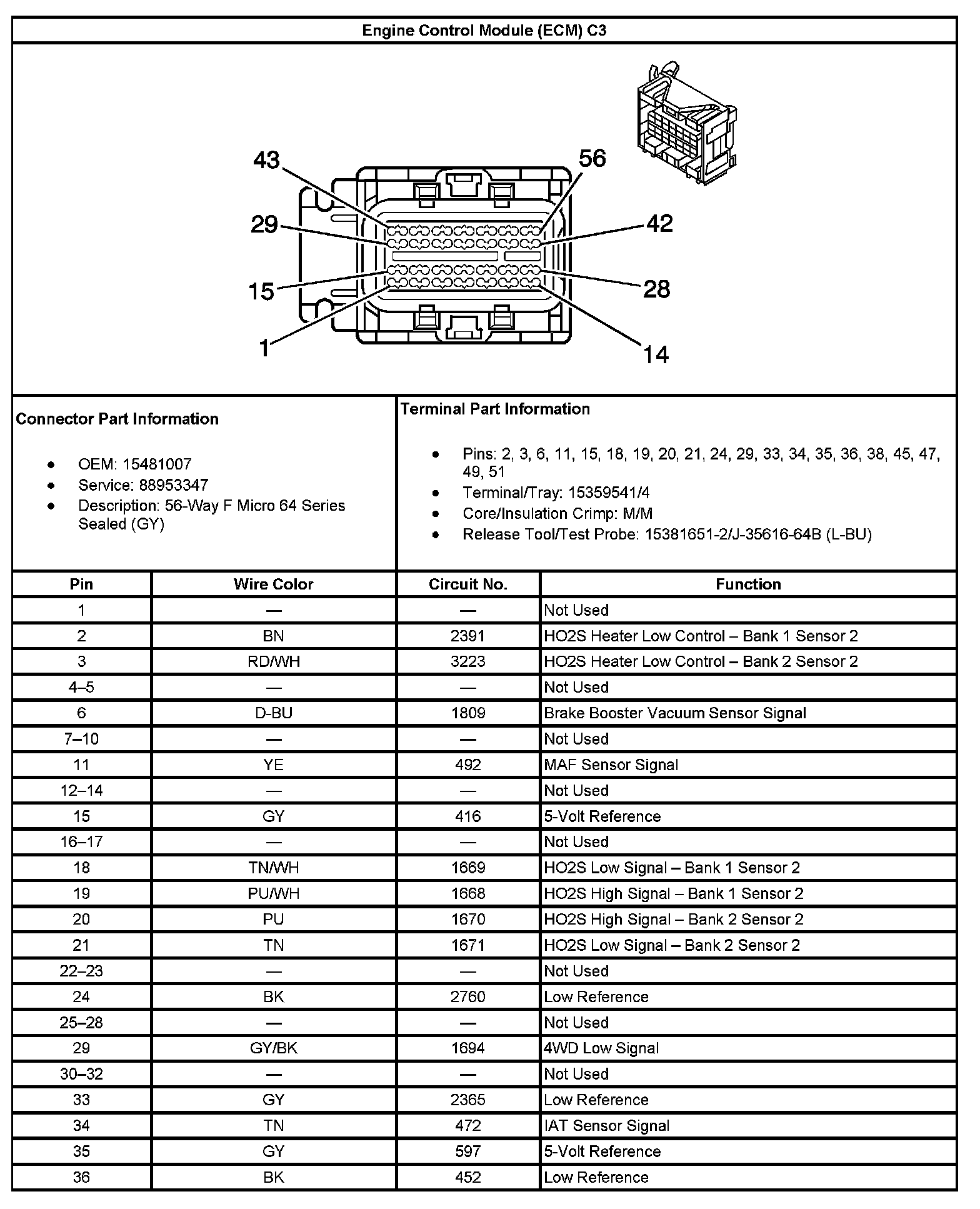

Engine Control Module (ECM) C3 (Part 1):

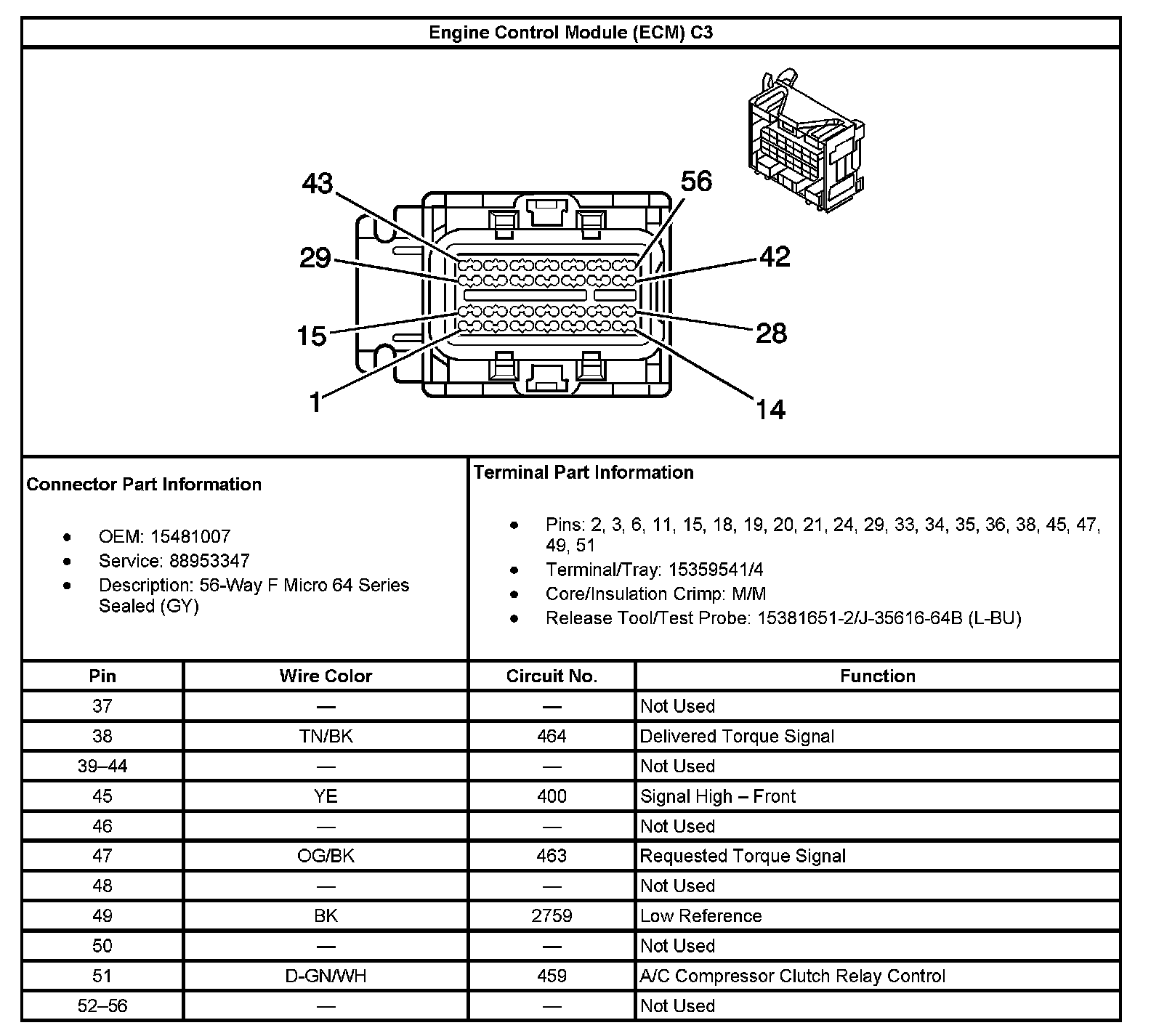

Engine Control Module (ECM) C3 (Part 2):
