Electronic Brake Control Module



Electronic Brake Control Module (EBCM)

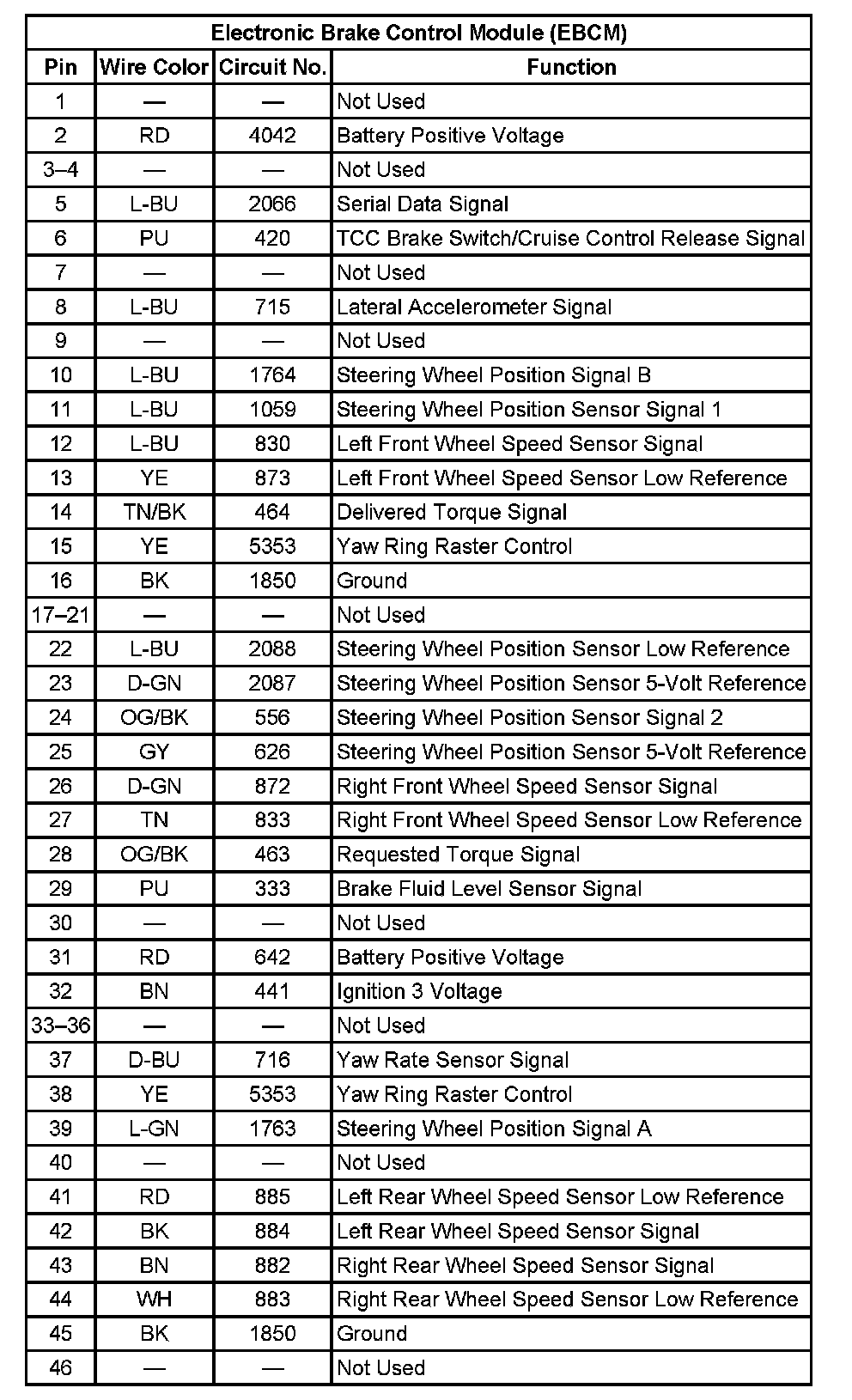

Electronic Brake Control Module (EBCM):

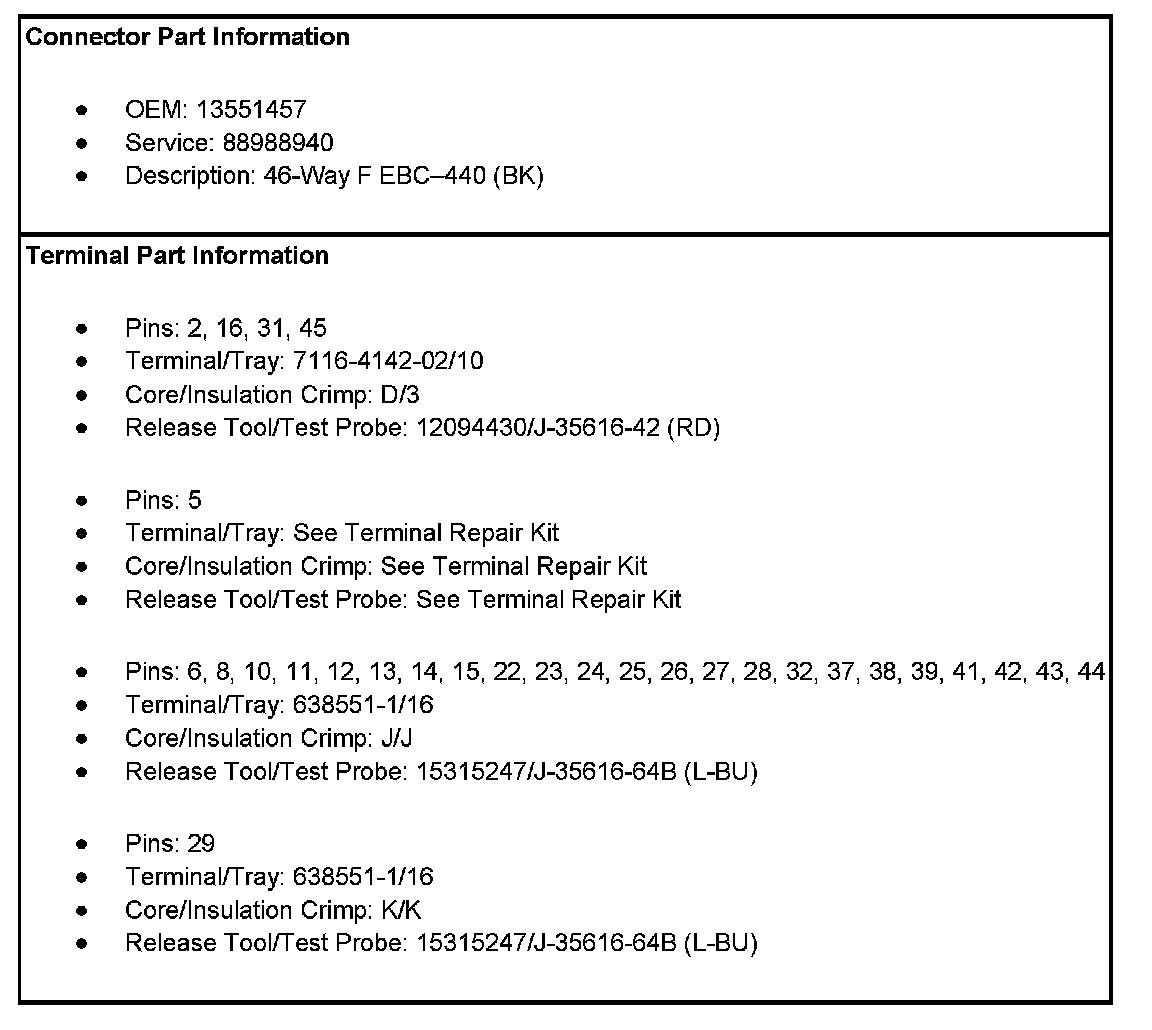

Electronic Brake Control Module (EBCM):




Electronic Brake Control Module (EBCM):
