Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

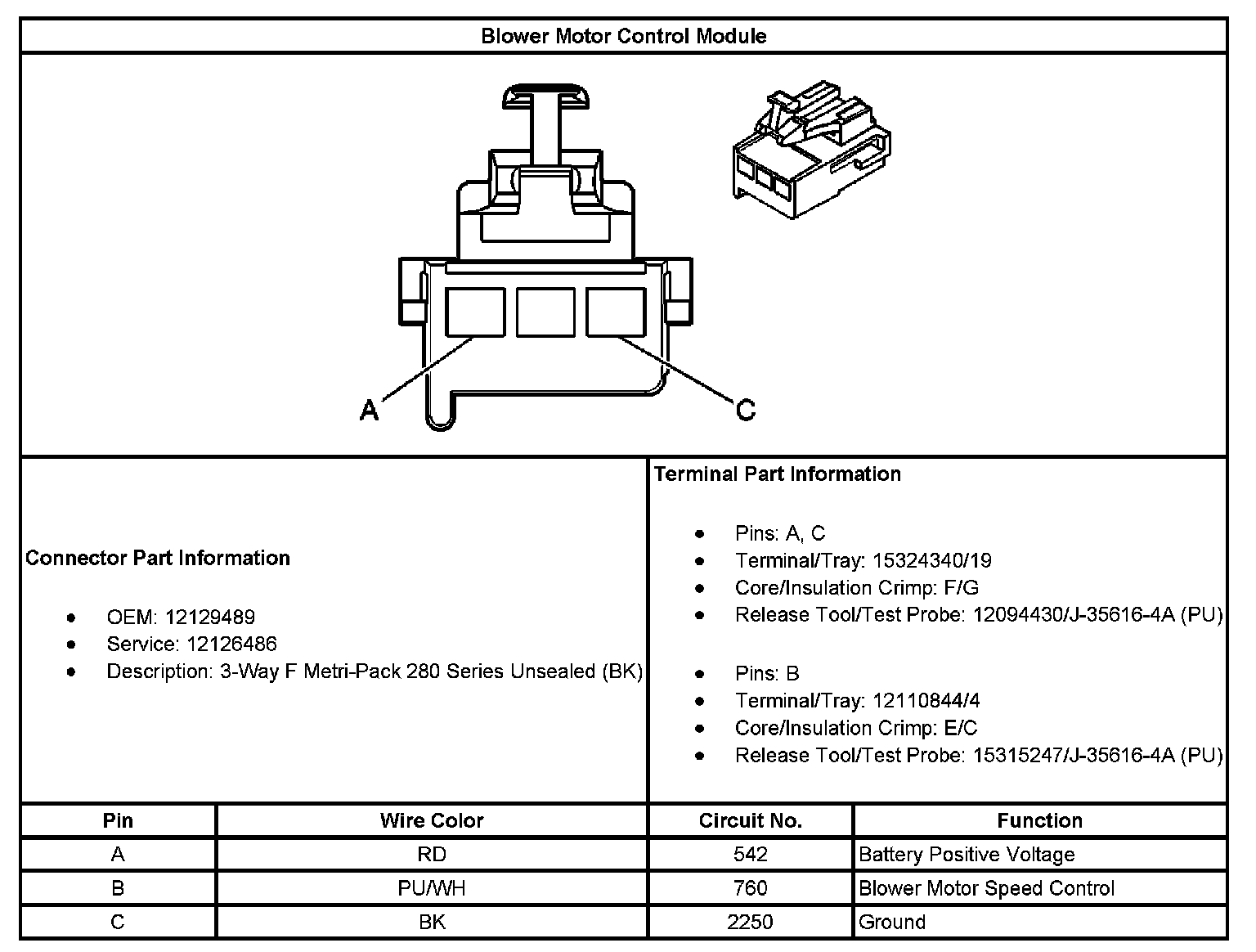

Blower Motor Control Module:

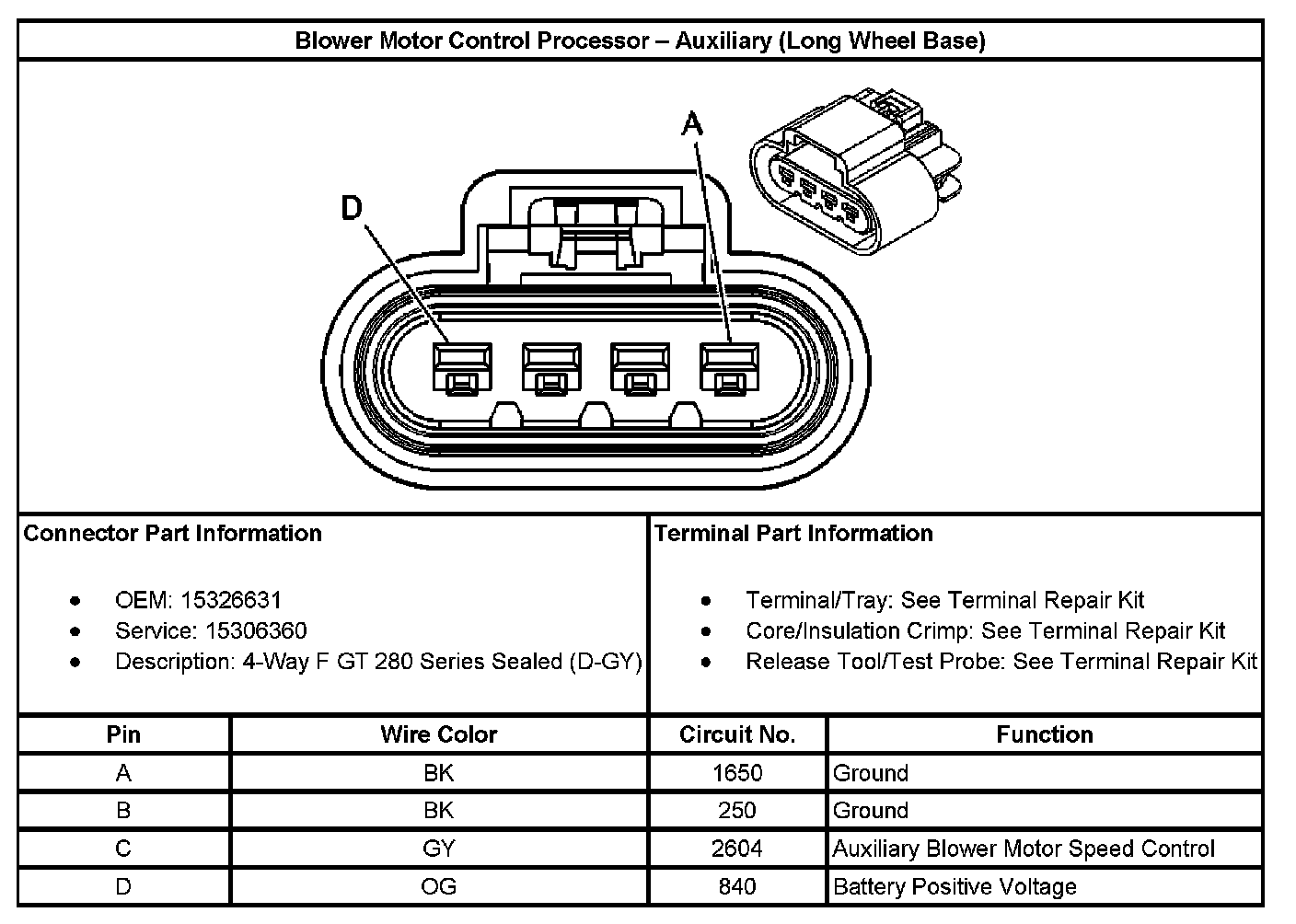

Blower Motor Control Processor - Auxiliary (Long Wheel Base):
