Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC System - Automatic >> HVAC Control Module C2

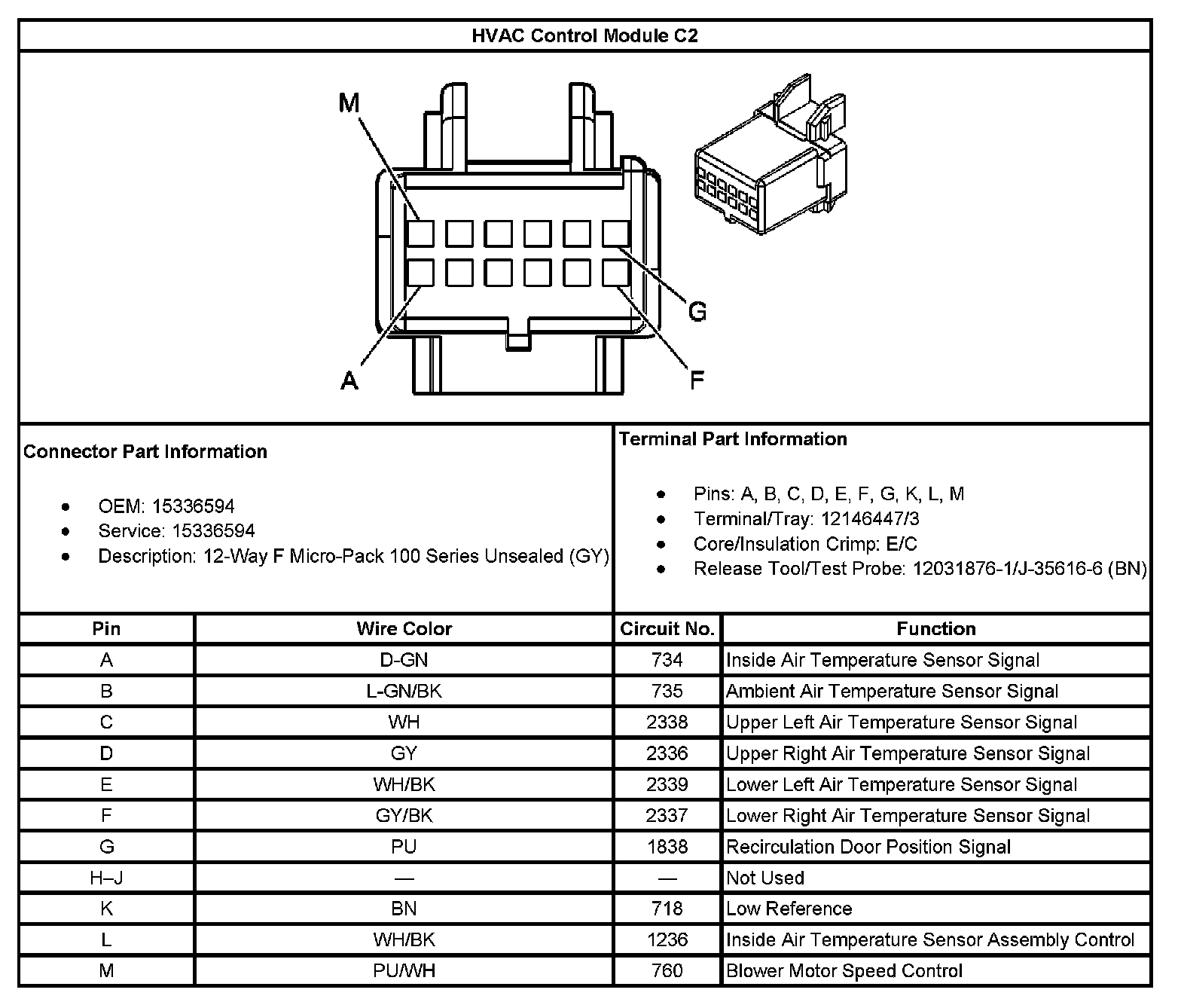

HVAC Control Module C2

HVAC Control Module C2:
