Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

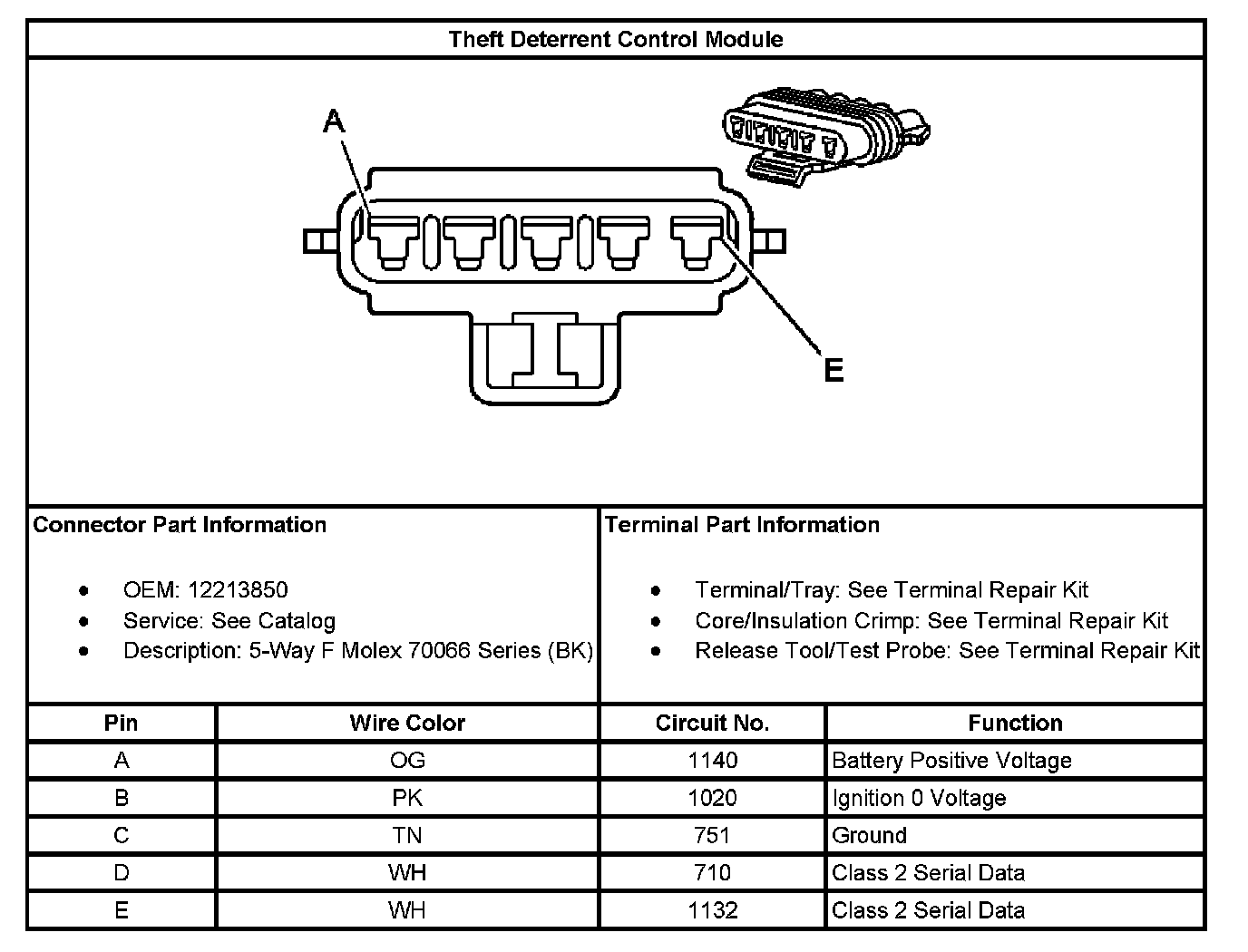

Theft Deterrent Control Module:
