Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Components

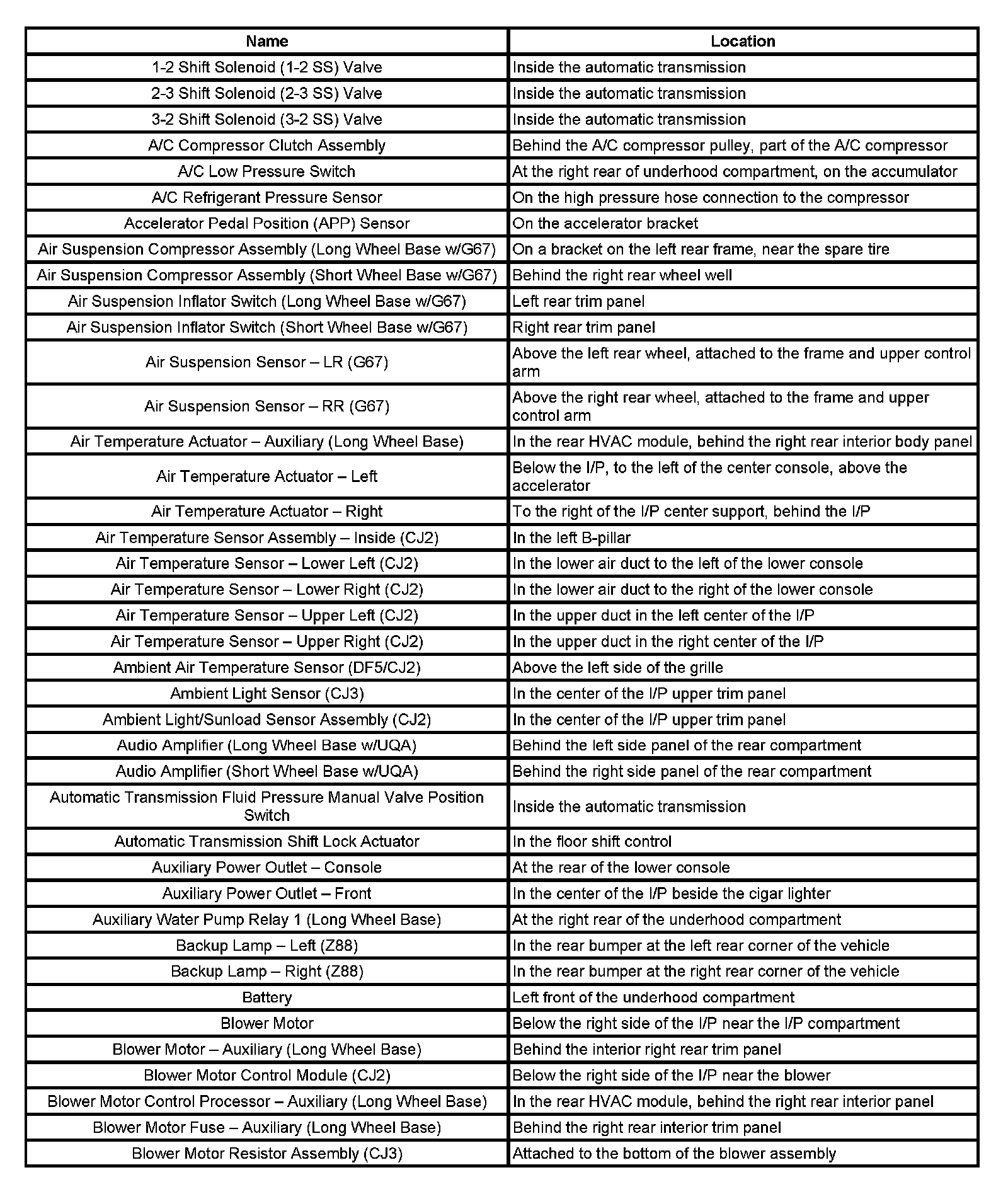

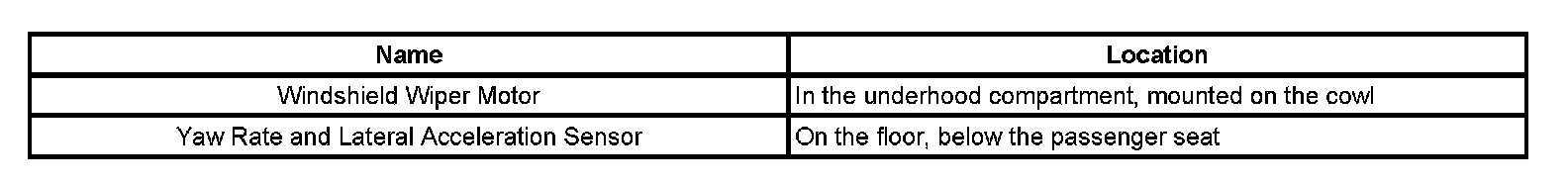

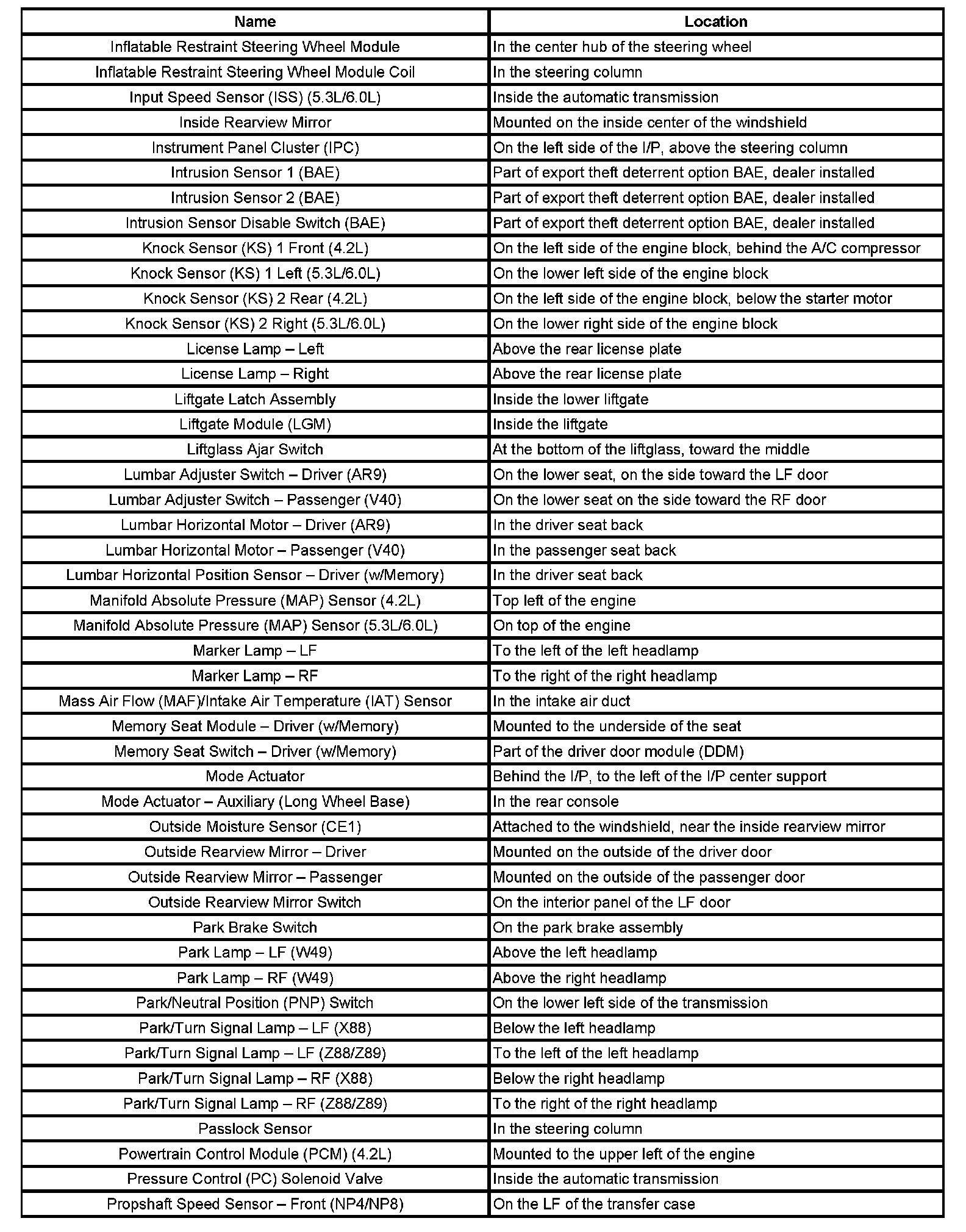

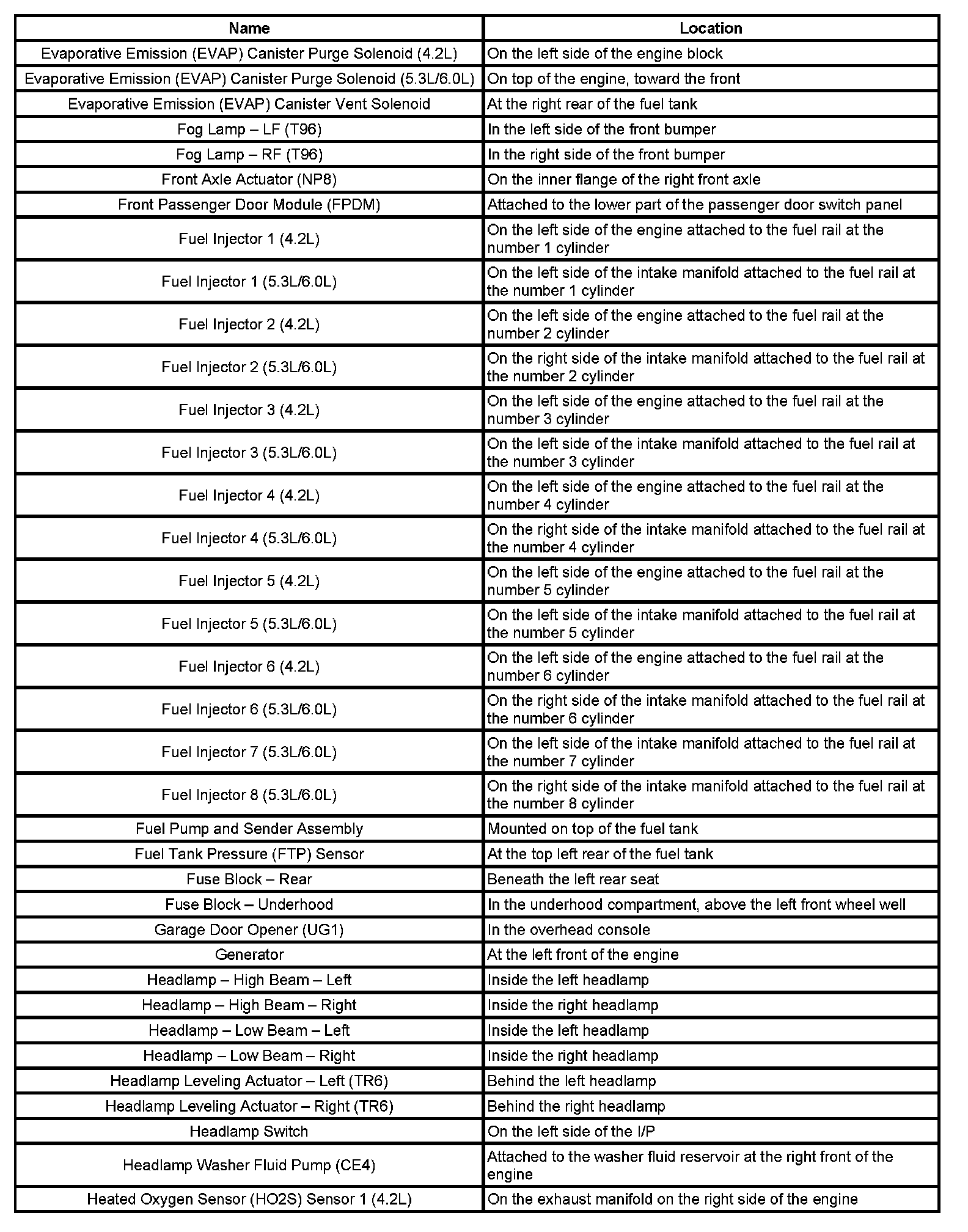

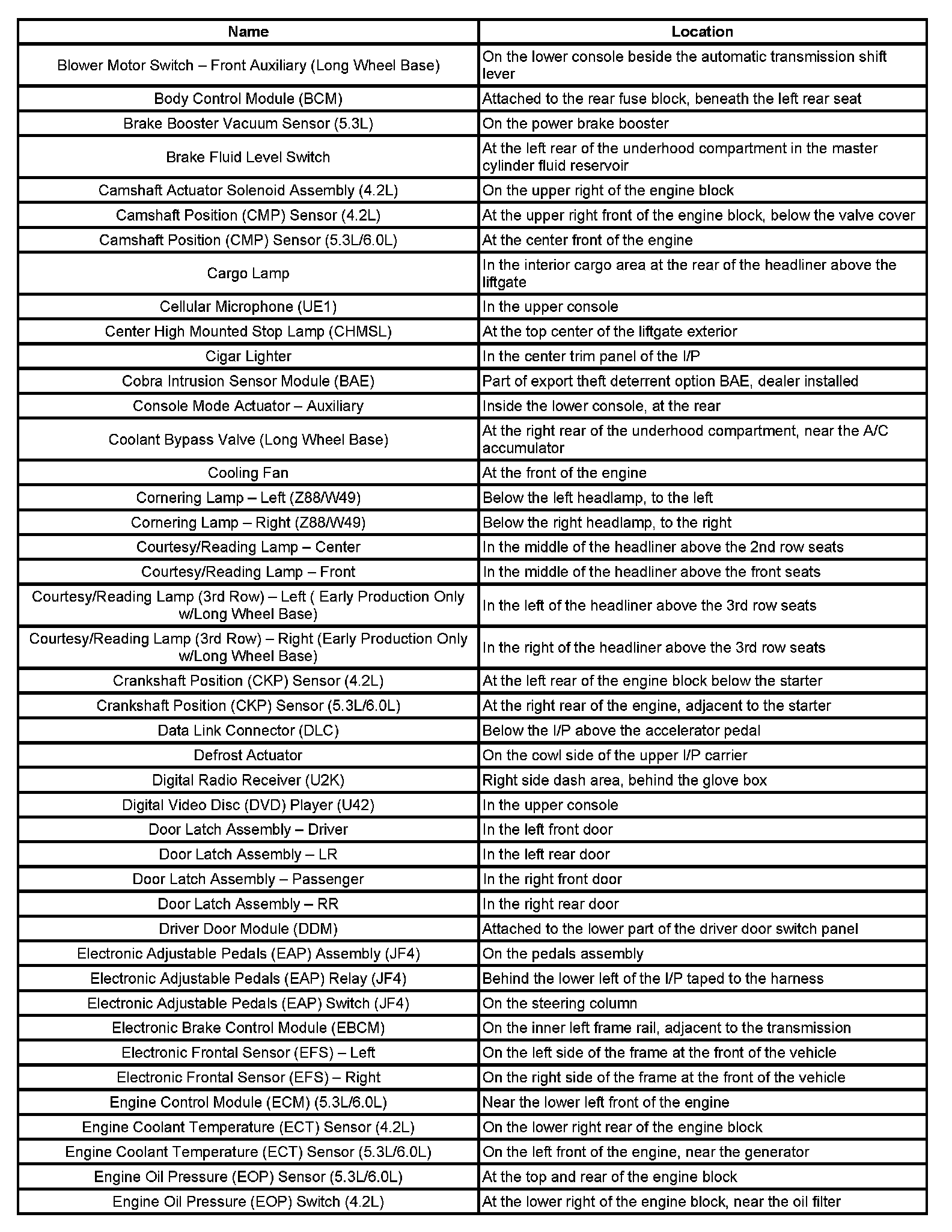

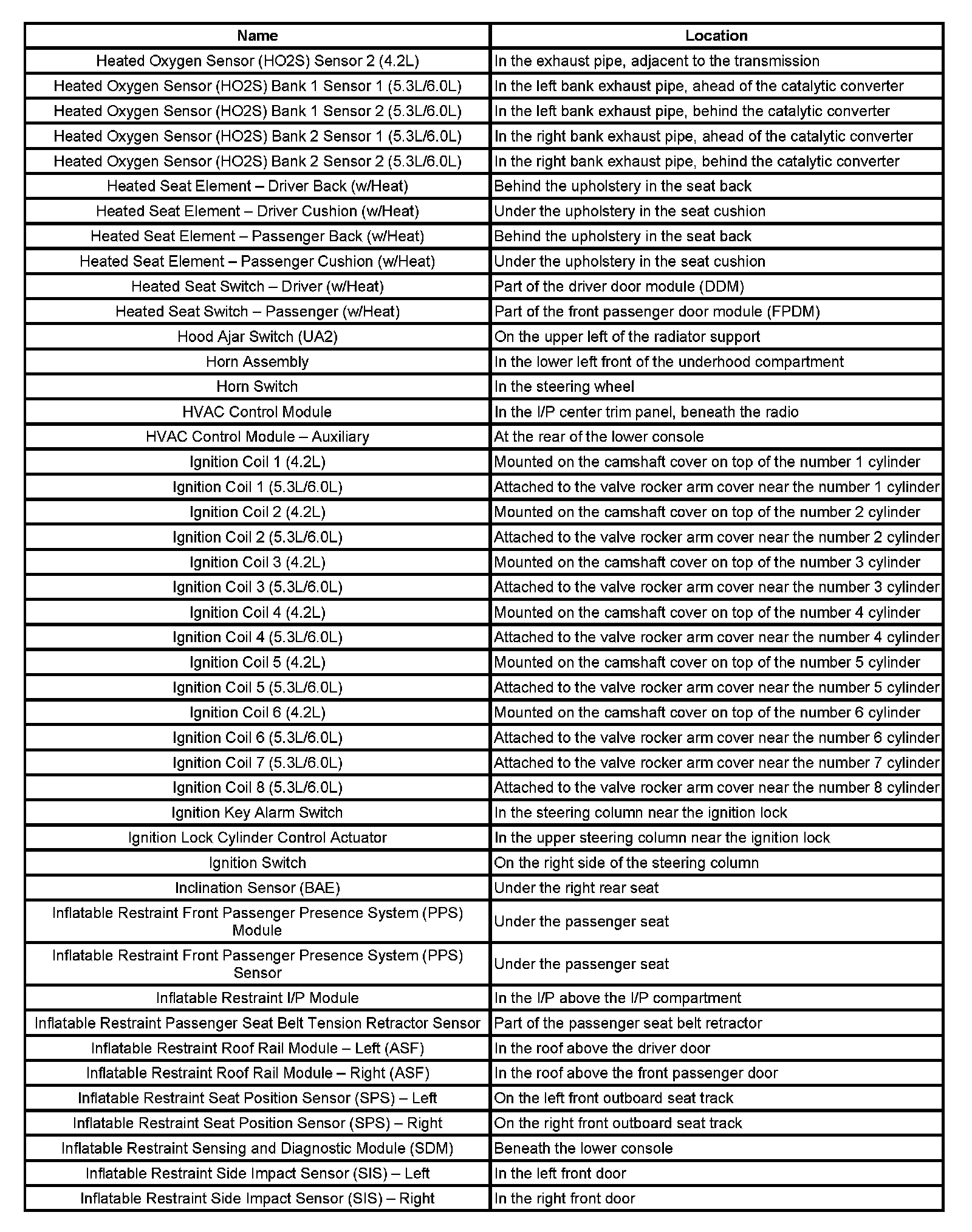

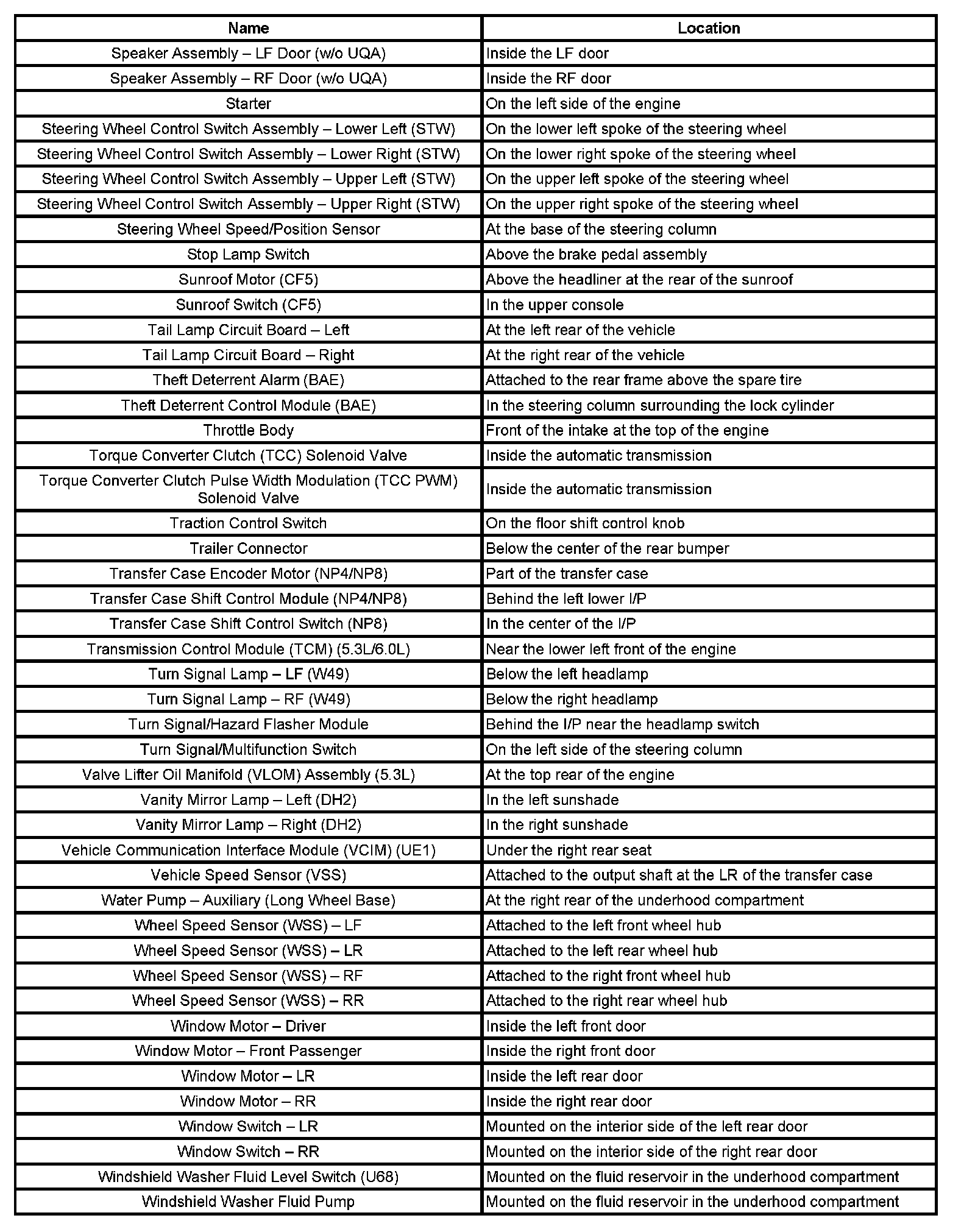

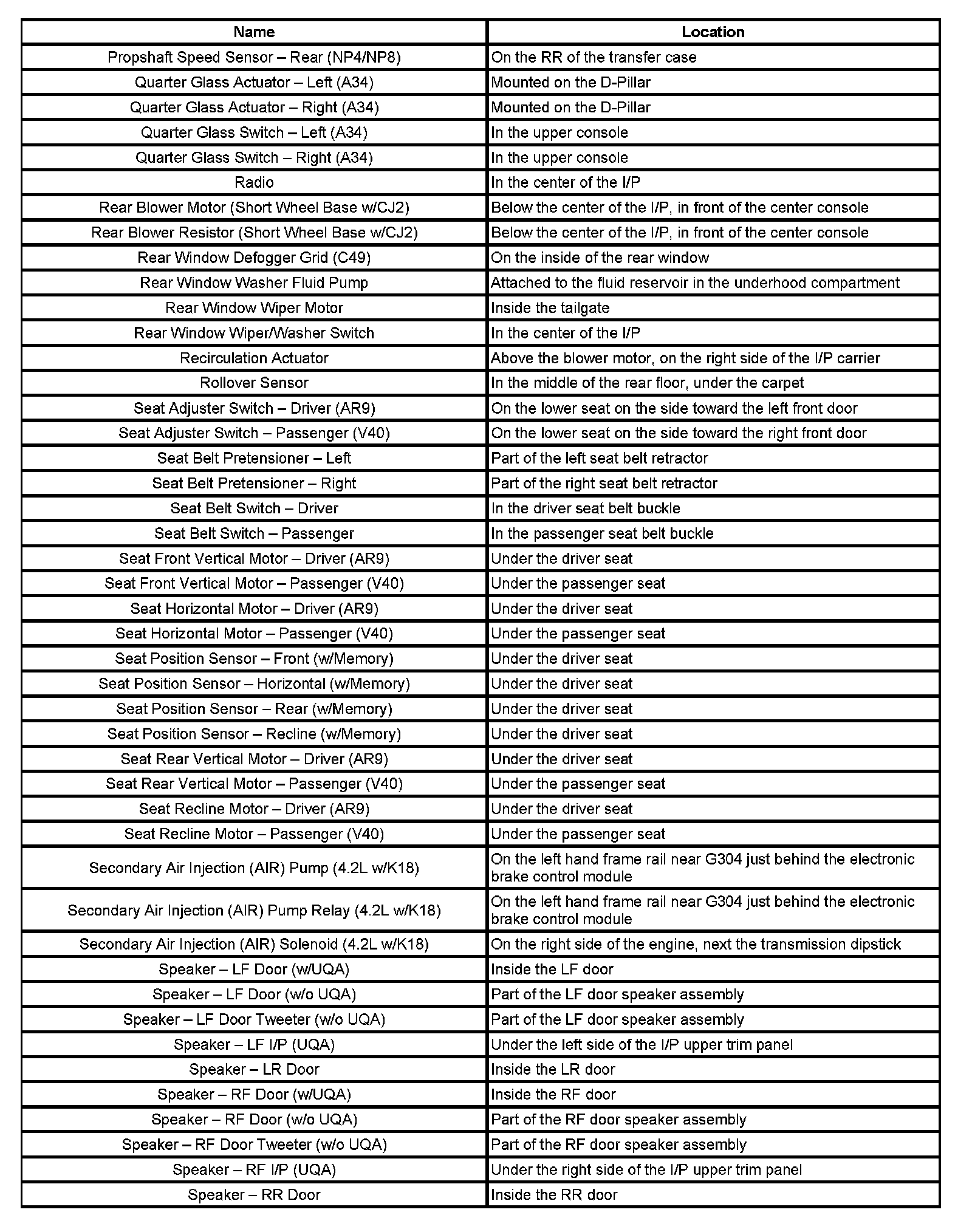

Components



1-2 Sh - Bl:




Bl - En:




Ev - He:




He - In:




In - Pr:




Pr - Sp:




Sp - Wi:




Wi - Ya:
