Oxygen Sensor: Locations

98. Left Front Exhaust Downpipe:

99. Rear of Left Catalytic Converter:

101. Rear of Right Catalytic Converter:

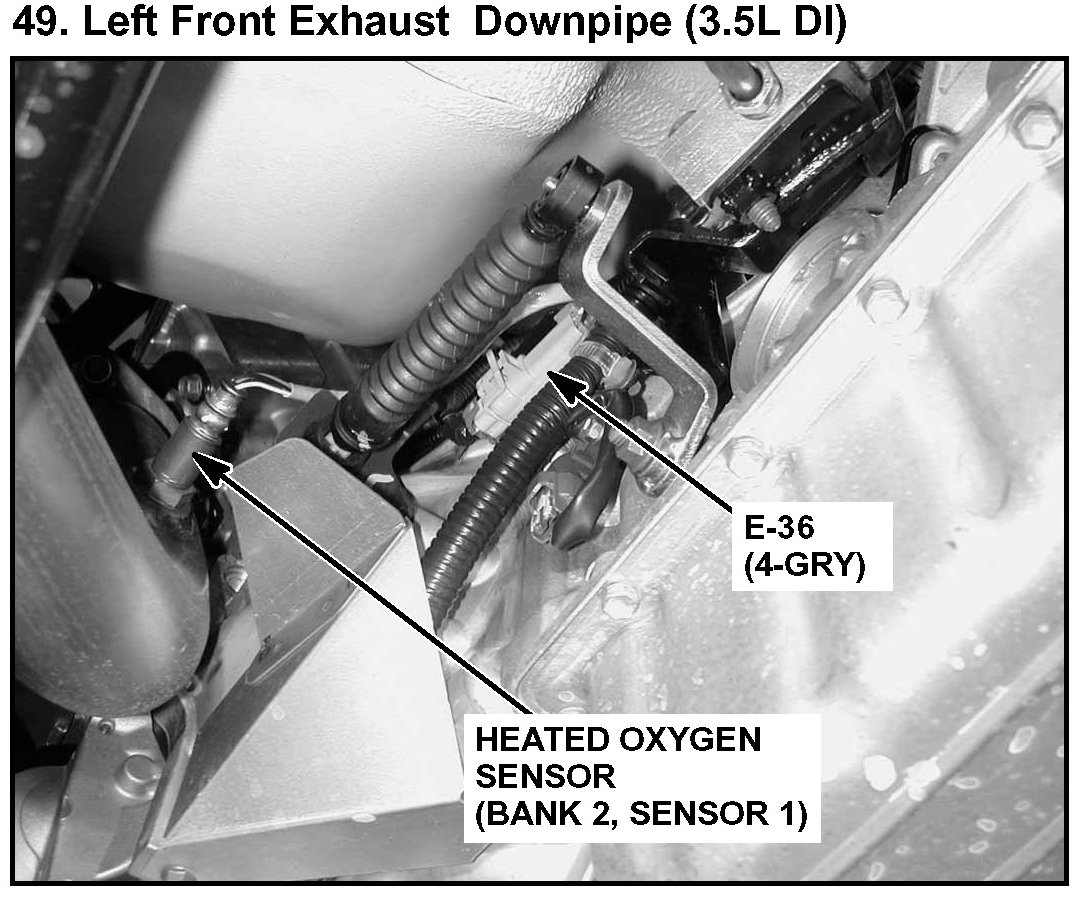

49.Left Front Exhaust Downpipe (3.5L DI):

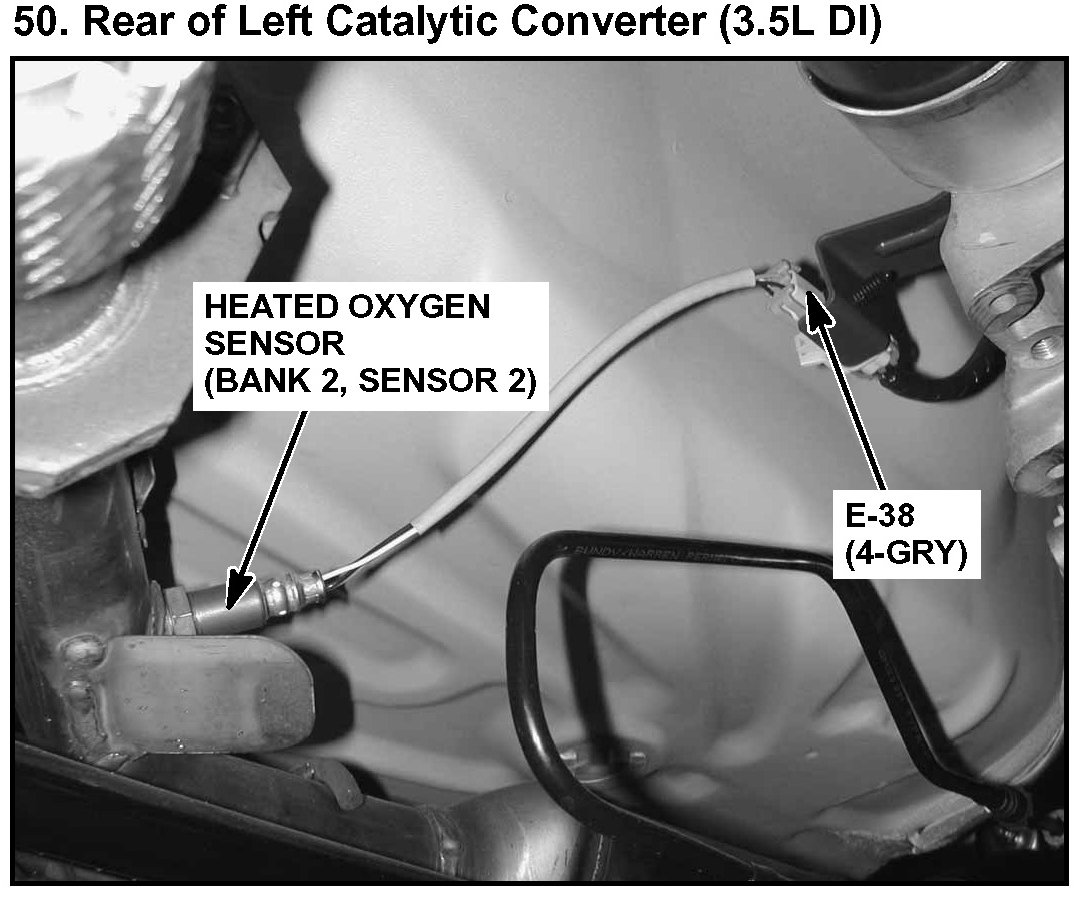

50.Rear Of Left Catalytic Converter (3.5L DI):

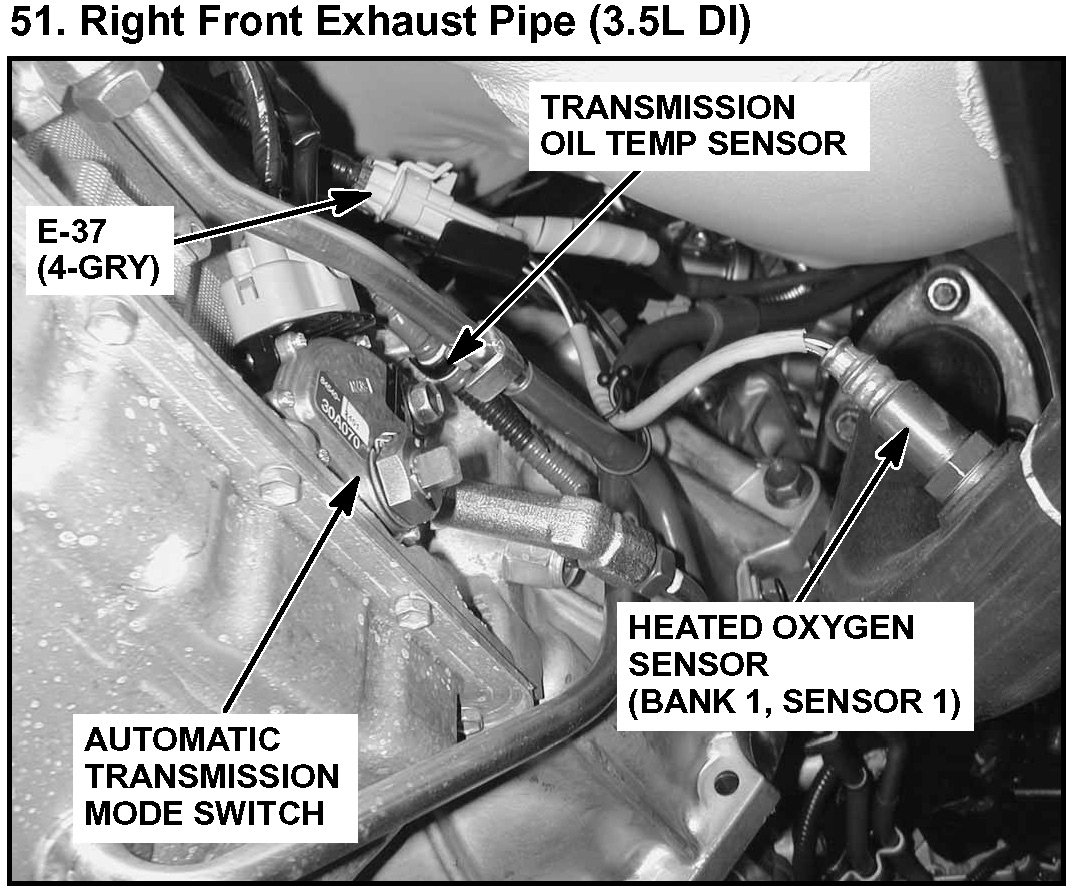

51.Right Front Exhaust Pipe (3.5L DI):

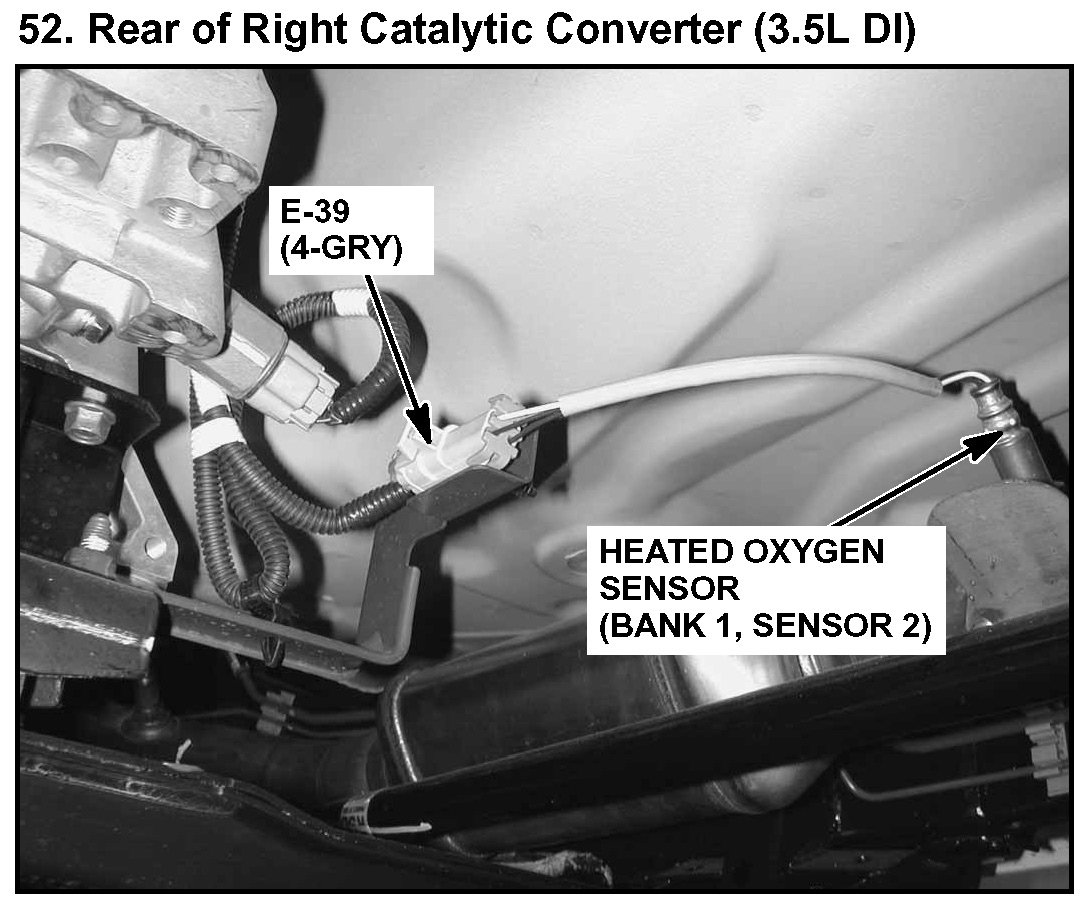

52.Rear Of Right Catalytic Converter (3.5L DI):
