Home >> Isuzu >> 2004 >> Rodeo 2WD V6-3.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Ground Distribution

Ground Distribution

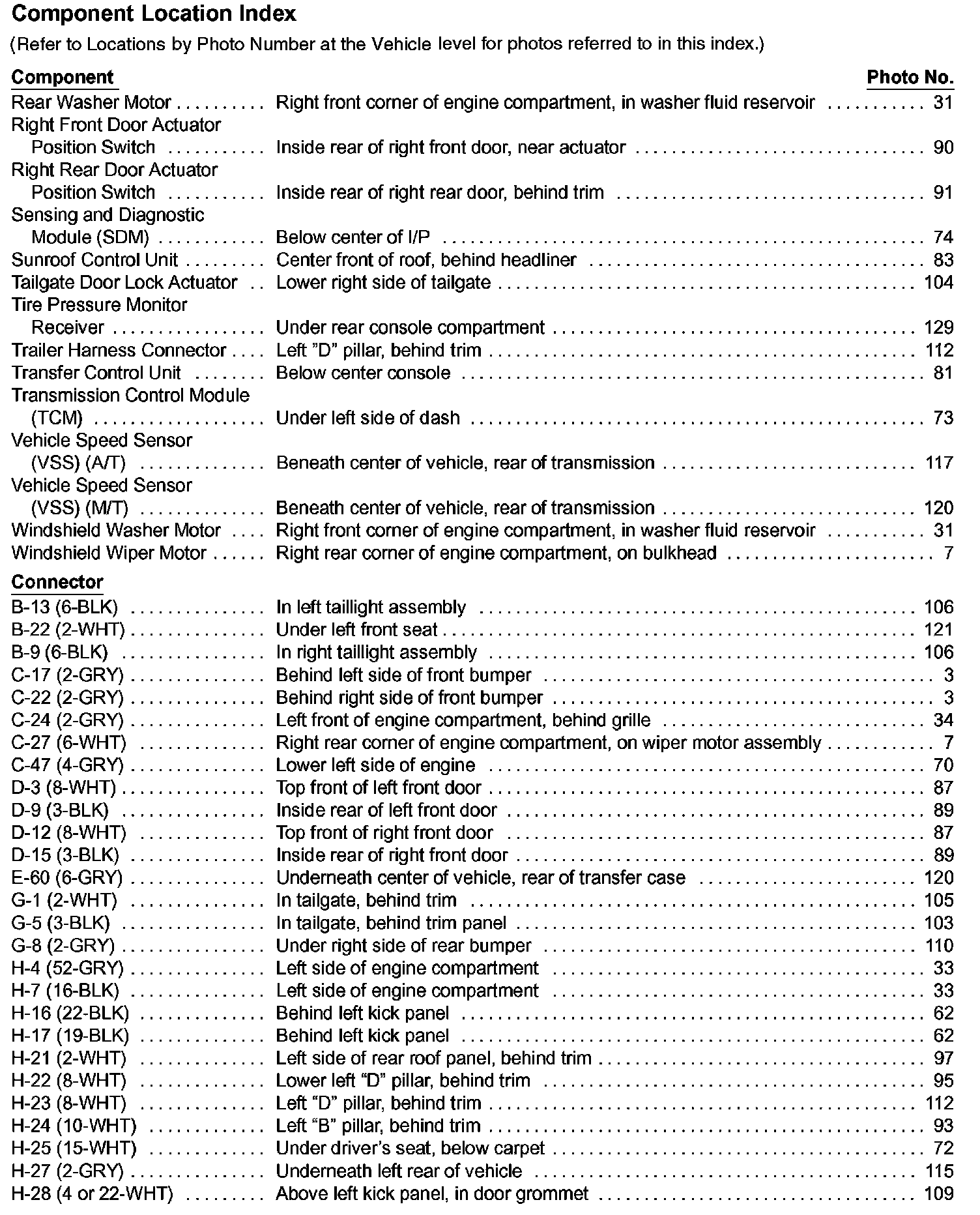

Ground Distribution Part 1:

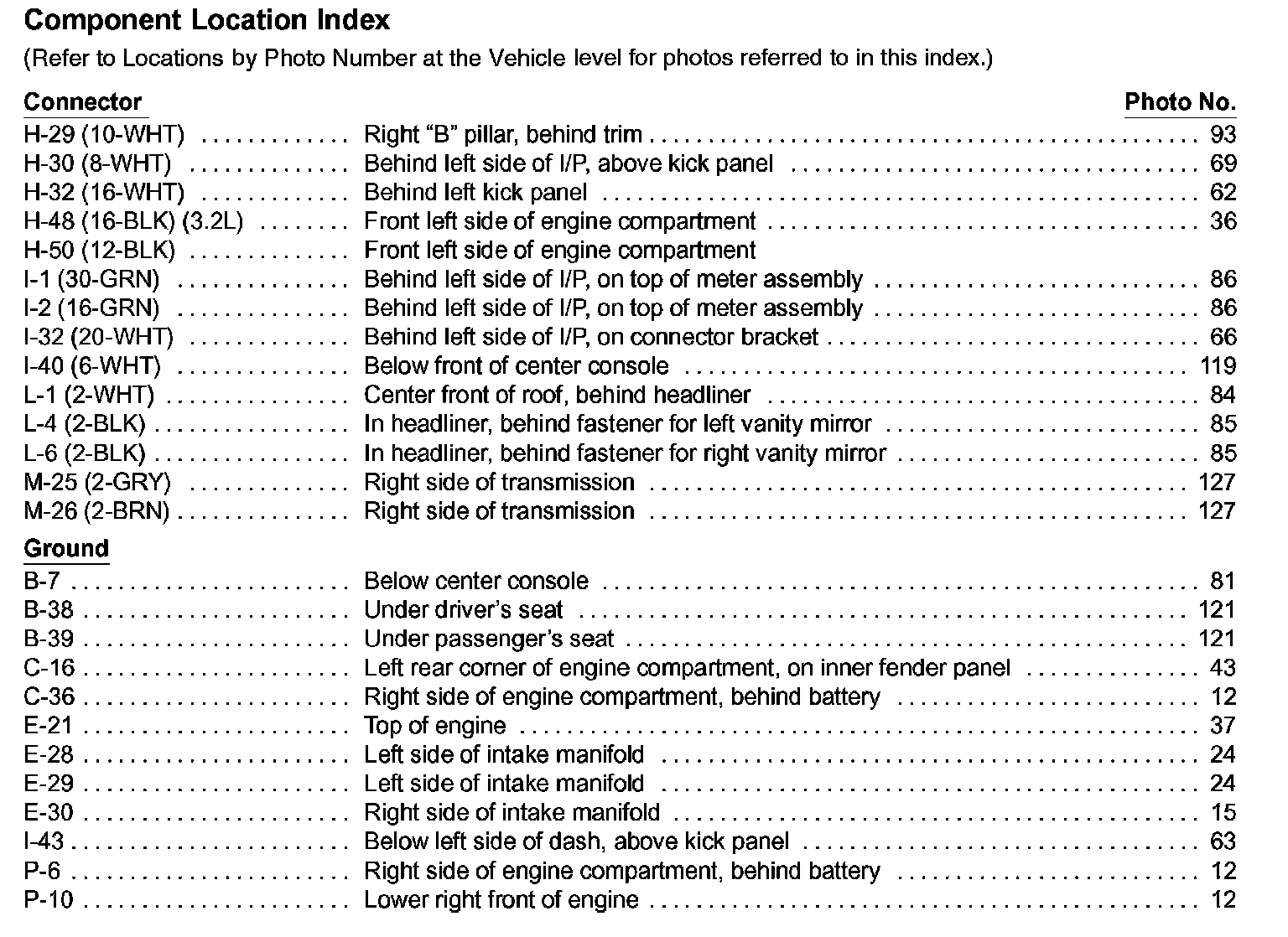

Ground Distribution Part 2:

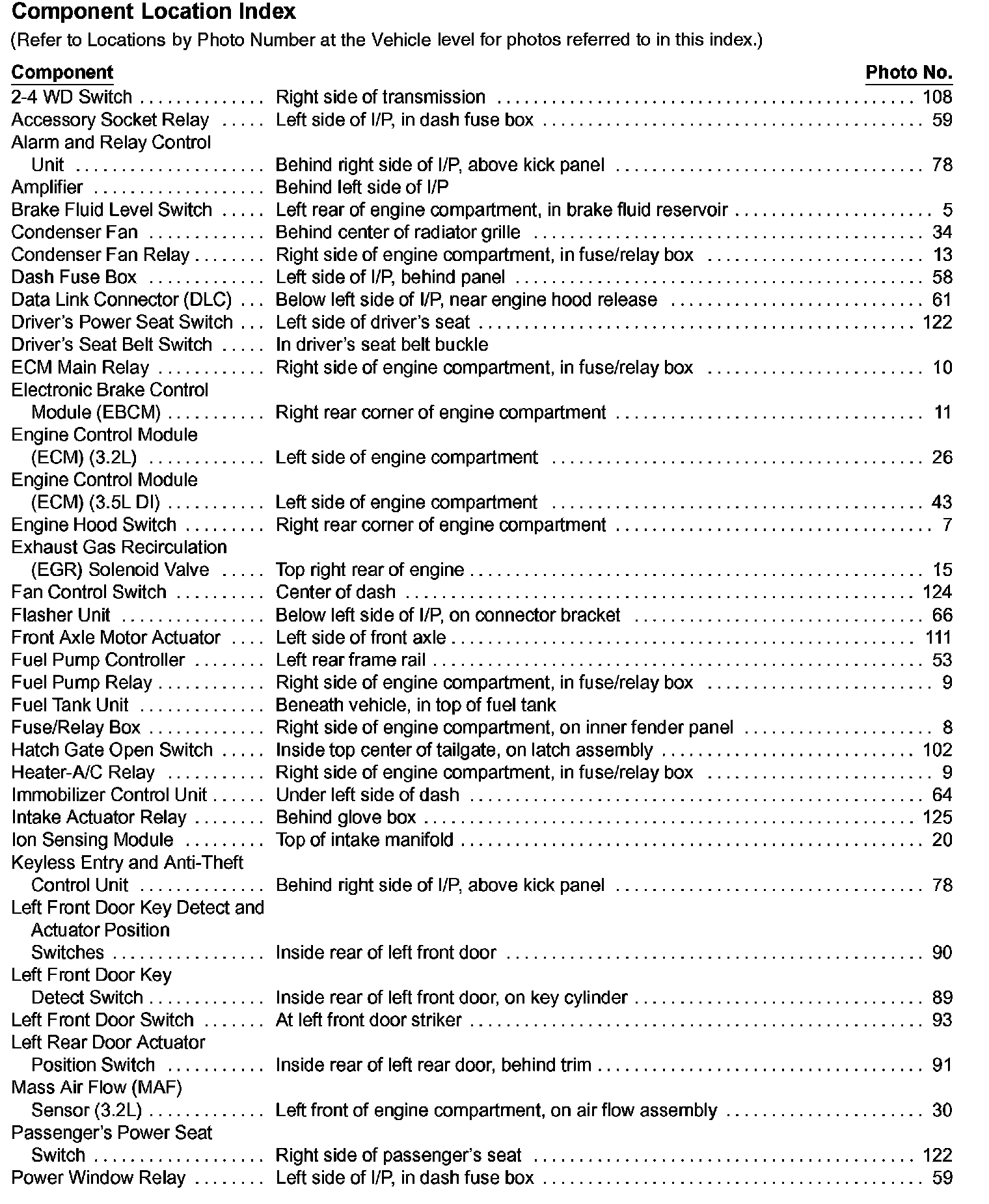

Ground Distribution Part 3:



Ground Distribution Part 1:



Ground Distribution Part 2:



Ground Distribution Part 3:
