Fuel Pressure Sensor: Locations

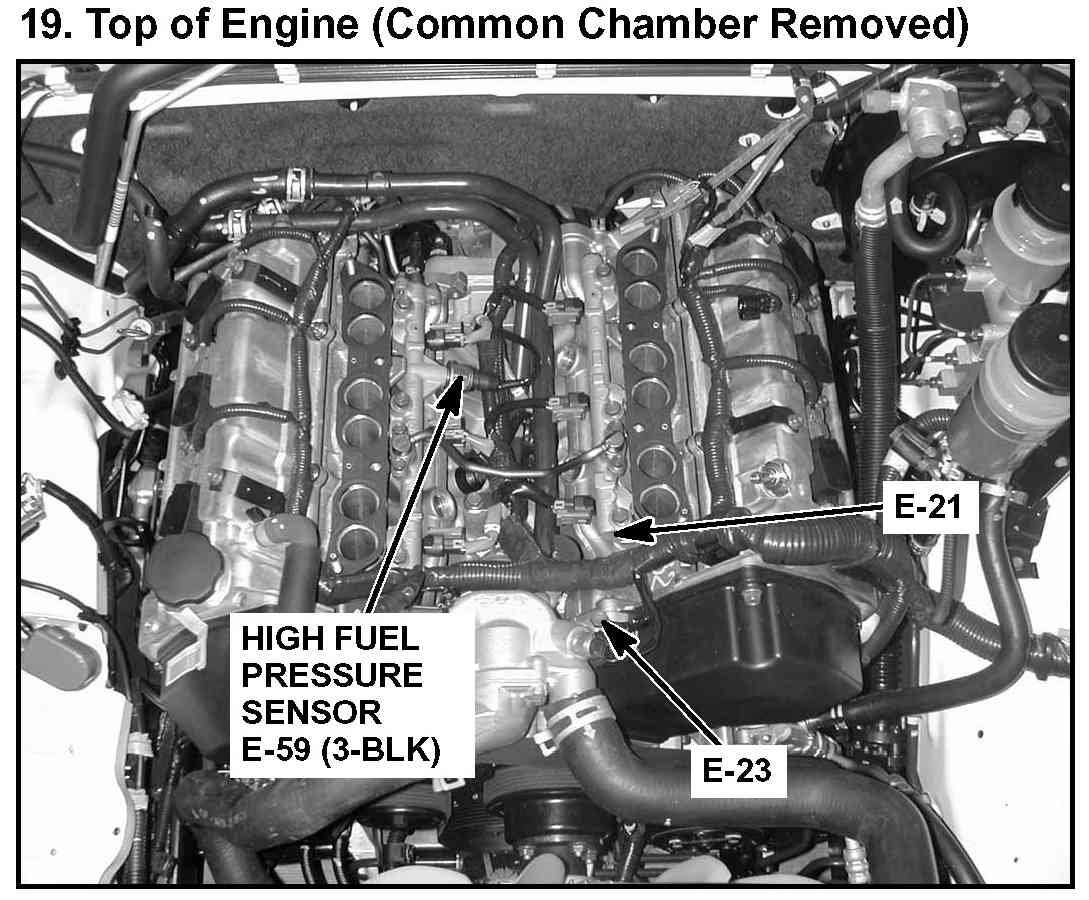

19. Top of Engine (Common Chamber Removed):
Undercarriage Component Locator:
Undercarriage Component Locator:

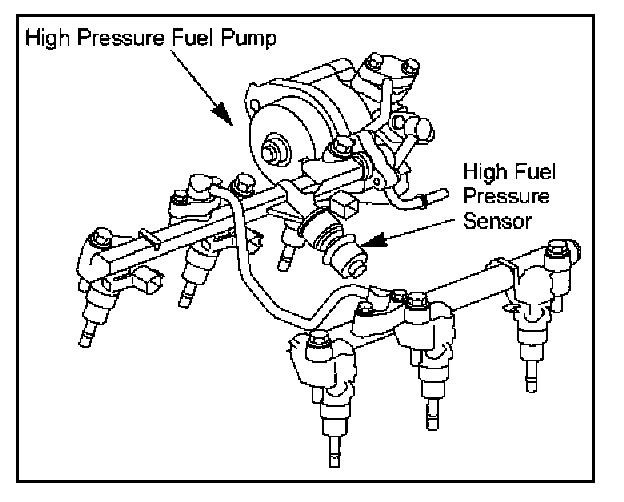

High Pressure Fuel Components:
