Control Module HVAC: Locations

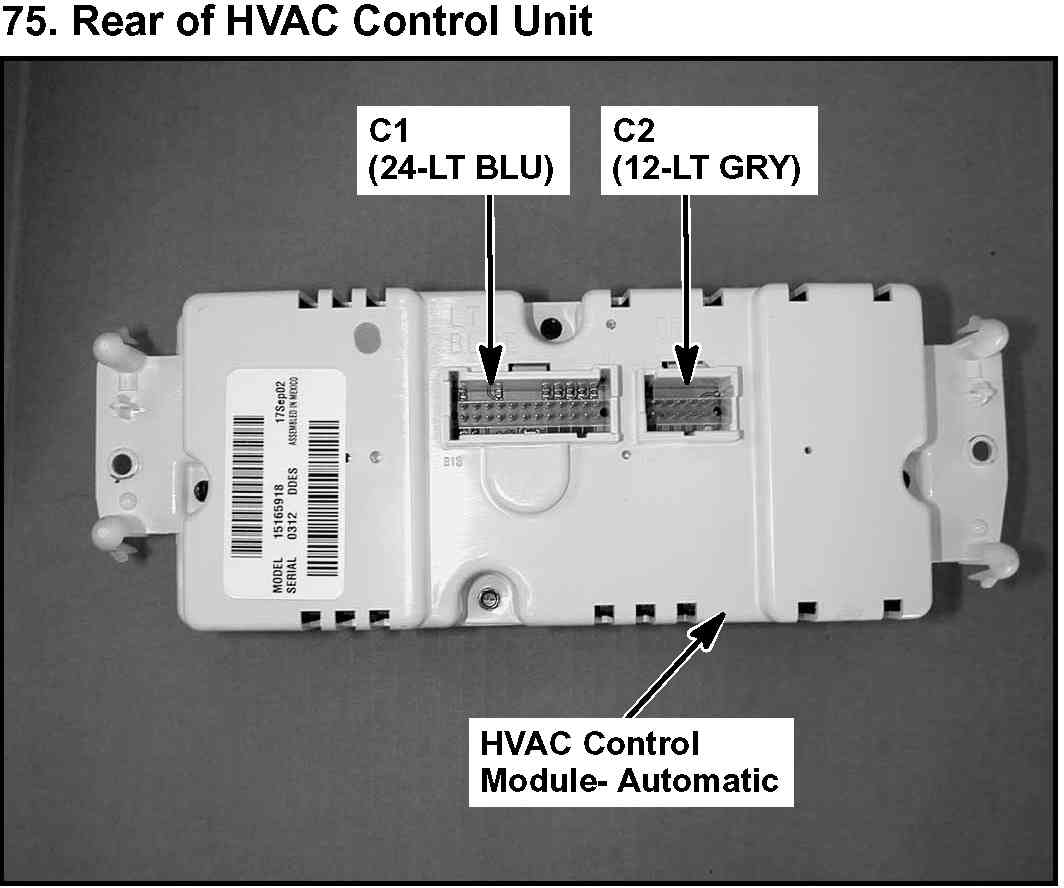

75. Rear Of HVAC Control Unit:

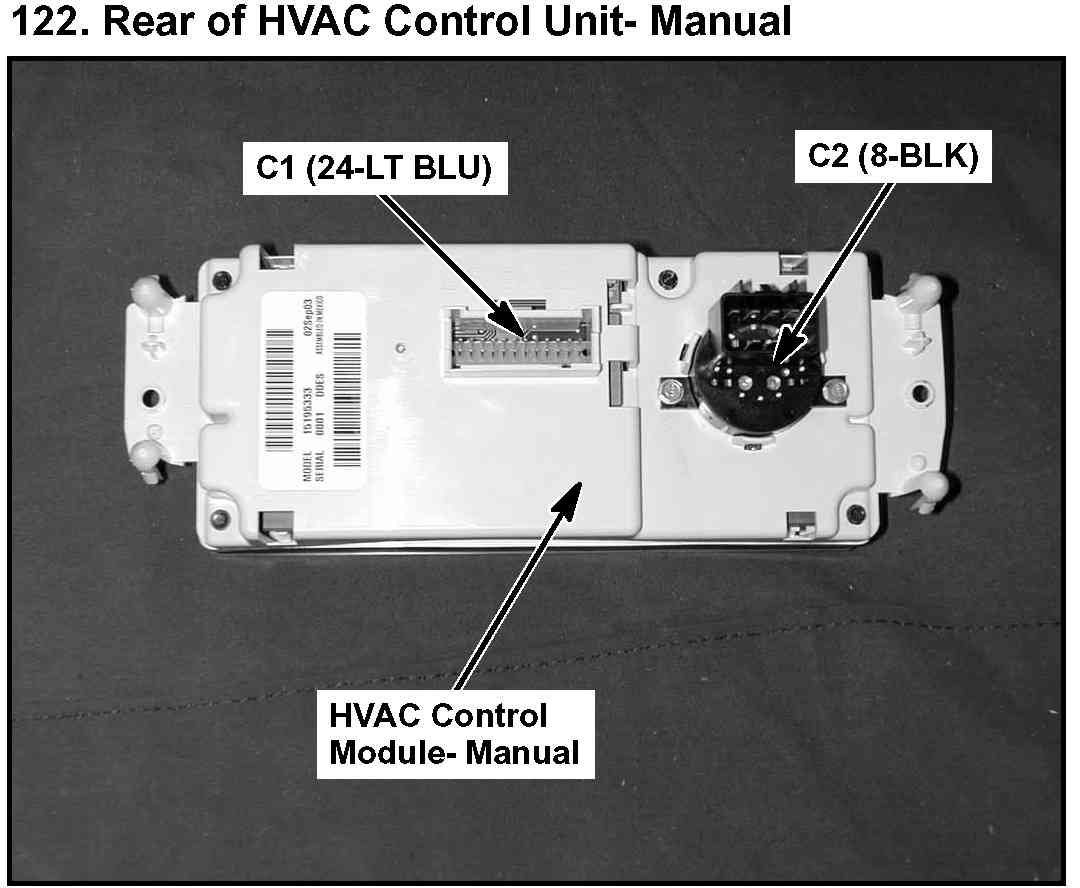

122. Rear Of HVAC Control Unit- Manual:

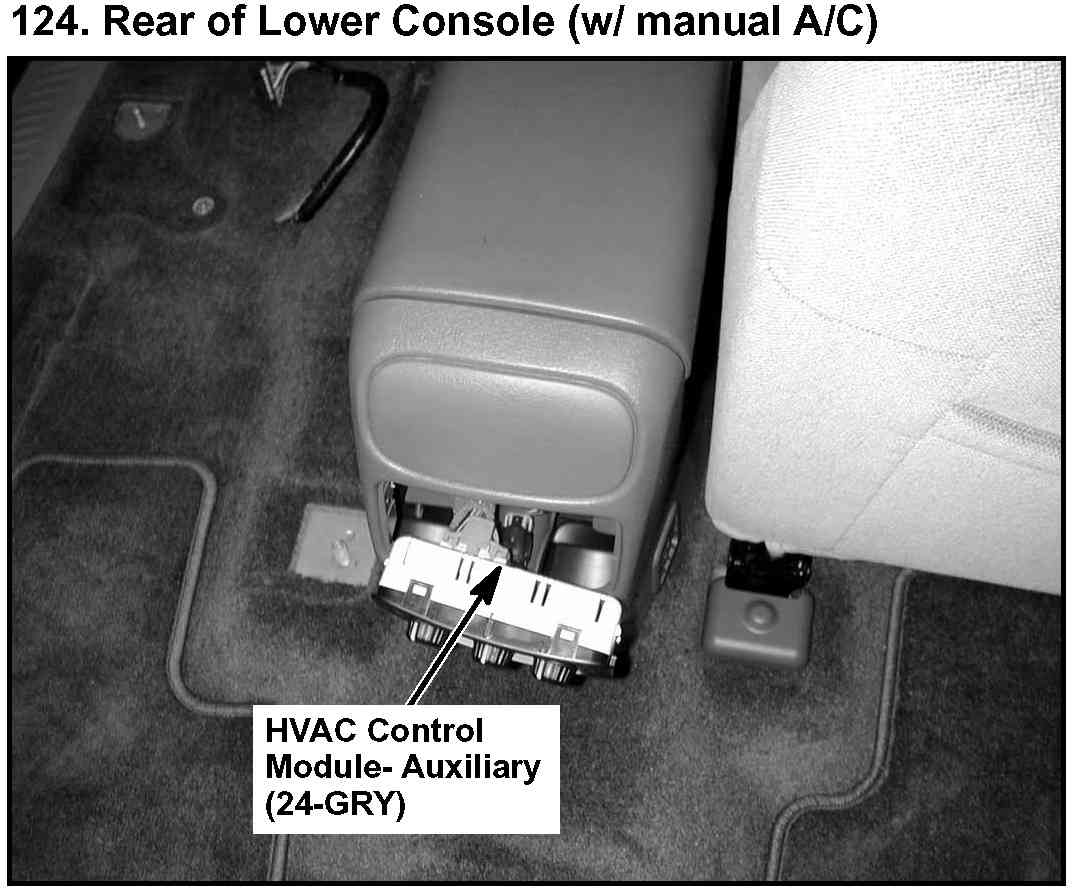

124. Rear Of Lower Console (w/ manual A/C):
