Locations
>>
Connector Locations
Connector Locations

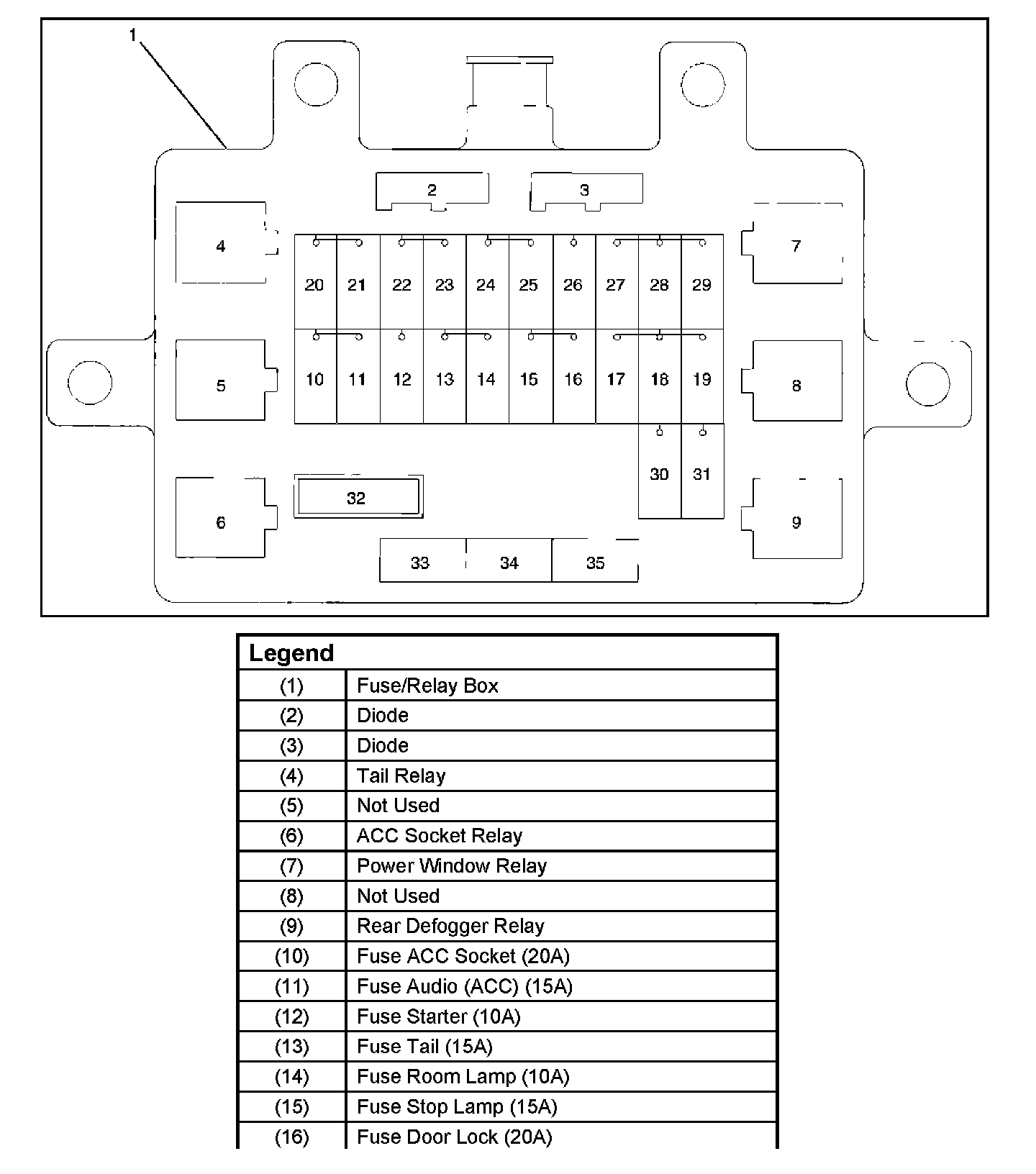

Relay / Fuse Box (Instrument Panel) Part 1:

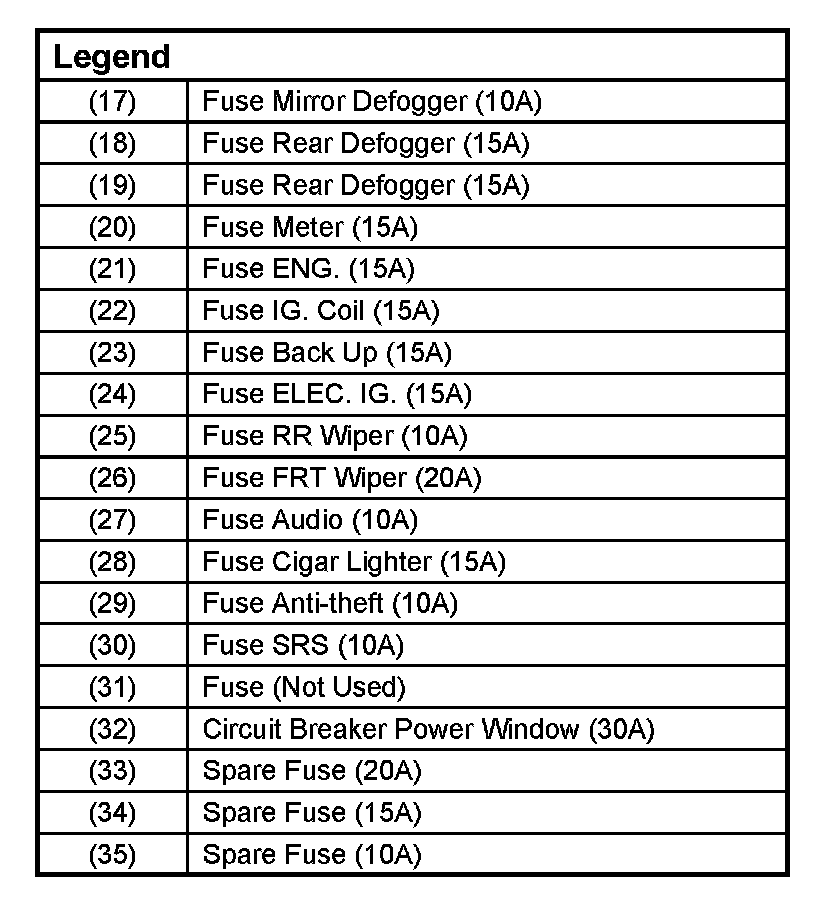

Relay / Fuse Box (Instrument Panel) Part 2:

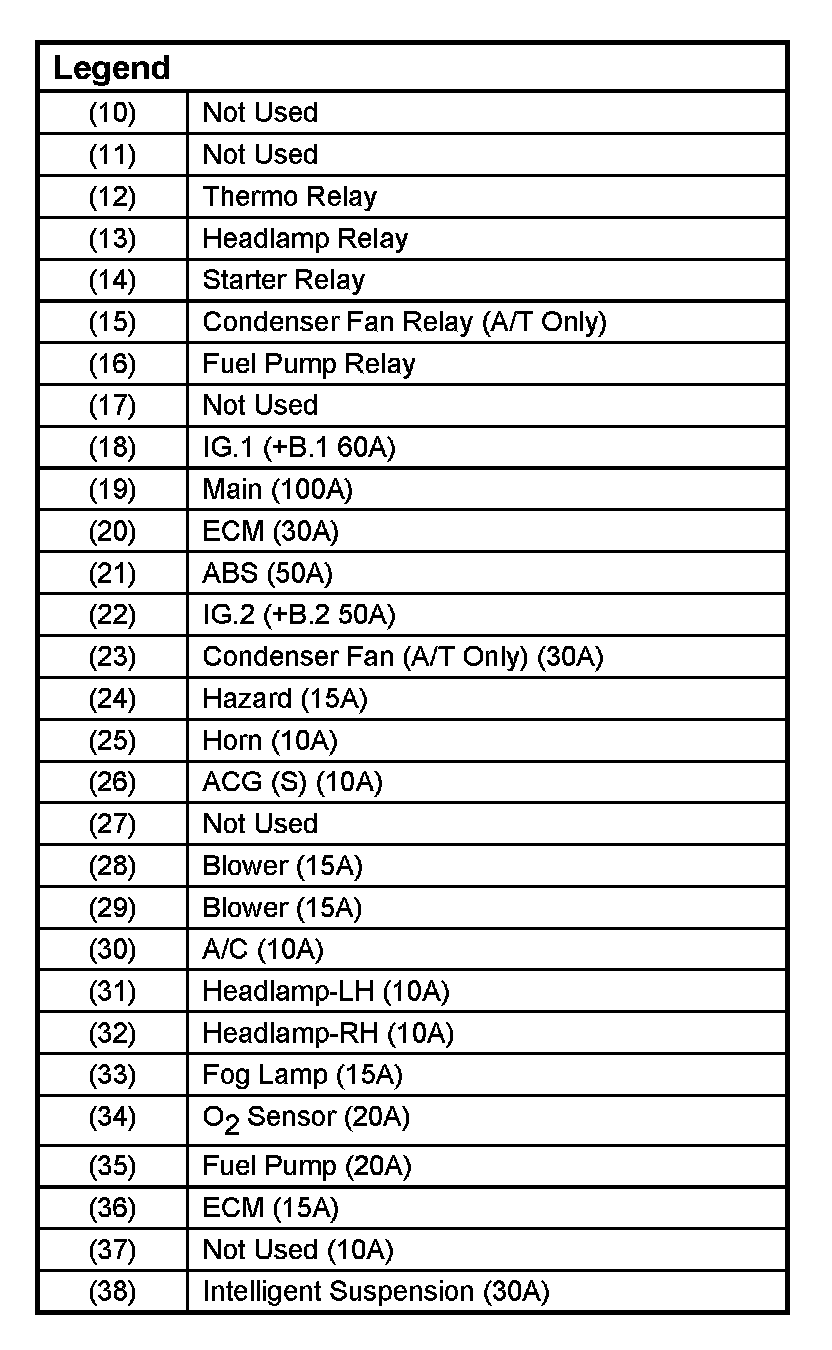

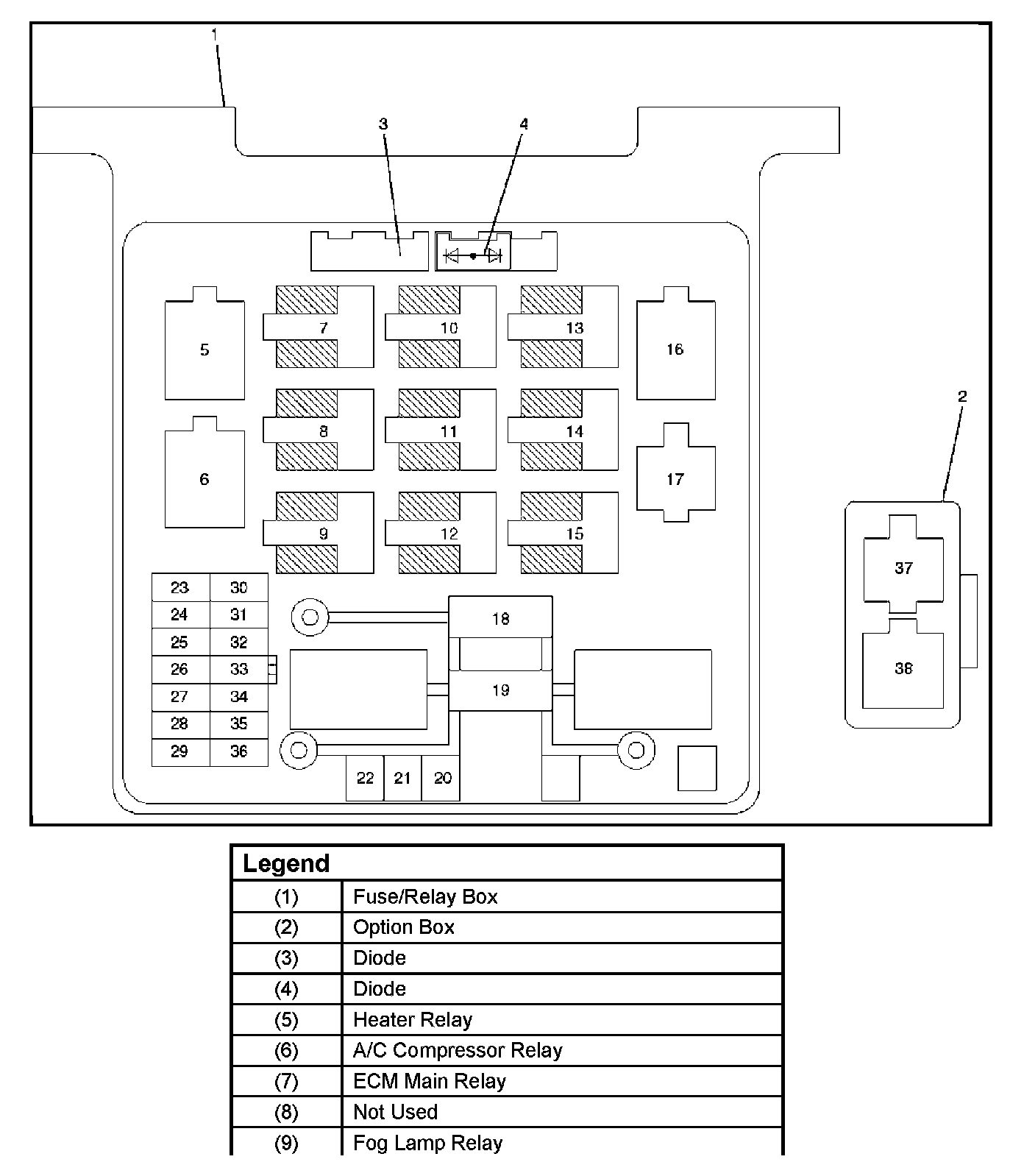

Relay / Fuse Box (L4 Engine Room):

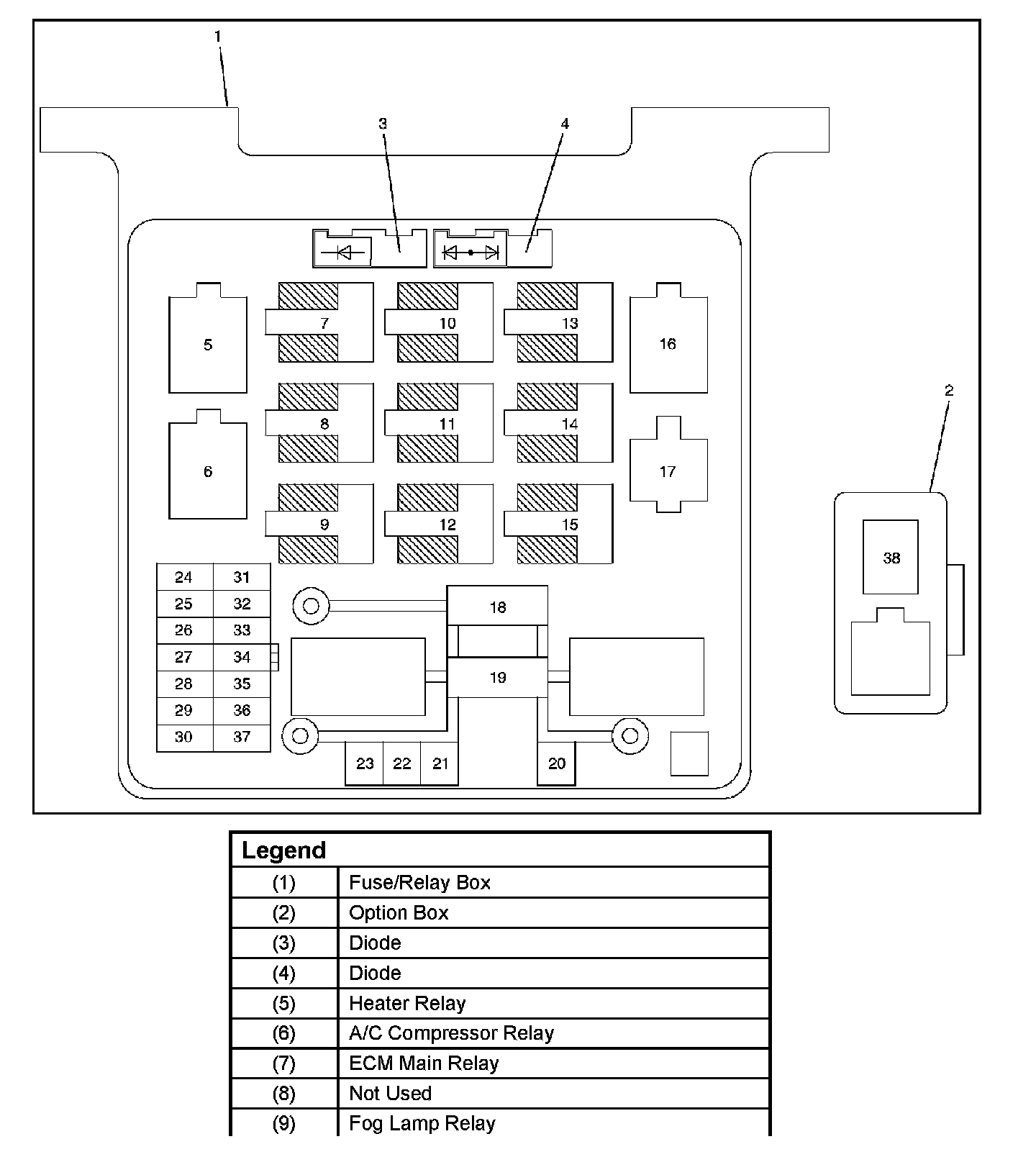

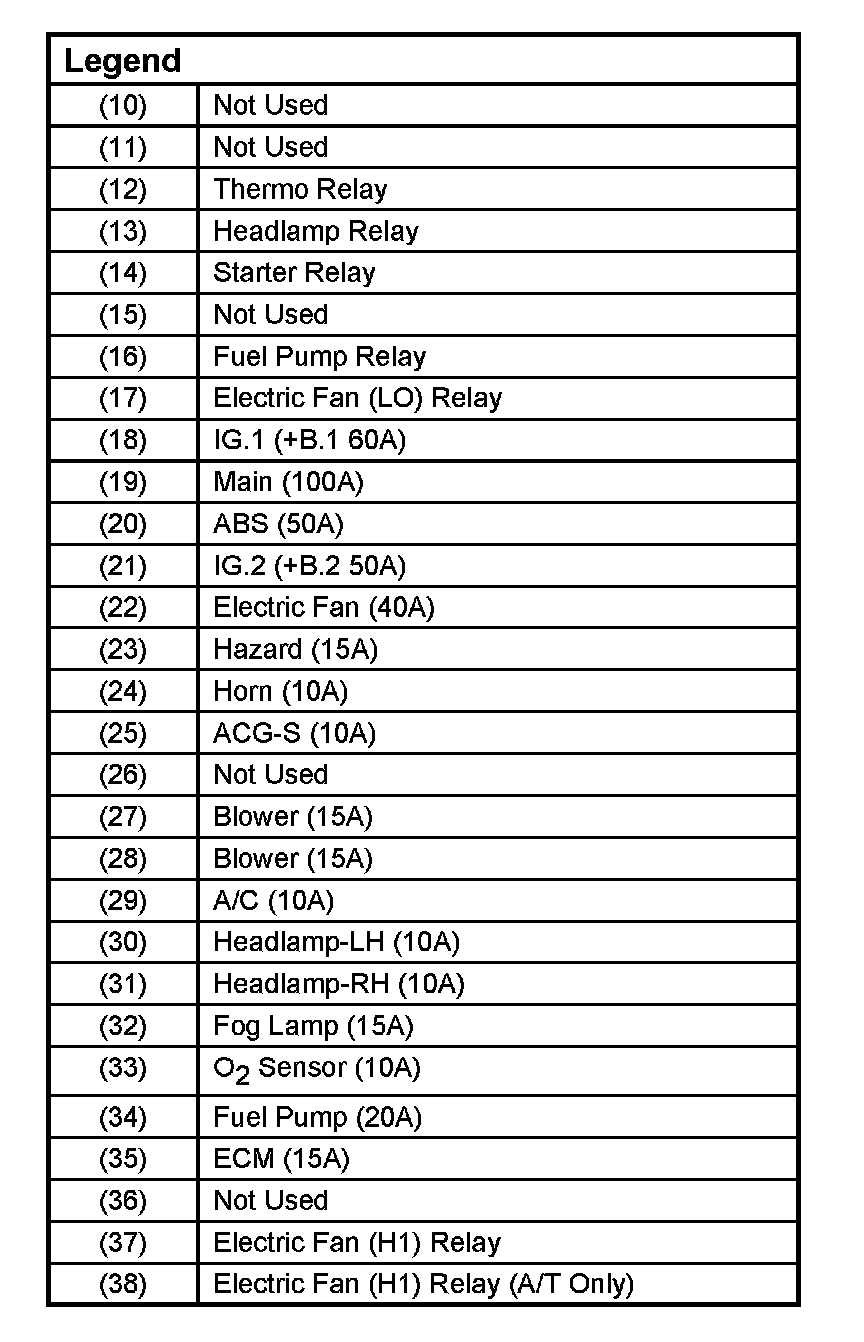

Relay / Fuse Box (V6 Engine Room):
