Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Body and Frame >> Frame >> Trailer Adapter Kit >> Diagrams

Trailer Adapter Kit: Diagrams

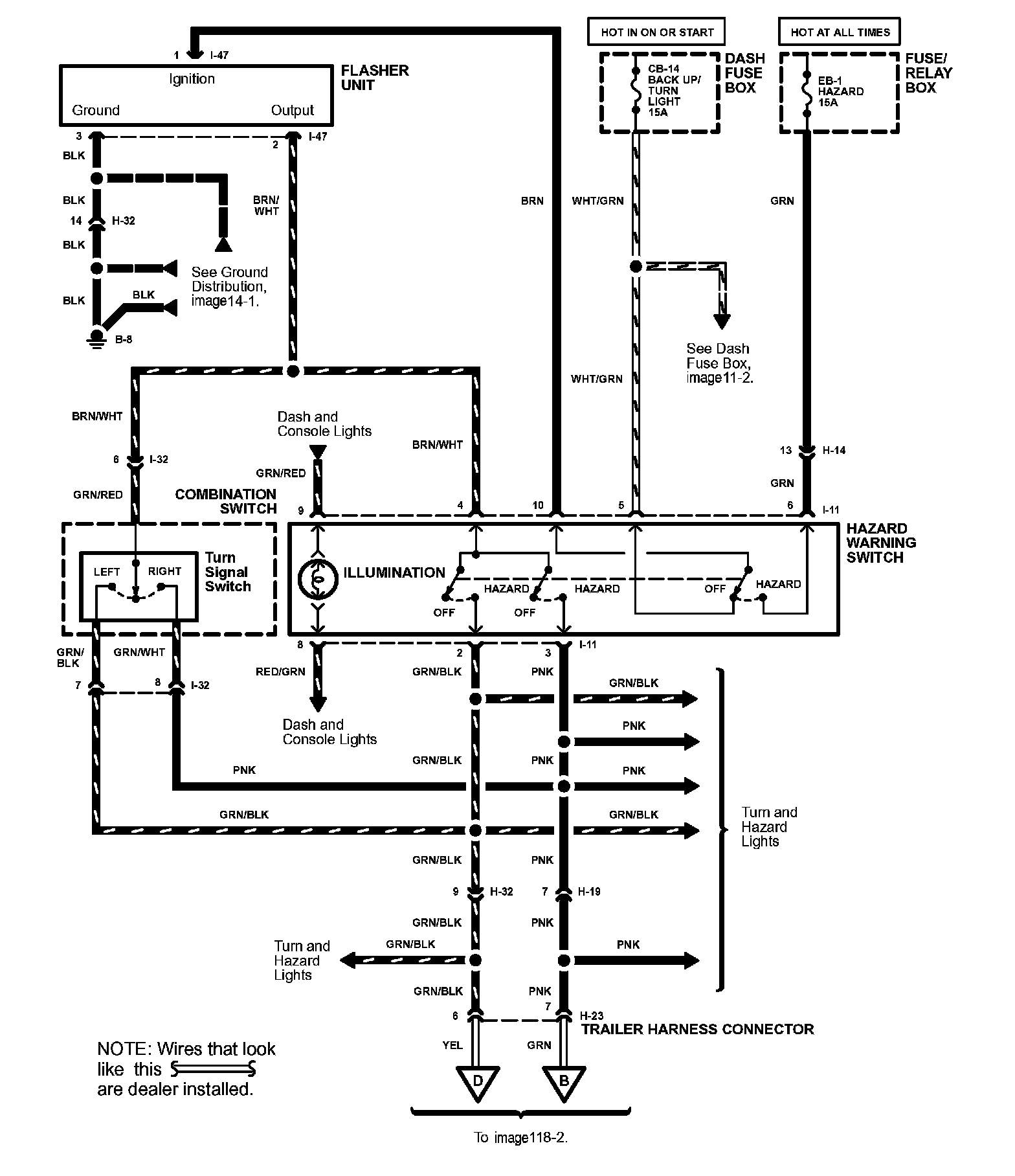

Trailer Adapter Image 118:

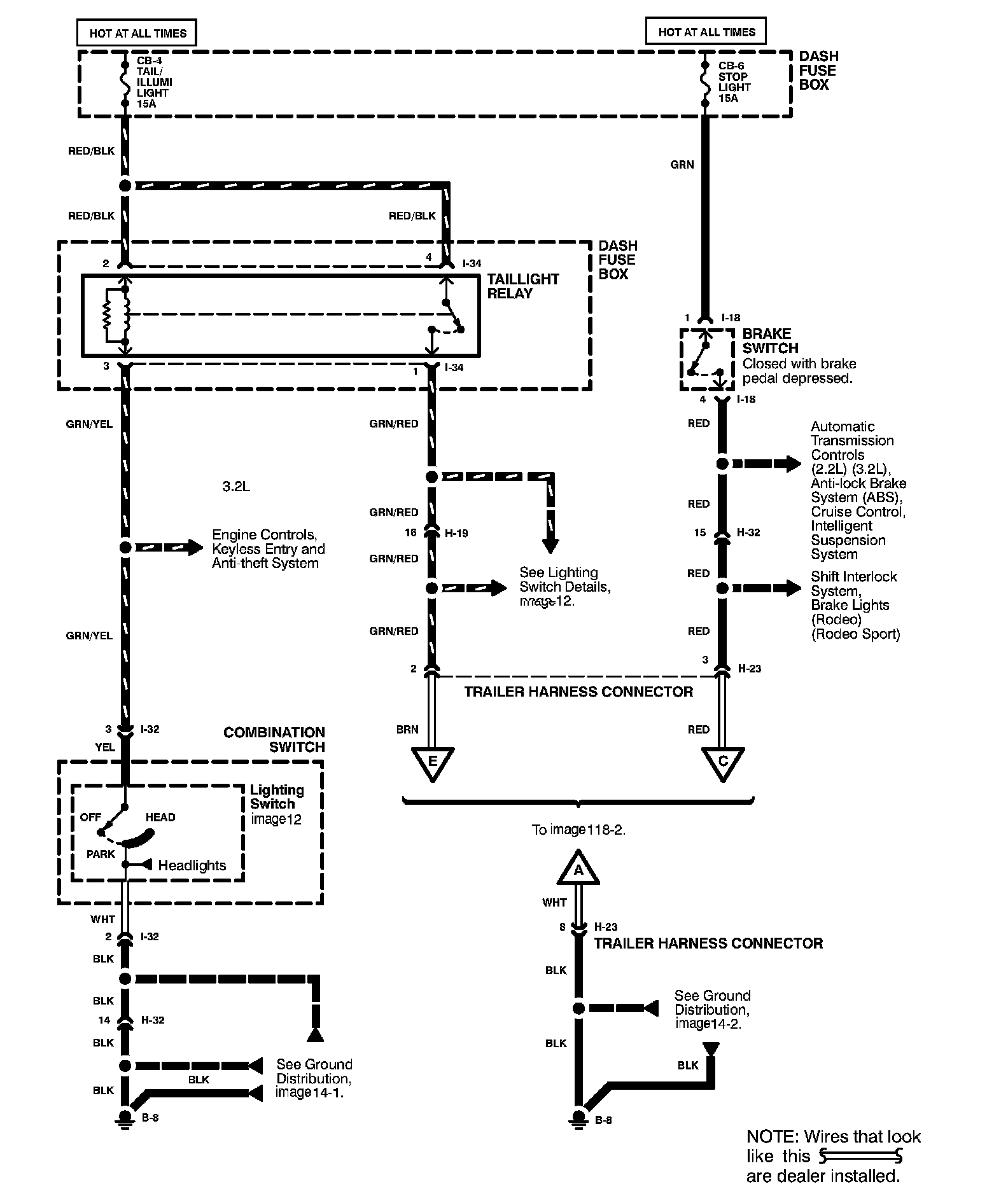

Trailer Adapter Image 118-1:

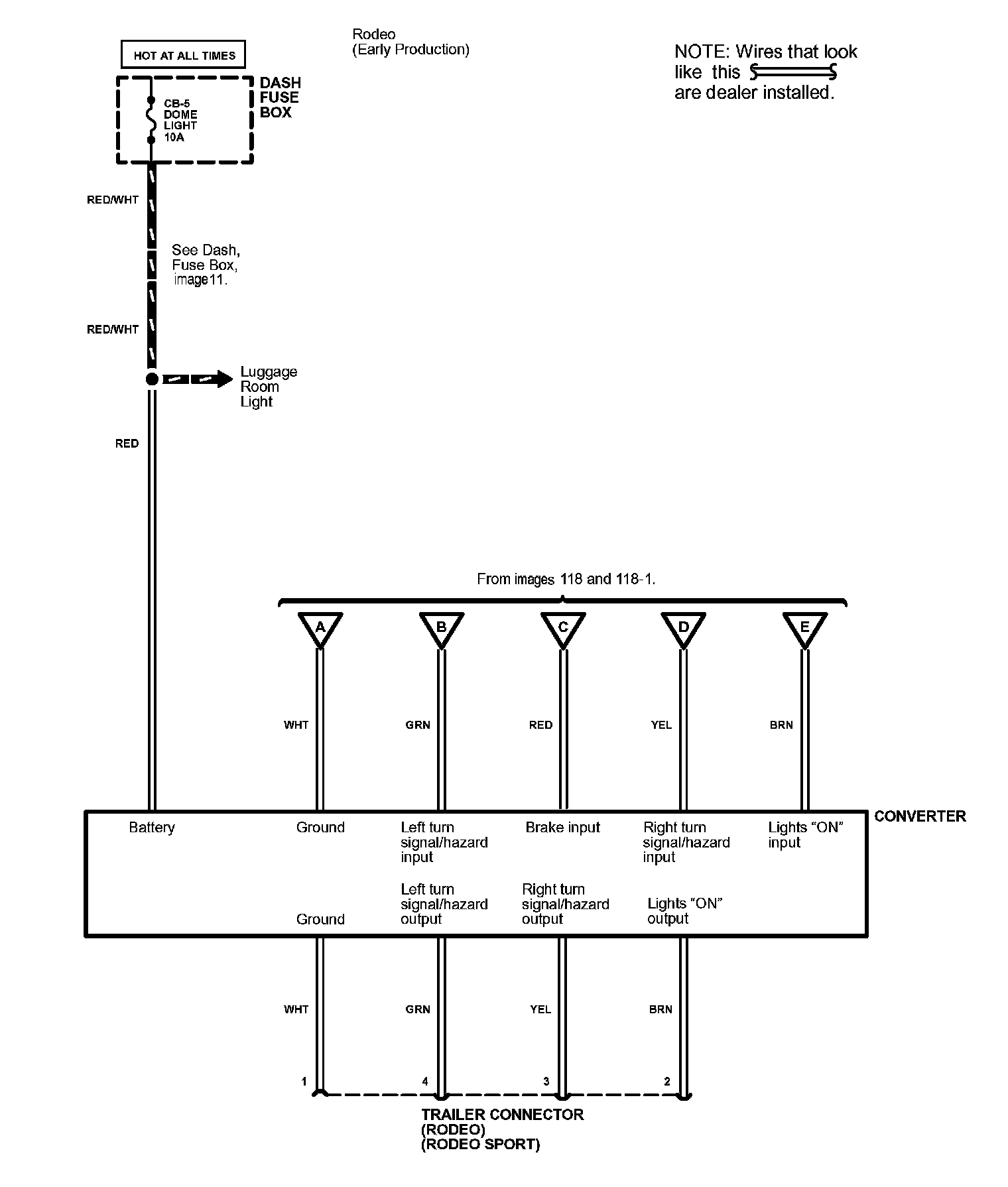

Trailer Adapter Image 118-2:
