General Module: Service and Repair

Removal

1. Disconnect the battery ground cable.

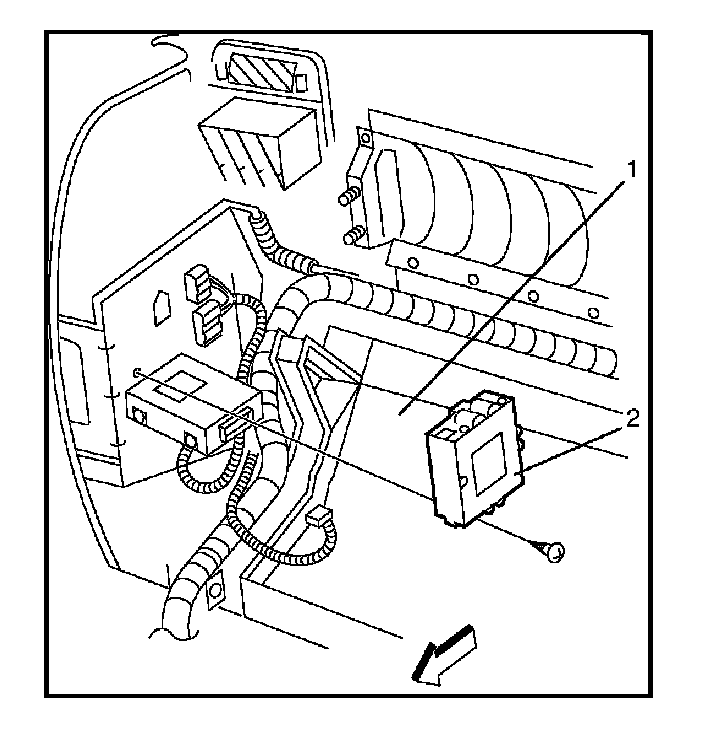

2. Remove the grove box (1)
3. Remove the alarm and relay control unit (2).
Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.
