Oxygen Sensor: Locations

Engine, Top Rear:

Oxygen Sensors:

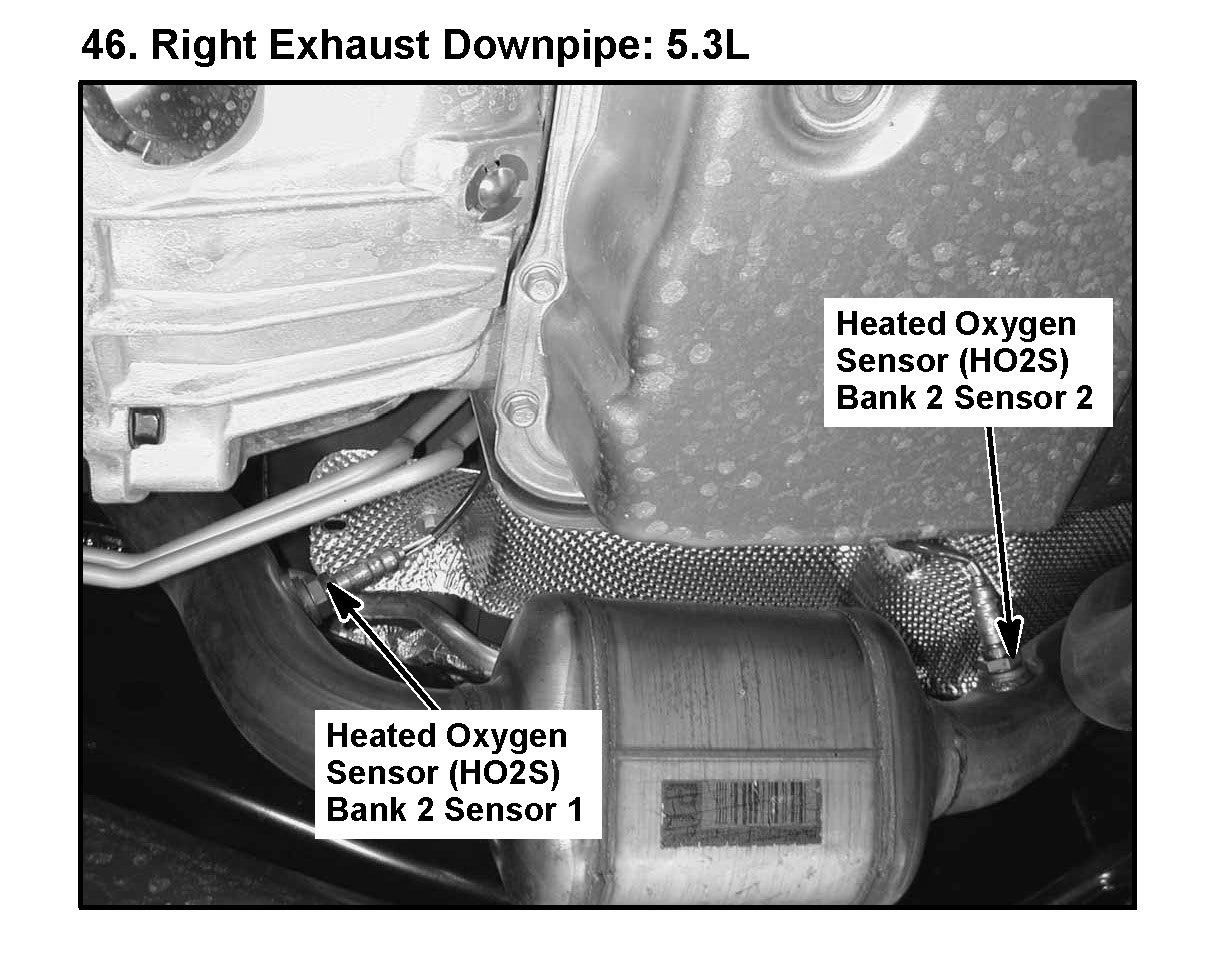

46. Right Exhaust Downpipe:

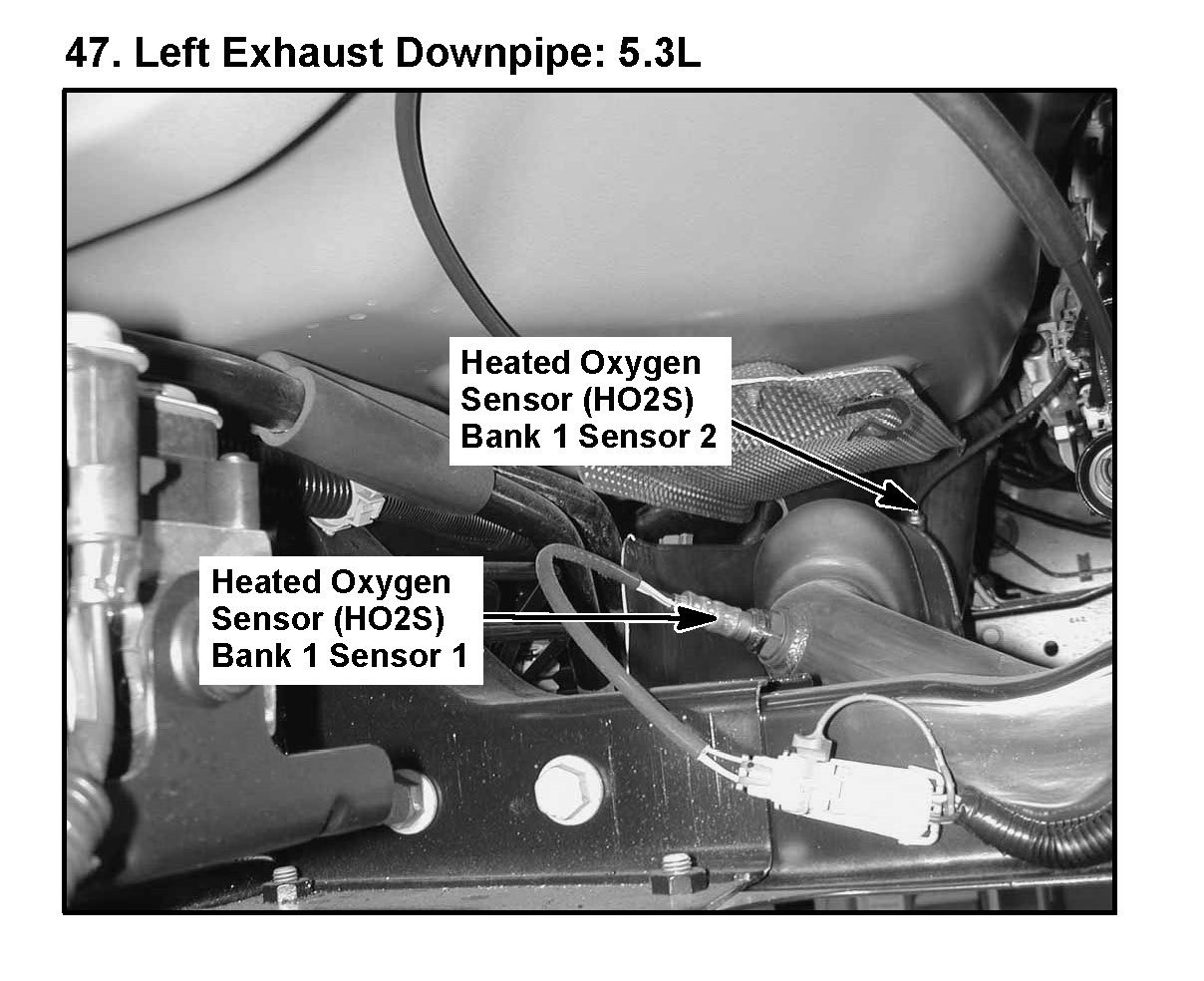

47. Left Exhaust Downpipe:
