Home >> Isuzu >> 2003 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> PCM - Connector C2

PCM - Connector C2

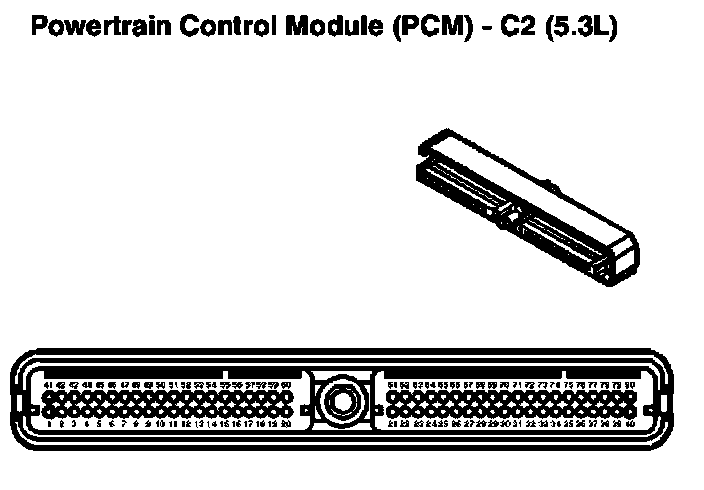

Powertrain Control Module (PCM) - C2:

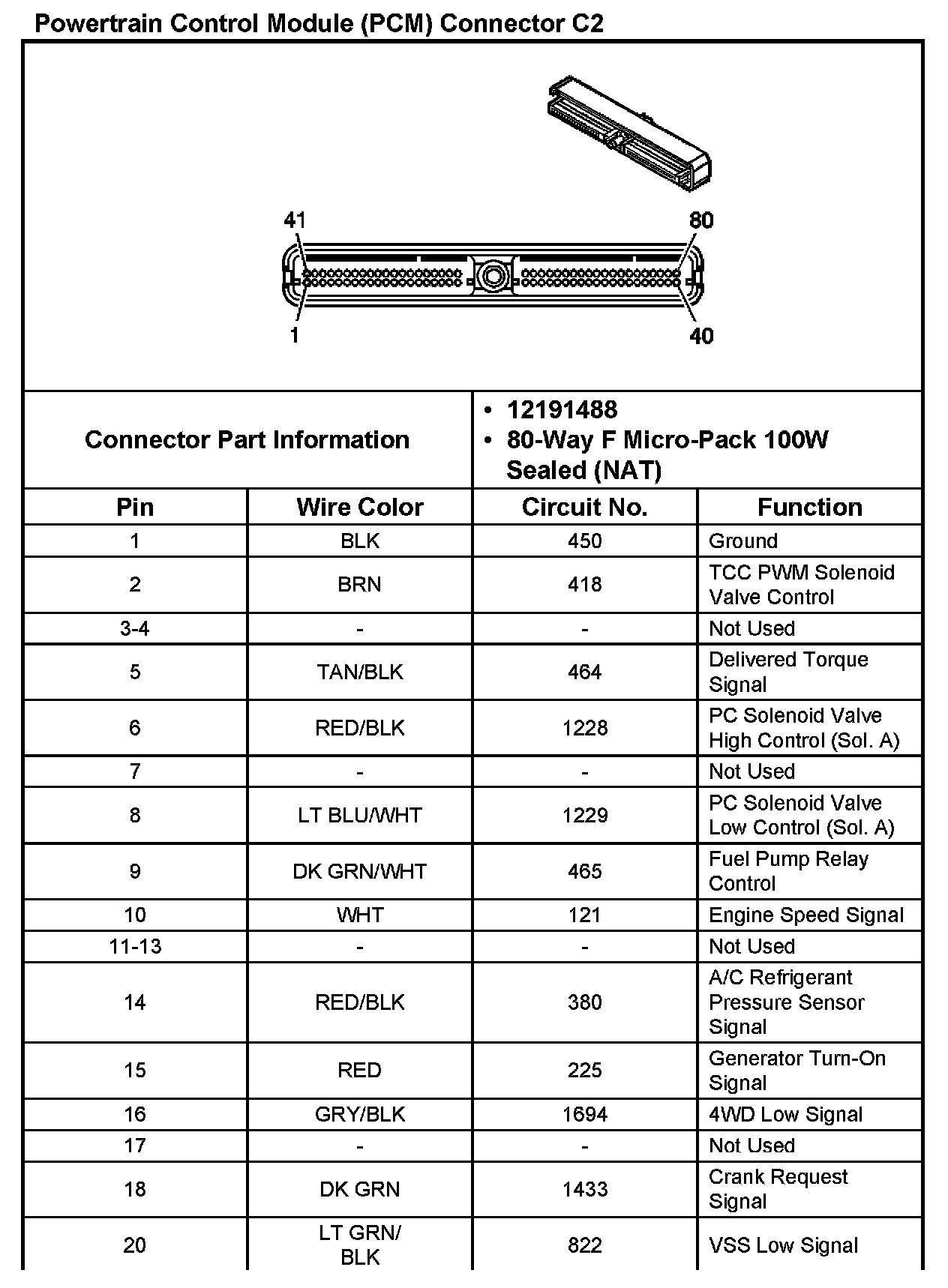

Powertrain Control Module (PCM) Connector C2 Part 1:

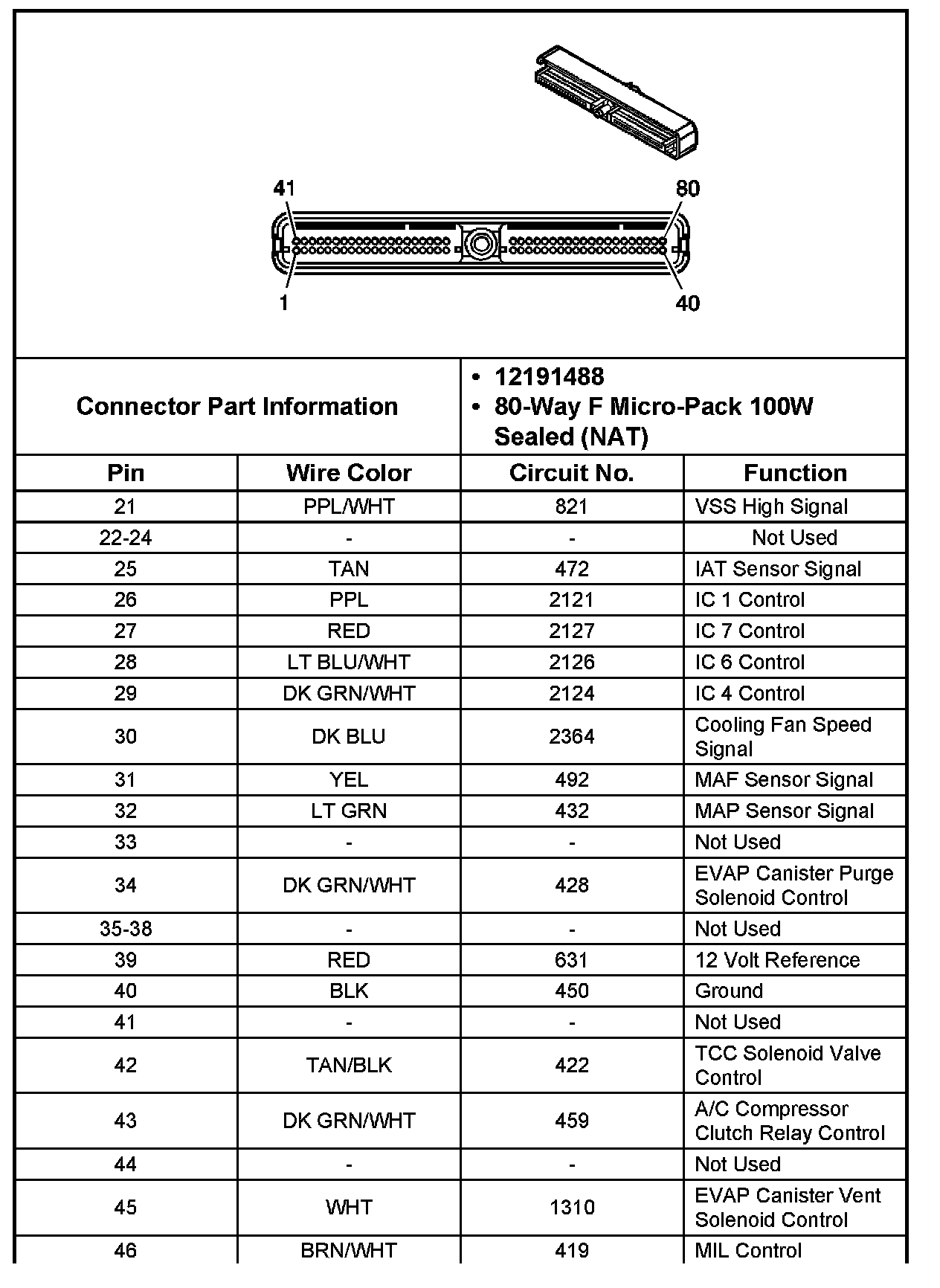

Powertrain Control Module (PCM) Connector C2 Part 2:

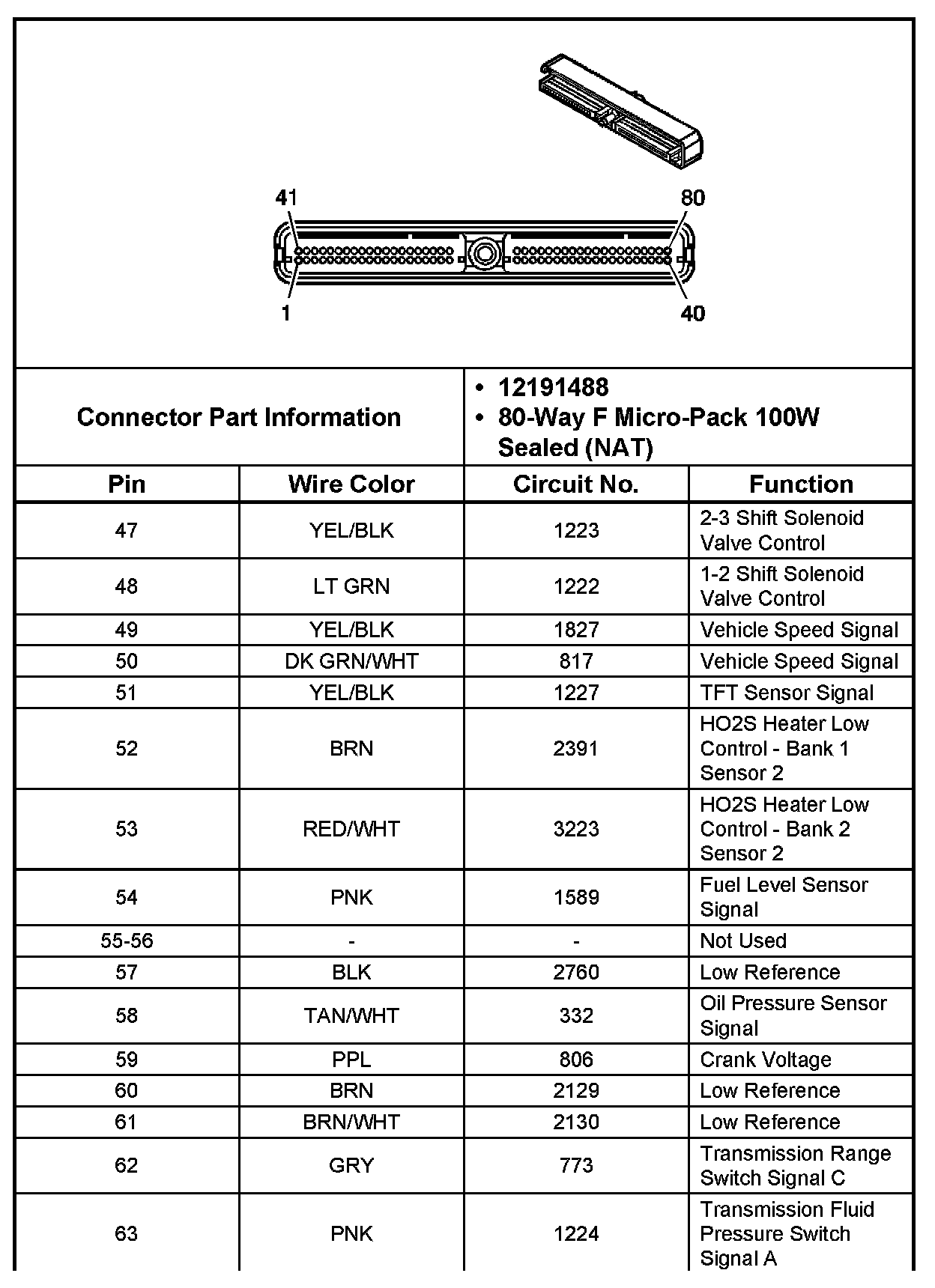

Powertrain Control Module (PCM) Connector C2 Part 3:

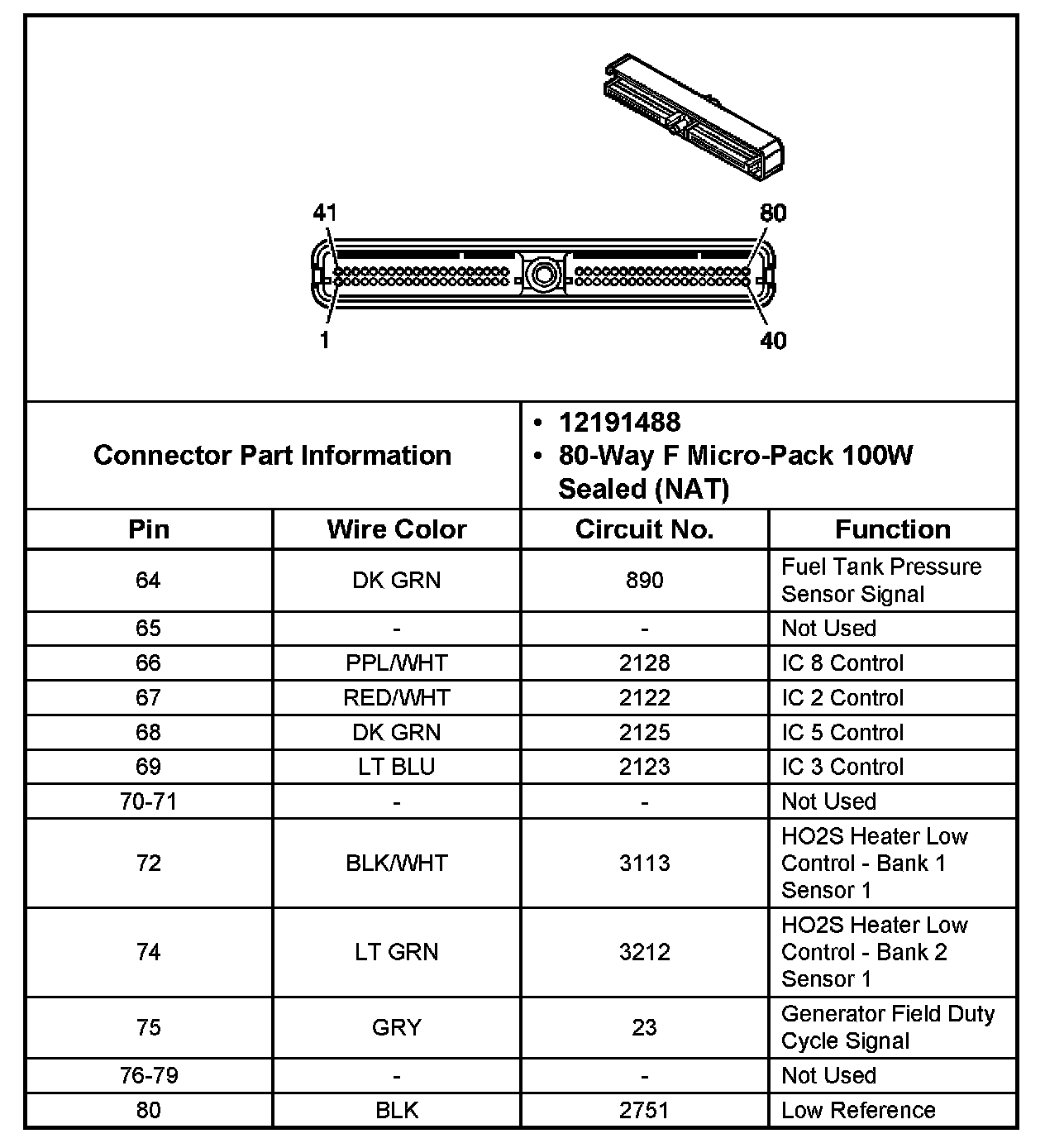

Powertrain Control Module (PCM) Connector C2 Part 4:
