Air Flow Meter/Sensor: Diagrams

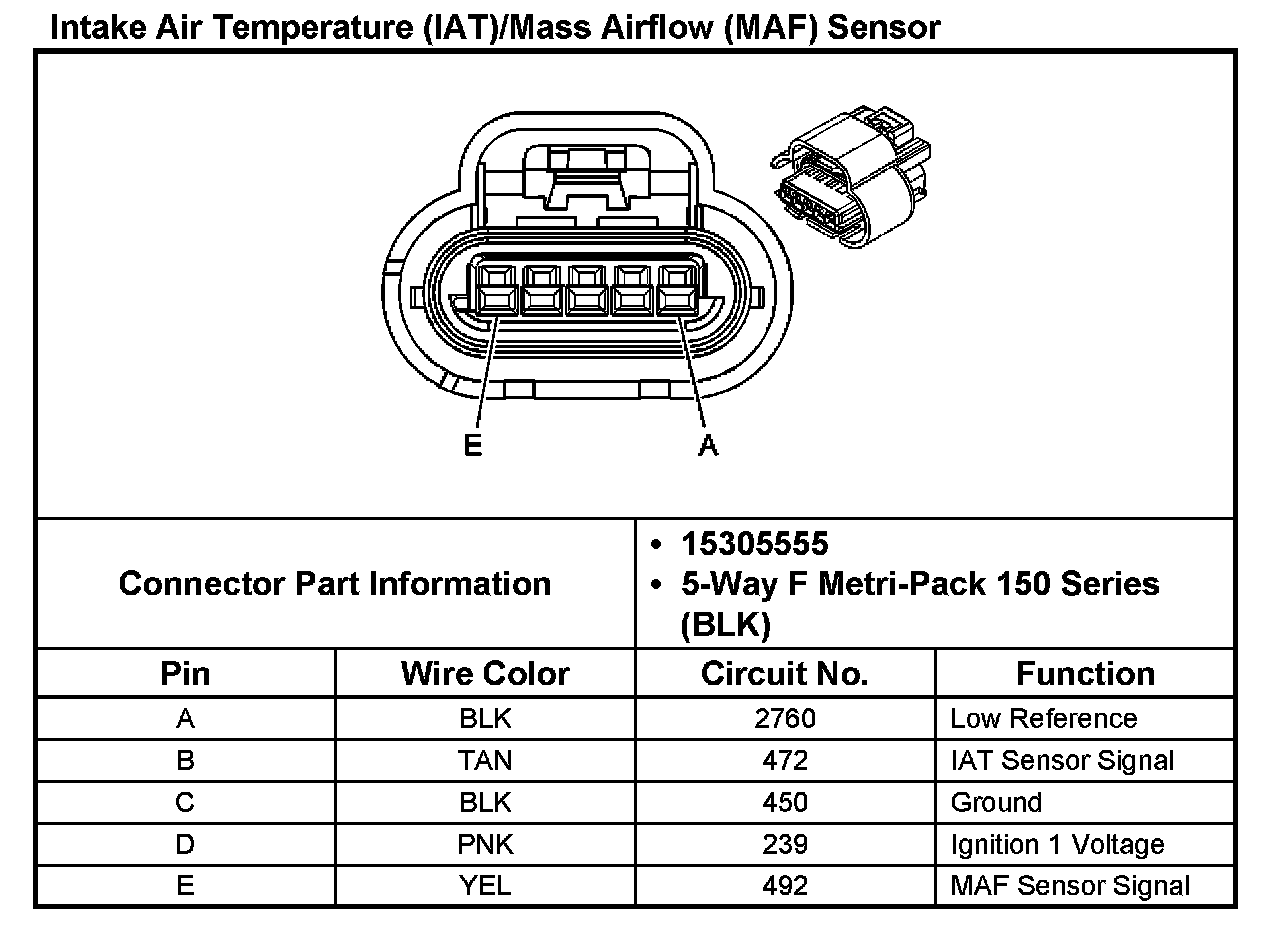

Intake Air Temperature (IAT)/Mass Airflow (MAF) Sensor:

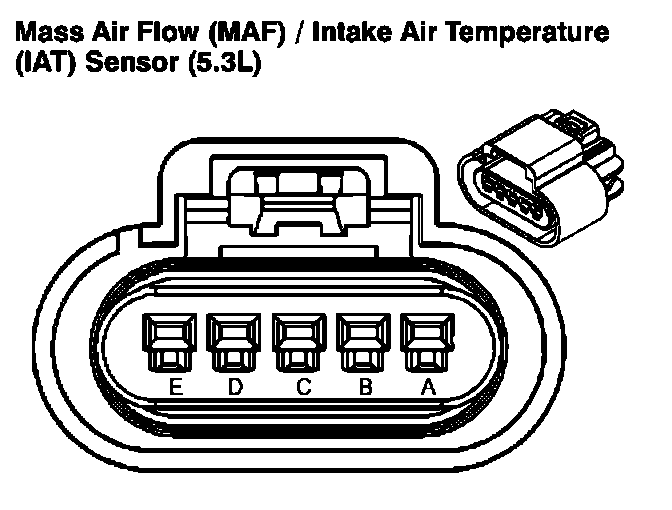

Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor:
