Home >> Isuzu >> 2003 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump Assembly

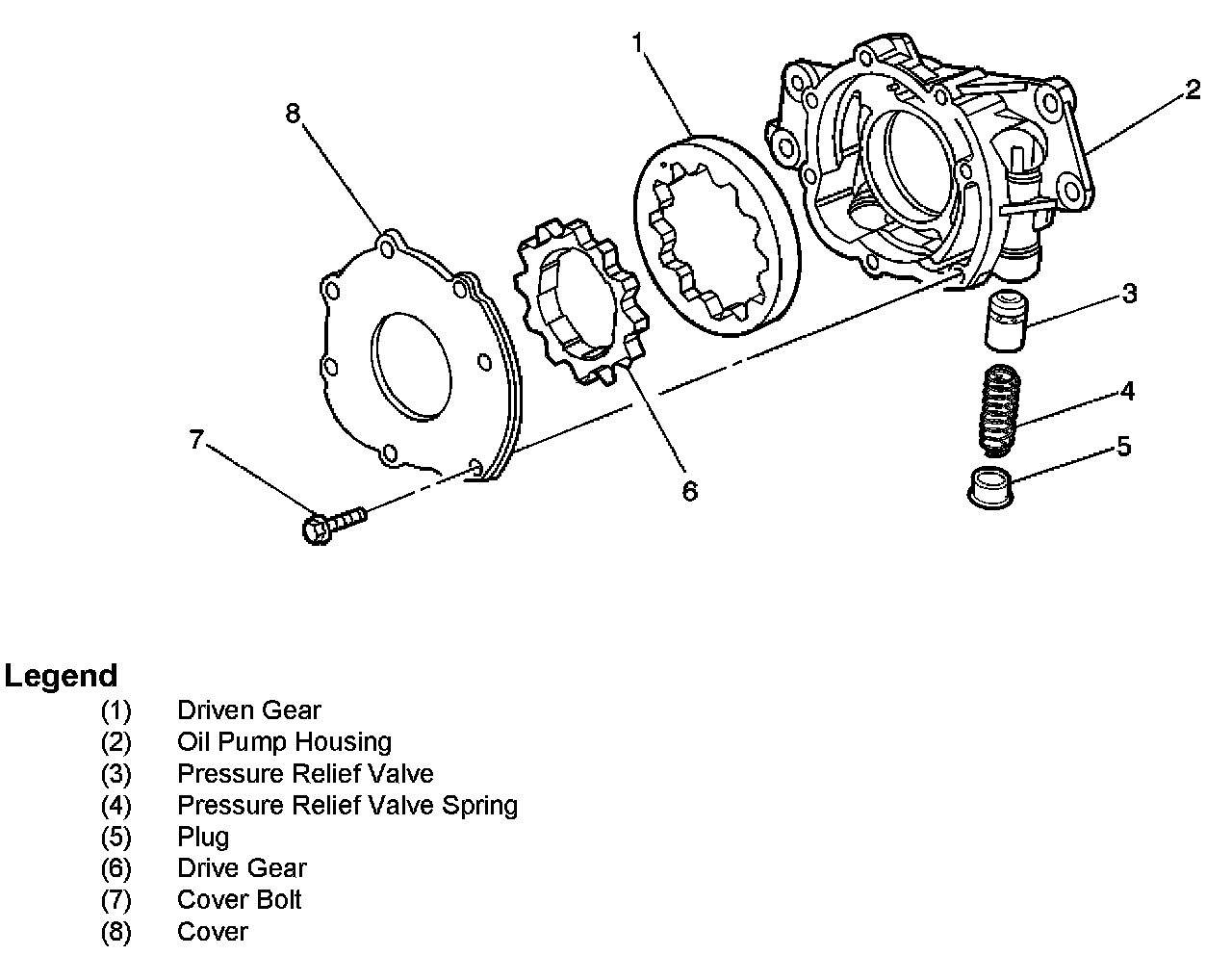

Oil Pump Assembly

Oil Pump Assembly:
