Home >> Isuzu >> 2003 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Front of Engine

Lower Front of Engine

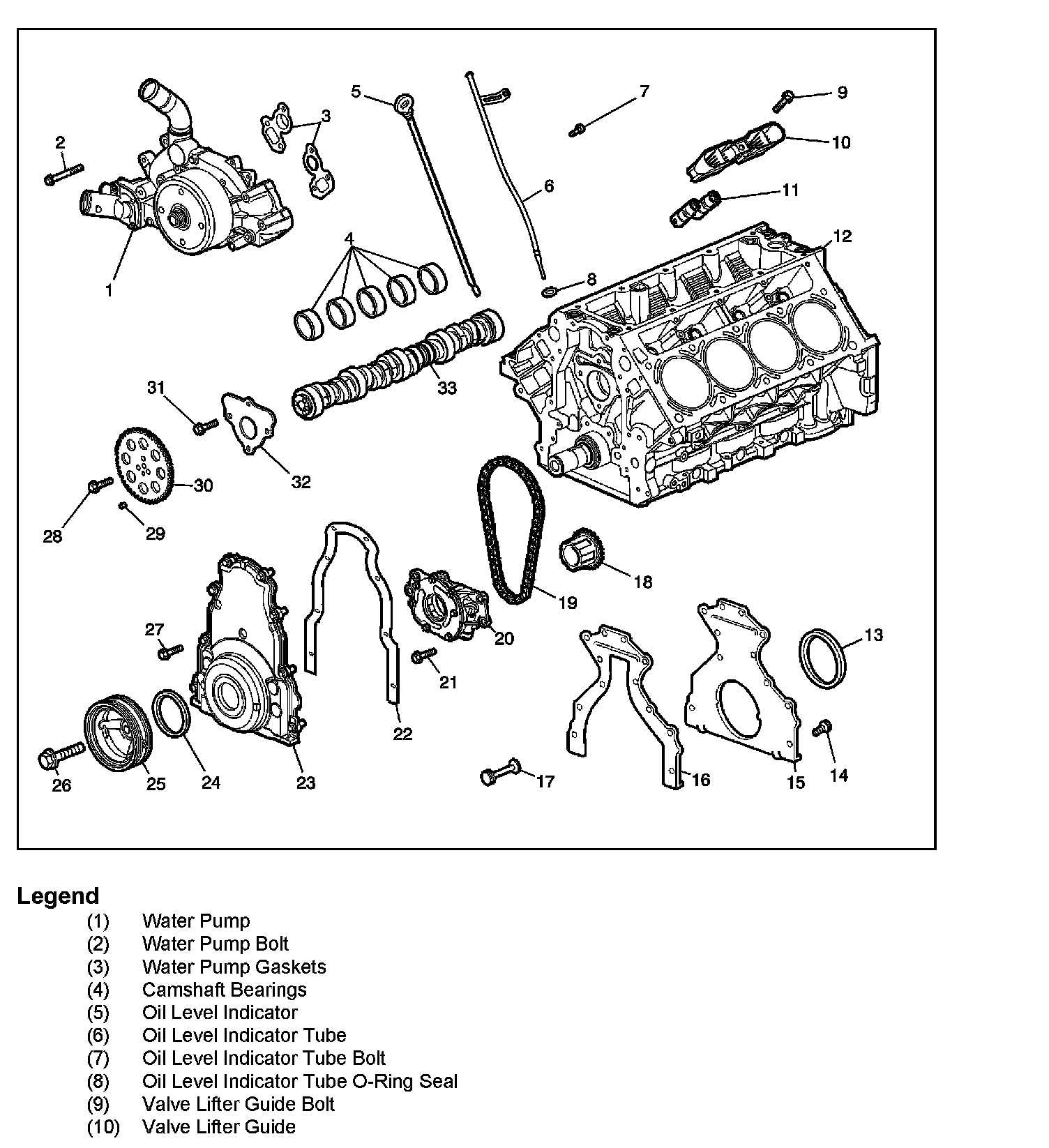

Lower Front of Engine (1 Of 2):

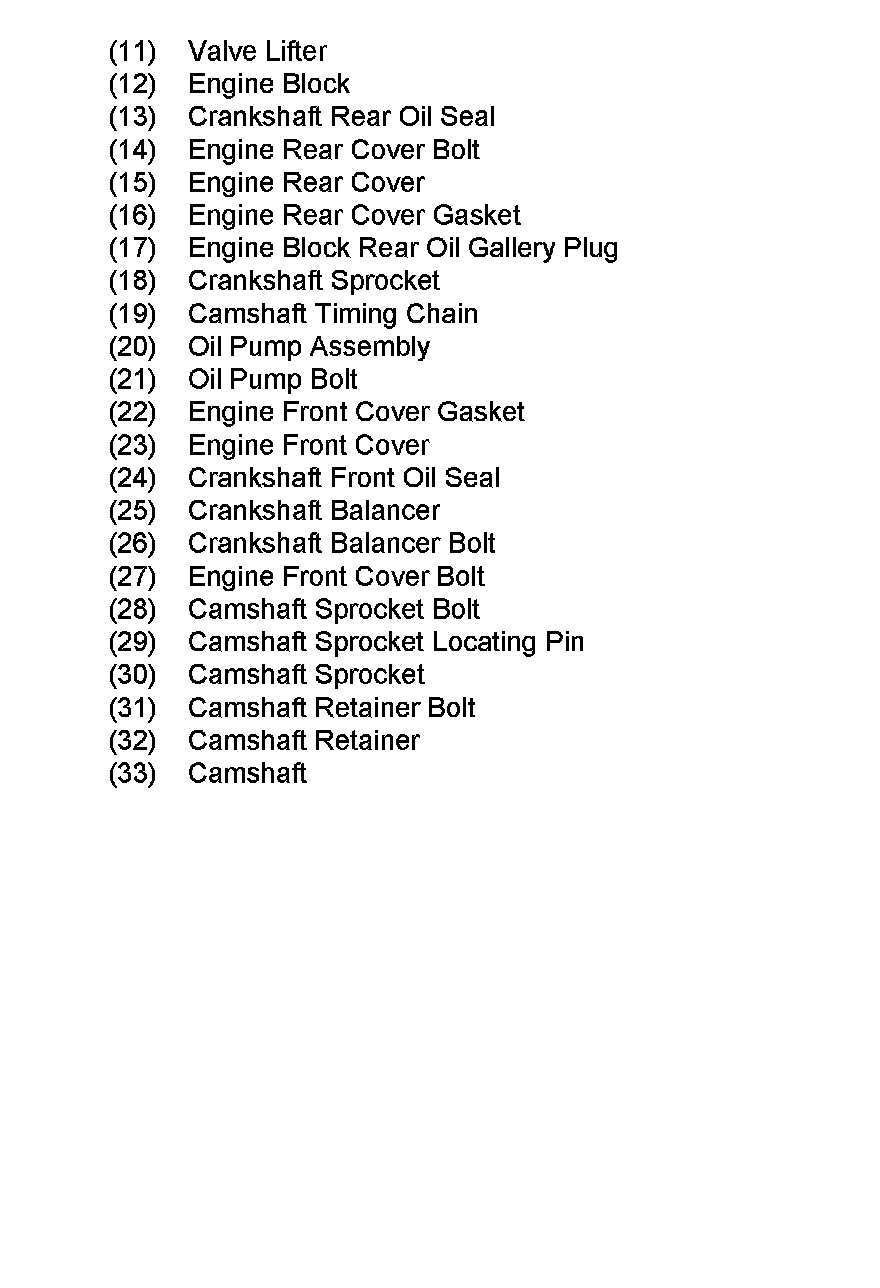

Lower Front of Engine (2 Of 2):
