Home >> Isuzu >> 2003 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Engine Assembly

Lower Engine Assembly

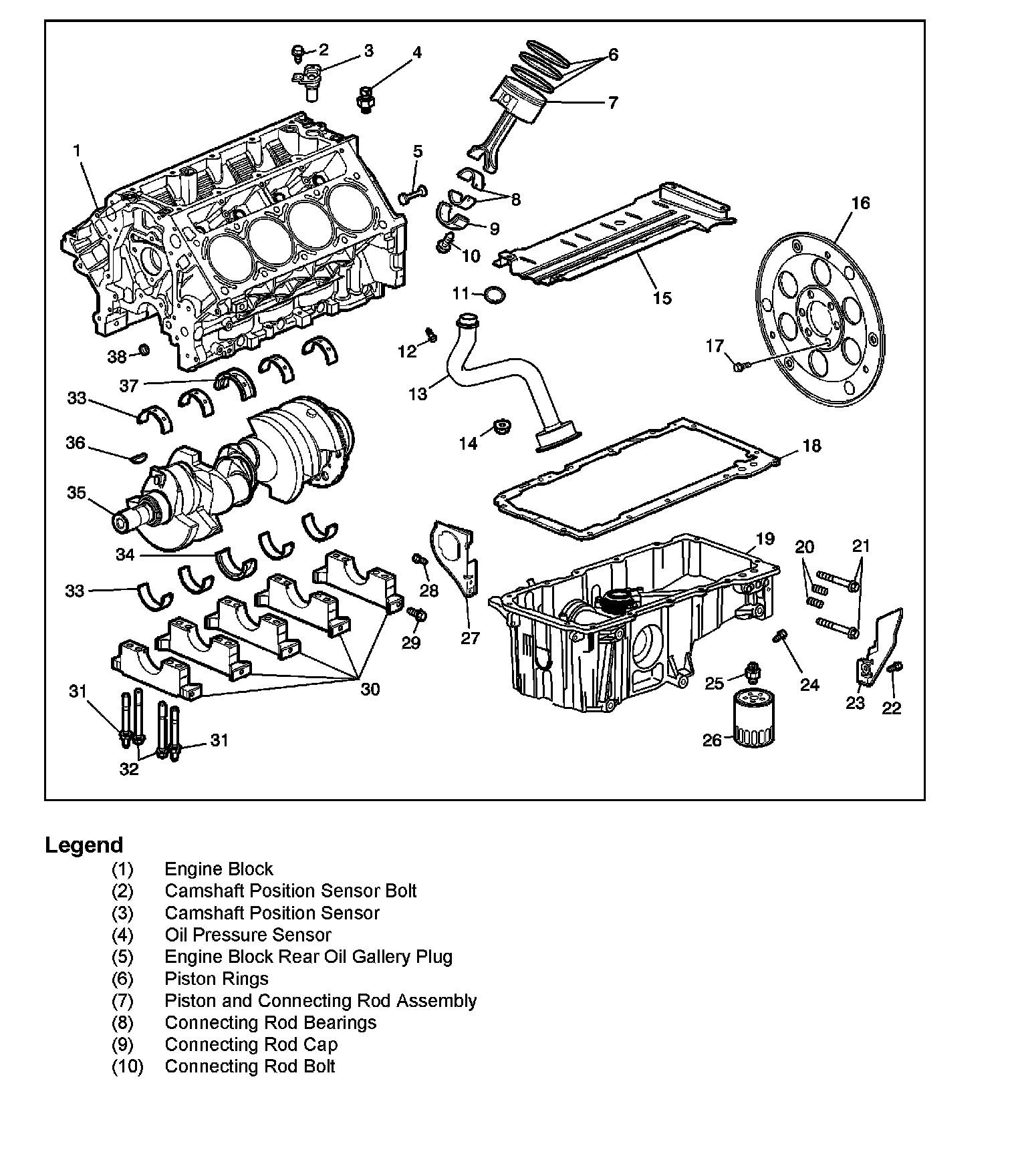

Lower Engine Assembly (1 Of 2):

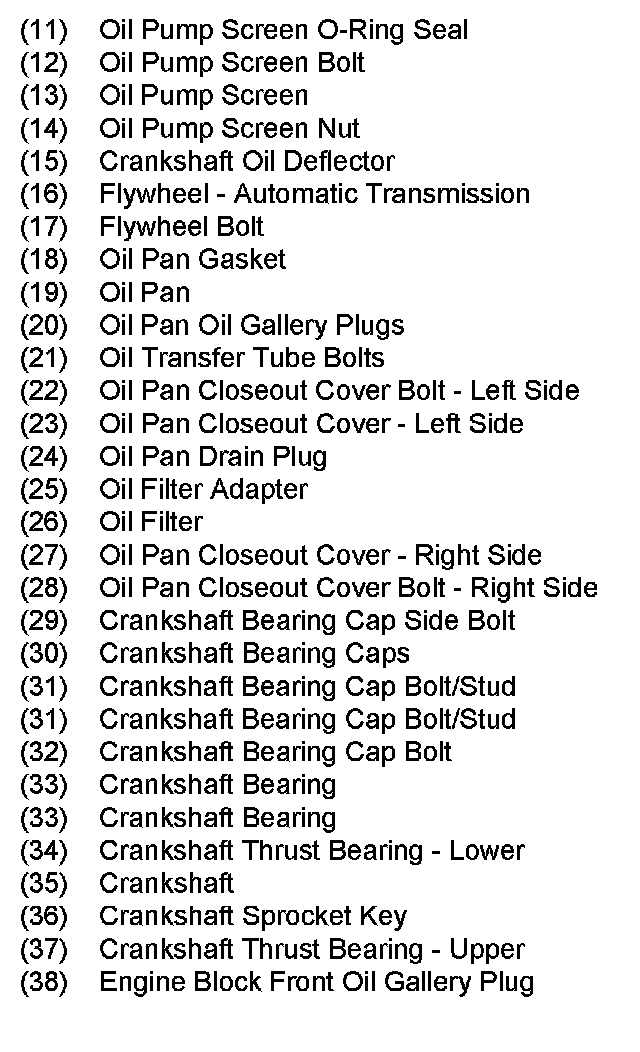

Lower Engine Assembly (2 Of 2):
