Home >> Isuzu >> 2003 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head/Upper Engine

Cylinder Head/Upper Engine

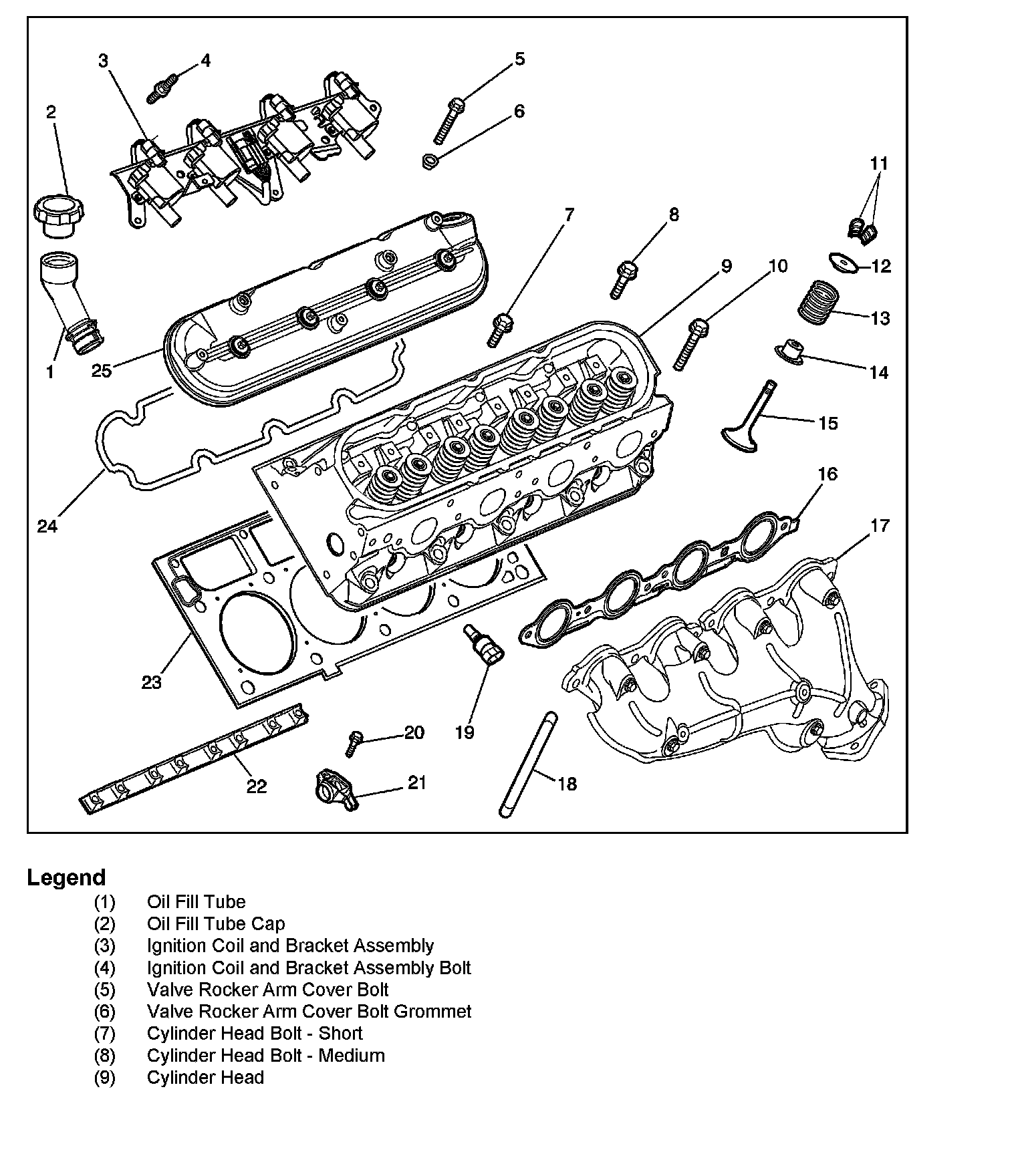

Cylinder Head/Upper Engine (1 Of 2):

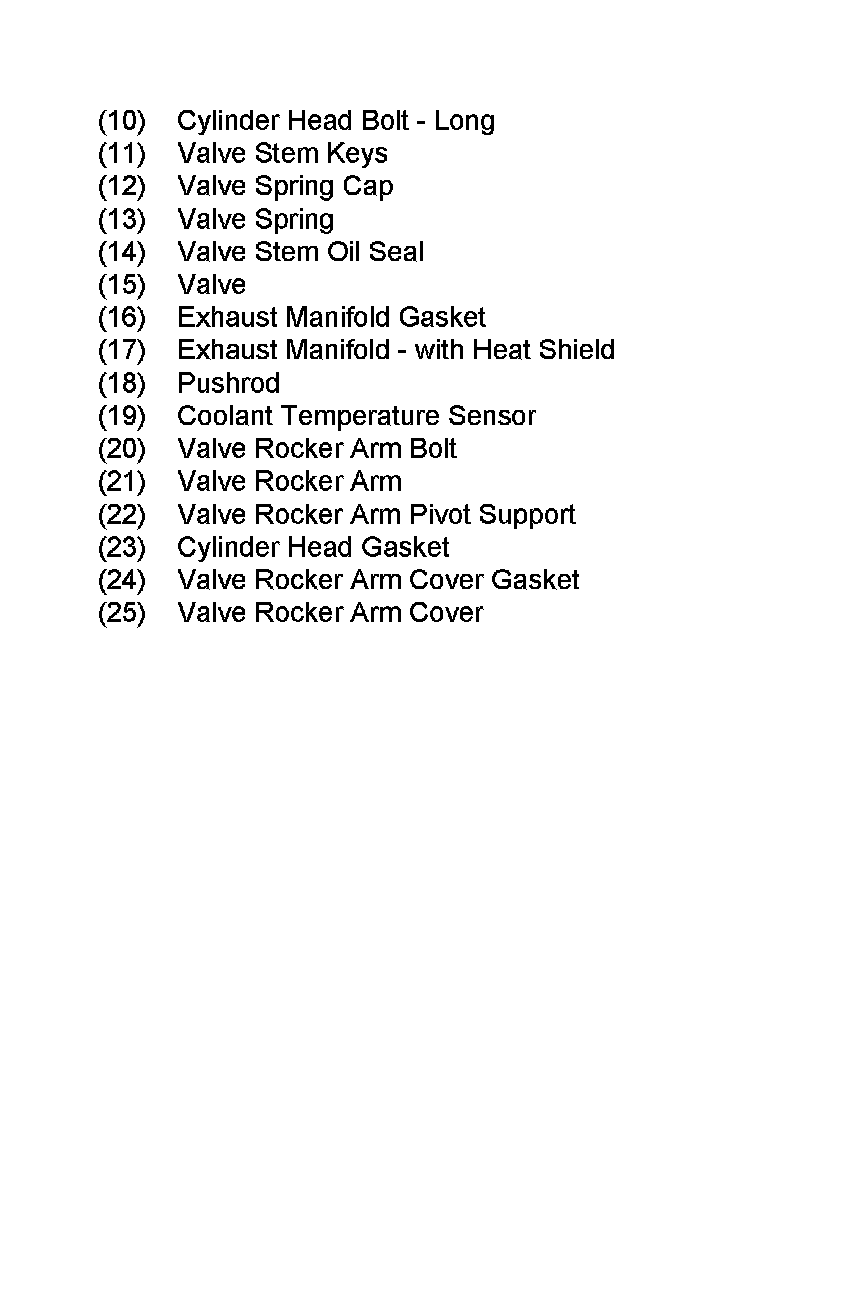

Cylinder Head/Upper Engine (2 Of 2):
