Vehicle Speed Sensor: Locations

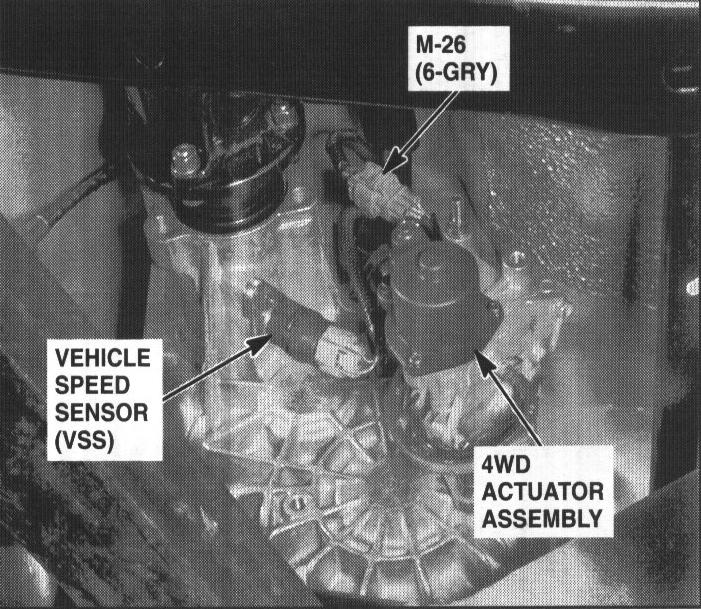

Vehicle Speed Sensor (VSS) Image 33-1:

119 - Rear Of Manual Transmission:

129 - Rear Of Transfer Case (A/T):

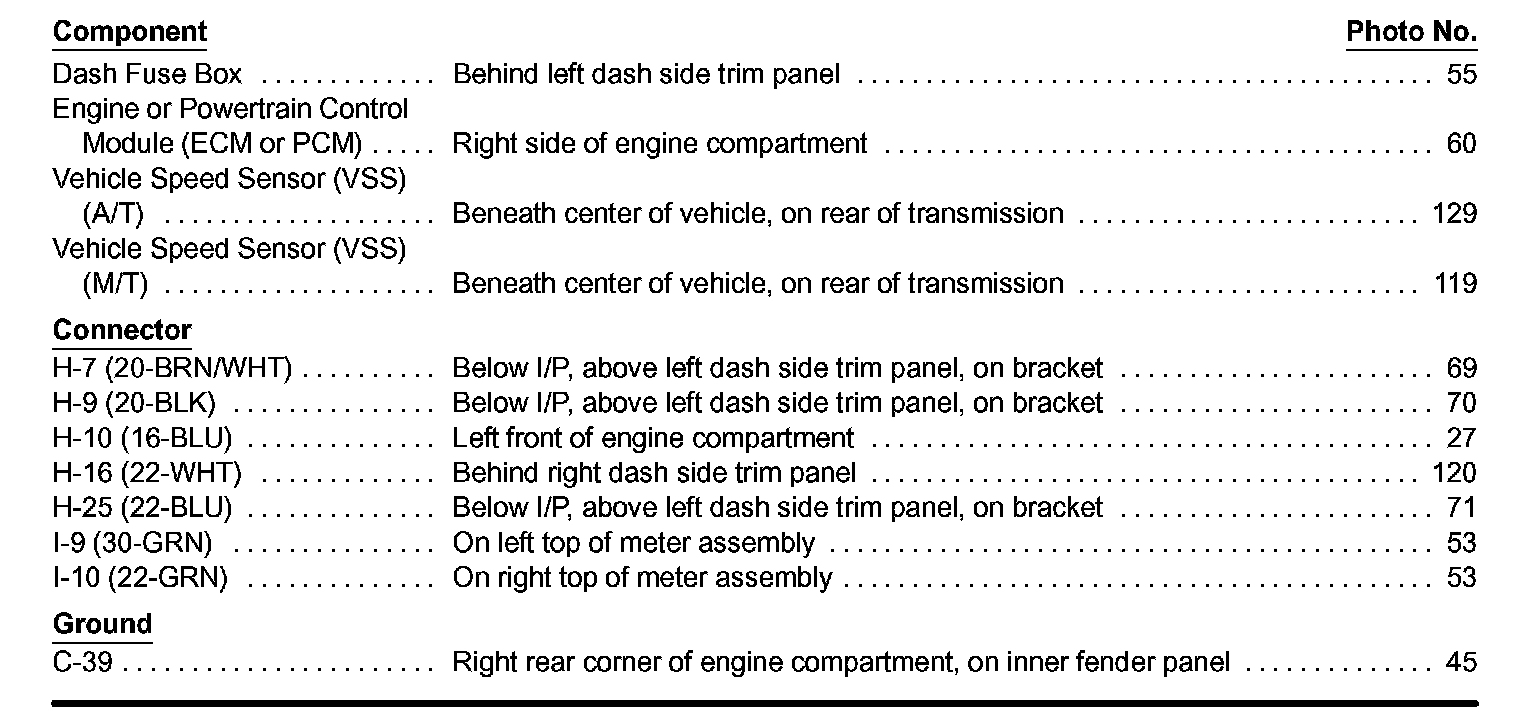

Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
Component Locations
