Home >> Isuzu >> 2002 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams

Vehicle Speed Sensor: Diagrams

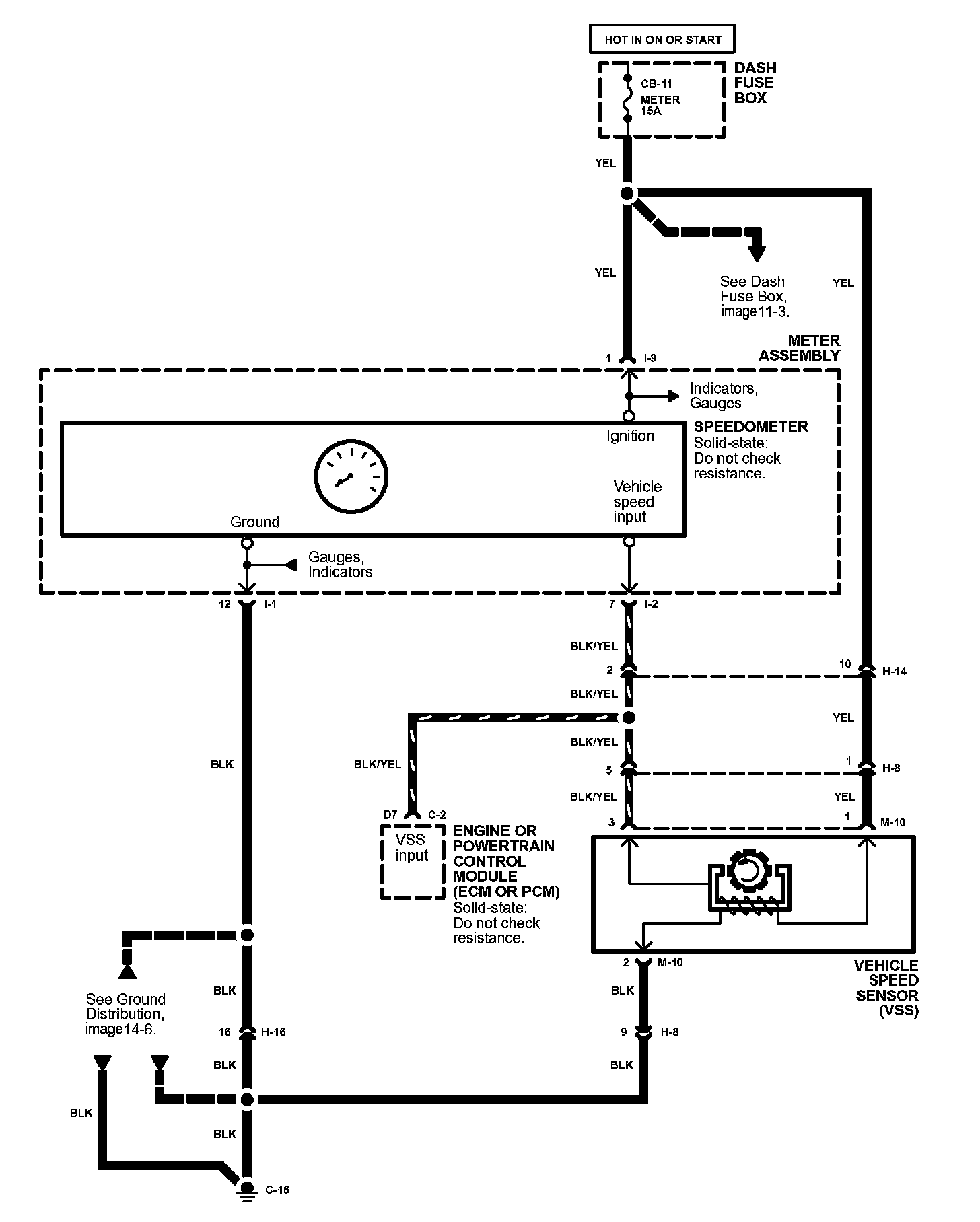

Vehicle Speed Sensor (VSS) Image 33:
