Home >> Isuzu >> 2002 >> Axiom 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Power Locks

Power Locks

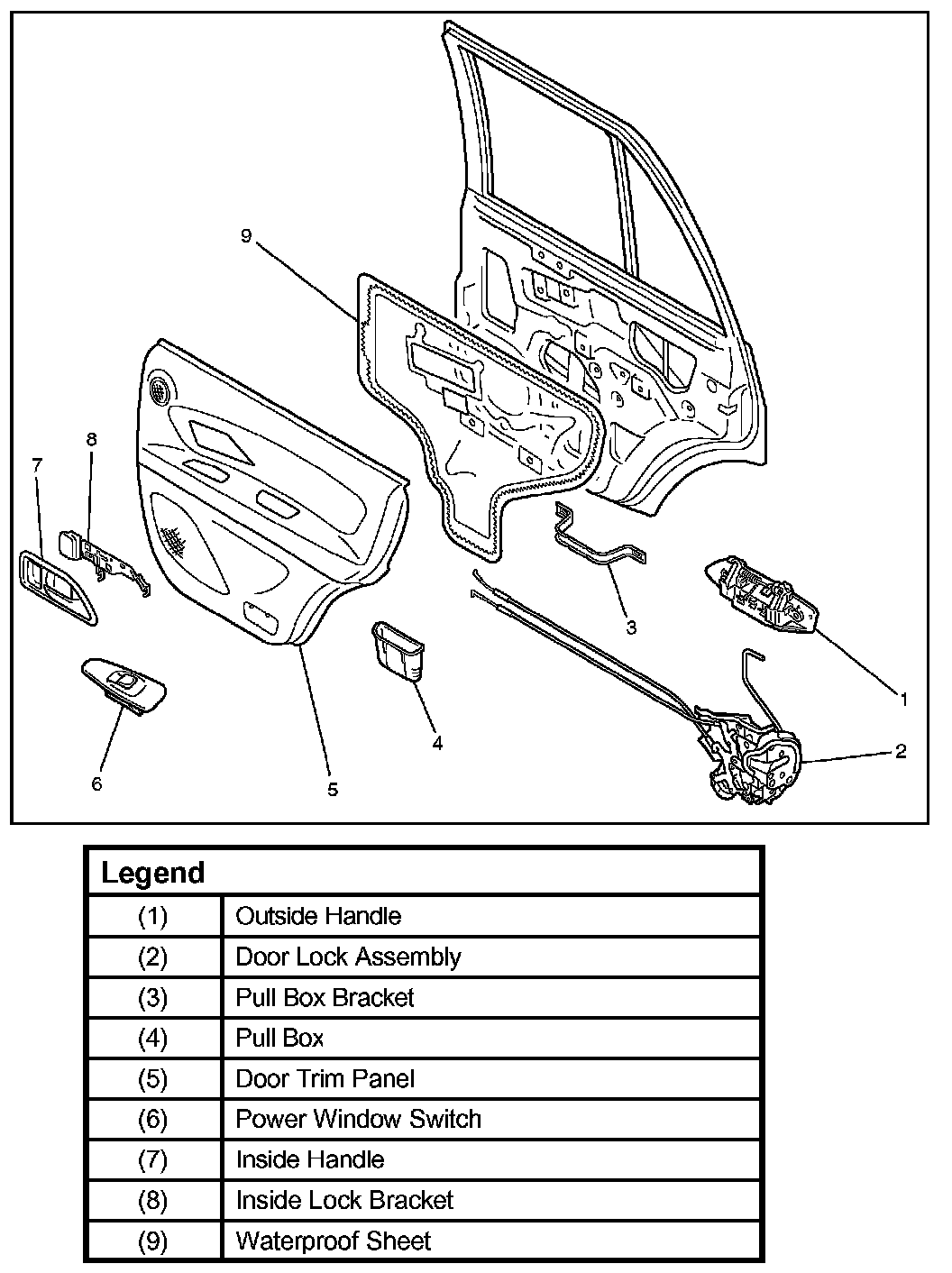

Rear Door Lock Assembly And Associated Parts:

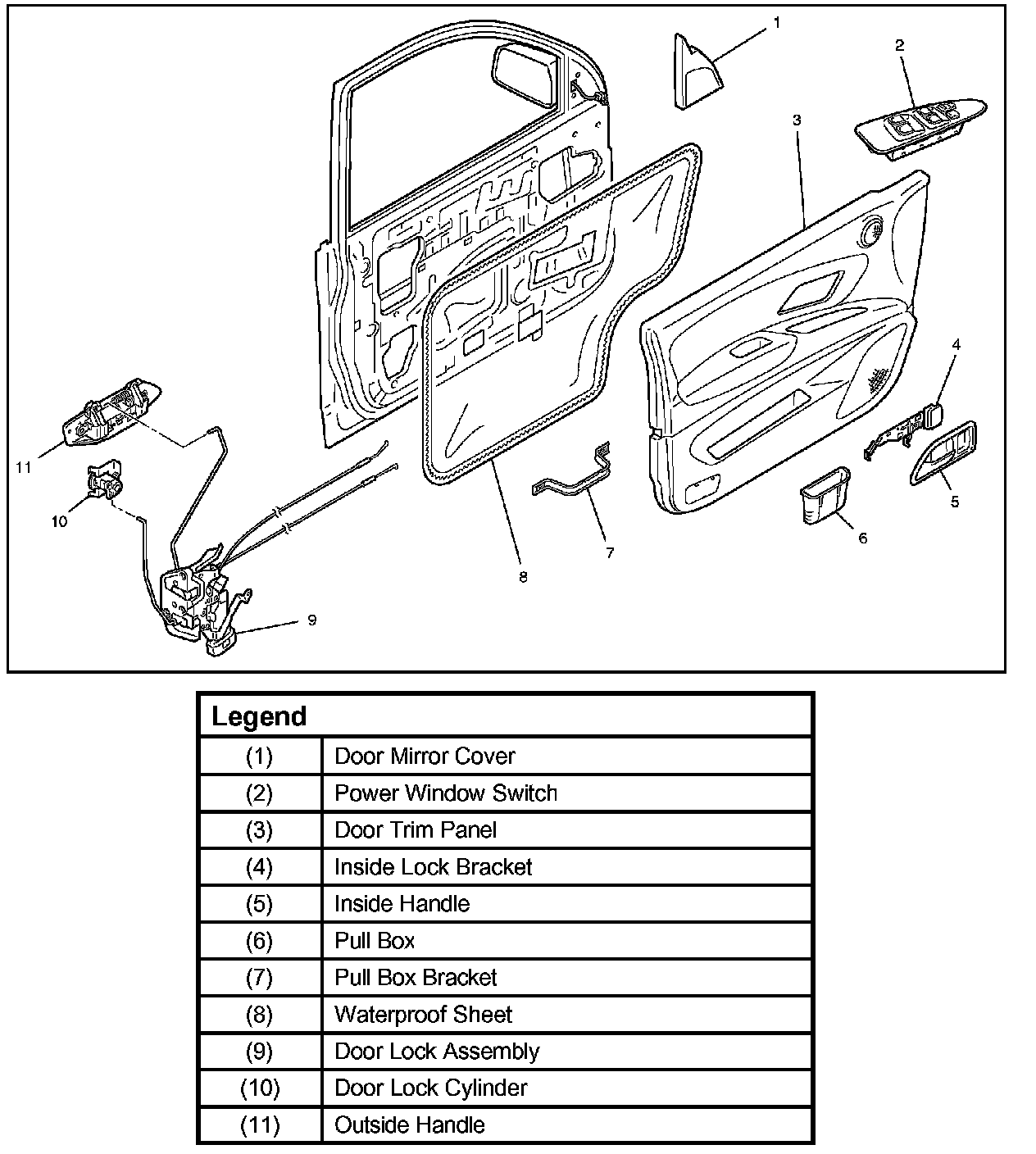

Front Door Lock Assembly And Associated Parts:
